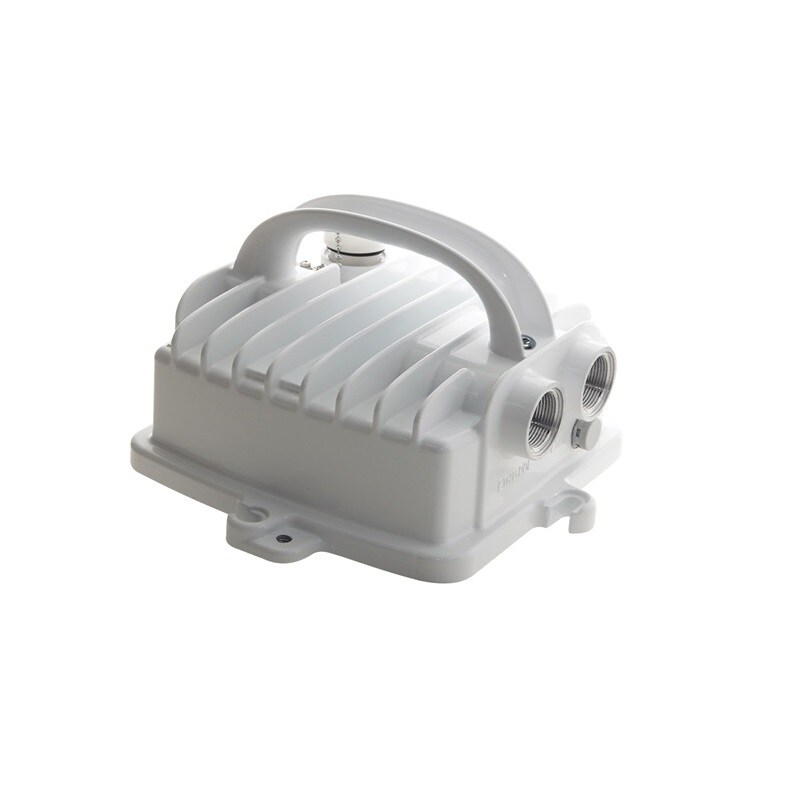

Racom 11GHz Low Band (10695-10989) Includes SW Key, Capacity up to 2Gb/s Sub Band A
- SKU: RAy3-11E-LA
$2,999.00
- Manufacturer: Racom
- Data Sheet: Download
Product Information
RAy is a high-speed p-t-p microwave link platform suitable for links in the most challenging conditions. It is used by Internet Service Providers as well as global Telco operators for both backbone and last-mile connections.
Market leader
- Exceptional reliability over distance
- The best spectral efficiency
- Solar ready 20 – 33 W
- Wifi management, Mobile App
Performance
- 1 Gb/s FDD, (2 Gb/s 11 GHz)
- 3.5 – 112 MHz channels
- QPSK – 4096QAM
- 10, 11, 17, 18, 24 GHz
Spectral efficiency
- Each piece of spectrum effectively used
- Built-in spectrum analyzer
- Ready for crowded and noisy sites
- Narrow and Asymmetric channels
Reliability
- High sensitivity, Hitless ACM and ATPC
- Surge immunity 4 kV, ESD 8 kV
- Each unit tested in climatic chamber
- MTBF > 100 years, Made in Czechia, EU
Specifications
Specifications RAy3-11E-LA
| Sub-band A | 11 GHz: 10.695 – 10.989 |
| Sub-band B | 11 GHz: 10.905 – 11.195 |
| Channels | 11 GHz: 5; 7; 10; 14; 20; 28; 30; 40; 56; 60; 80; 112 MHz Dual channel: 2x60; 2x80; 2x112 MHz |
| Duplex spacing | 11 GHz: 490 MHz (ETSI) or 530 MHz @ Sub-band A, B |
| Gross data rate | 11 GHz: 2.9 – 2026 Mb/s |
| FEC | LDPC |
| ACM | Hitless |
| RF Output power | -1 to +23 dBm (all modulations and channels) -3 to +18 dBm (Dual channel) |
| ATPC | Yes |
| MTU | 10240 B |
| Latency (RFC 2544) | <150 μs (66 B, 352 Mb/s); <200 μs (1518 B, 352 Mb/s) <100 μs (66 B, 1010 Mb/s); <150 μs (1518 B, 1010 Mb/s) |
| Synchronization | Synchronous Ethernet; PTP (transparent for IEEE-1588v2) |
| Electrical | |
| Primary power | PoE active, IEEE 802.3 bt (PoE++); PoE passive 37 – 60 VDC; DC 37 – 60 VDC; floating |
| Power consumption | Typ. 30 W for Tx < +17 dBm (w/o SFP); 33 W for Tx >= +17 dBm (w/o SFP) |
| Interfaces | |
| Ethernet | 1x 10/100/1000 Base-T Auto MDI/MDIX / RJ45 |
| SFP | 1x 10/100/1000/2500 Base-T; 1000Base-SX; 1000Base-LX (power max. 1.25 W) |
| USB | USB 2.0 / Host A |
| RSS voltage | Two contact sockets |
| Indication LED | System status (multicolor) |
| Environmental | |
| IP Code (Ingress Protection) | IP66 |
| MTBF (Mean Time Between Failure) | > 1 000 000 hours (> 114 years) |
| Operating temperature | - 30 to + 55°C (ETSI EN 300019-1-4, class 4.1.) |
| Operating humidity | 5 to 95% non-condensing |
| Surge immunity | 4 kV acc. EN 61000-4-5 |
| ESD resistance | 8 kV acc. EN 61000-4-2 |
| Mechanical | |
| Casing | Rugged die-cast aluminium |
| Size | 12 x 15 x 13 inch |
| Weight | 16 lbs |
| Mounting | FOD, direct mounting to antenna |
| Diagnostic | |
| Real time monitoring | RSS, MSE, BER |
| Diagnostic tools | Spectrum analyzer, Pinger |
| History charts | Temperature, Power voltage, RSS, MSE, BER, Data rate, RF Output power |
| Statistics | RMON counters for all interfaces |
| Antenna alignment | RSS voltage, Mobile App (RAyTools), Web |
| SNMP | v2c including configurable TRAPs |
| Security | |
| Management | Web (HTTP, HTTPS), SSH, Telnet, Mobile App (RAyTools) |
| Access accounts | 3 levels (Guest, Admin, Super) |
| Encryption | AES256, 192, 128 |
| Standards | |
| Approvals | CE (RED), FCC 101, RoHS |
