(6) Stability optimized (stronger) FEC
Racom RAy3-24E-L (1000)
- SKU: RAy3-24E-L (1000)
$2,199.00 $2,299.00
+ $388.85 Tariff
- Manufacturer: Racom
- Data Sheet: Download
Product Information

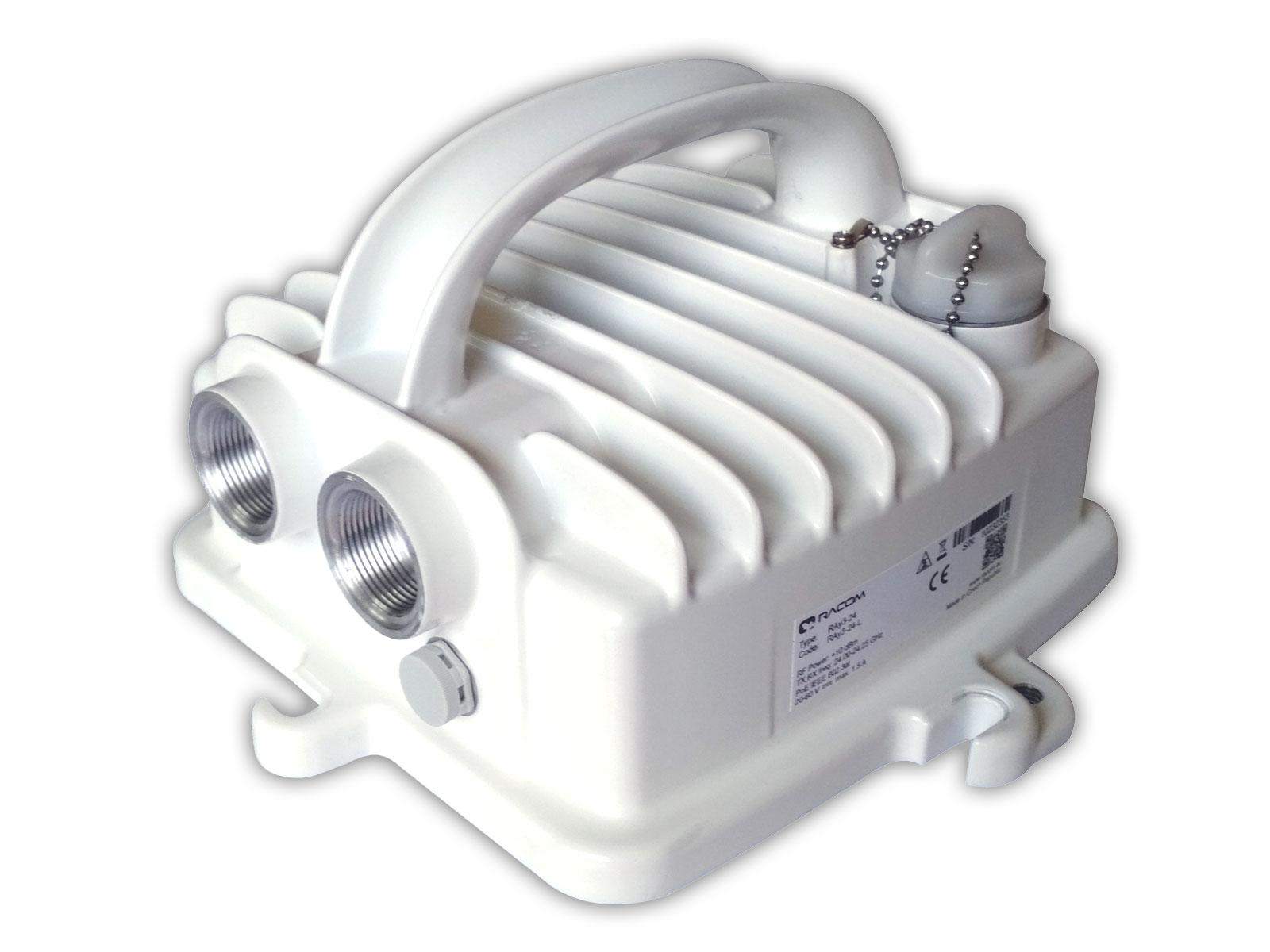

Racom RAy3 IPLINK 24GHz, Lower Part
Specifications
| Radio parameters | RAy3 | ||
| Frequency range | 17.10 – 17.30 GHz; 24.00 – 24.25 GHz | ||
| Channel spacing | 3.5, 5, 7, 10, 14, 20, 28, 40, 56, 80, 100, 112 MHz | ||
| Channel duplex spacing | Flexible, min.18 MHz between channel edges | ||
| Gross data rate | 2.7 – 1002 Mbps | ||
| FEC | LDPC, RS | ||
| Data speed / Sensitivity – detail | |||
| Modulation | 3.5 MHz | 56 MHz | 112 MHz |
| QPSK_S(6) | 2.7 Mbps / -99.0 dBm | 48 Mbps / -88.0 dBm | 97 Mbps / -85.0 dBm |
| QPSK | 5.0 Mbps / -94.5 dBm | 81 Mbps / -84.5 dBm | 161 Mbps / -81.5 dBm |
| 16 QAM | 9.5 Mbps / -88.5 dBm | 168 Mbps / -77.5 dBm | 334 Mbps / -74.5 dBm |
| 32 QAM | 11 Mbps / -85.0 dBm | 213 Mbps / -73.5 dBm | 426 Mbps / -70.5 dBm |
| 64 QAM | 15 Mbps / -82.0 dBm | 267 Mbps / -70.5 dBm | 536 Mbps / -67.5 dBm |
| 128 QAM | 17 Mbps / -79.0 dBm | 319 Mbps / -67.5 dBm | 636 Mbps / -64.5 dBm |
| 256 QAM | 19 Mbps / -76.0 dBm | 366 Mbps / -64.5 dBm | 730 Mbps / -61.5 dBm |
| 512 QAM | 22 Mbps / -73.0 dBm | 413 Mbps / -61.5 dBm | 823 Mbps / -58.5 dBm |
| 1024 QAM | 23 Mbps / -69.5 dBm | 459 Mbps / -58.5 dBm | 918 Mbps / -55.5 dBm |
| 2048 QAM (7 – 112 MHz) | – | 501 Mbps / -55.5 dBm | 1002 Mbps / -52.5 dBm |
| 4096 QAM (14 – 56 MHz) | – | 540 Mbps / -52.5 dBm | – |
| ACM | Hitless | ||
| RF Output power | -30 to +10 dBm | ||
| ATPC | Yes | ||
| MTU | 10240 bytes | ||
| Latency (RFC 2544) | 268 µs (64B/366 Mbps); 313 µs (1518 B/366 Mbps) 173 µs (64B/1002 Mbps); 198 µs (1518 B/1002 Mbps) | ||
| Synchronization | Synchronous Ethernet; 1588v2 transparent clock | ||
| Electrical | |||
| Primary power | PoE active 37 – 60 VDC, IEEE 802.3at; PoE passive 20 – 60 VDC; DC 20 – 60 VDC; floating | ||
| Power consumption | typ. 22.5 W (w/o SFP) | ||
| Interfaces | |||
| Ethernet | 1× 10/100/1000 Base-T Auto MDI/MDIX / RJ45 | ||
| SFP | 1× 10/100/1000 Base-T/1000Base-SX/1000Base-LX (power max. 1.25 W) | ||
| USB | USB 2.0 / Host A | ||
| RSS voltage | Two contact sockets | ||
| Indication LED | SYS | ||
| Environmental | |||
| IP Code (Ingress Protection) | IP66 | ||
| MTBF (Mean Time Between Failure) | > 750.000 hours (> 85 years) | ||
| Operating temperature | -30 to + 55°C (ETSI EN 300019-1-4, class 4.1.) | ||
| Operating humidity | 5 to 95% non-condensing | ||
| Surge immunity | 4 kV acc. EN 61000-4-5 | ||
| ESD resistance | 8 kV acc. EN 61000-4-2 | ||
| Mechanical | |||
| Casing | Rugged die-cast aluminium | ||
| Size | 160 H x 245 W x 245 D mm (6.3 x 9.6 x 9.6 in) | ||
| Weight | 2.6 kg (5.7 lbs) | ||
| Mounting | FOD, direct mounting to antenna | ||
| Diagnostic | |||
| Real time monitoring | RSS, MSE, BER | ||
| Diagnostic tools | Spectrum analyzer, Pinger, Constellation diagram | ||
| History charts | Temperature, Power voltage, RSS, MSE, BER, Data rate, RF Output power | ||
| Statistics | RMON counters for all interfaces | ||
| Antenna alignment | RSS voltage, RAy Tools, web | ||
| SNMP | v2c including configurable TRAPs | ||
| Security | |||
| Management | HTTP, HTTPS, SSH, Telnet, RAyTools App | ||
| Access accounts | 3 levels (Guest, Admin, Super) | ||
| Encryption | AES256, 192, 128 | ||
| Standards | |||
| Approvals | 17 GHz CE (RED), RoHS 24 GHz CE (RED), FCC, RoHS | ||
