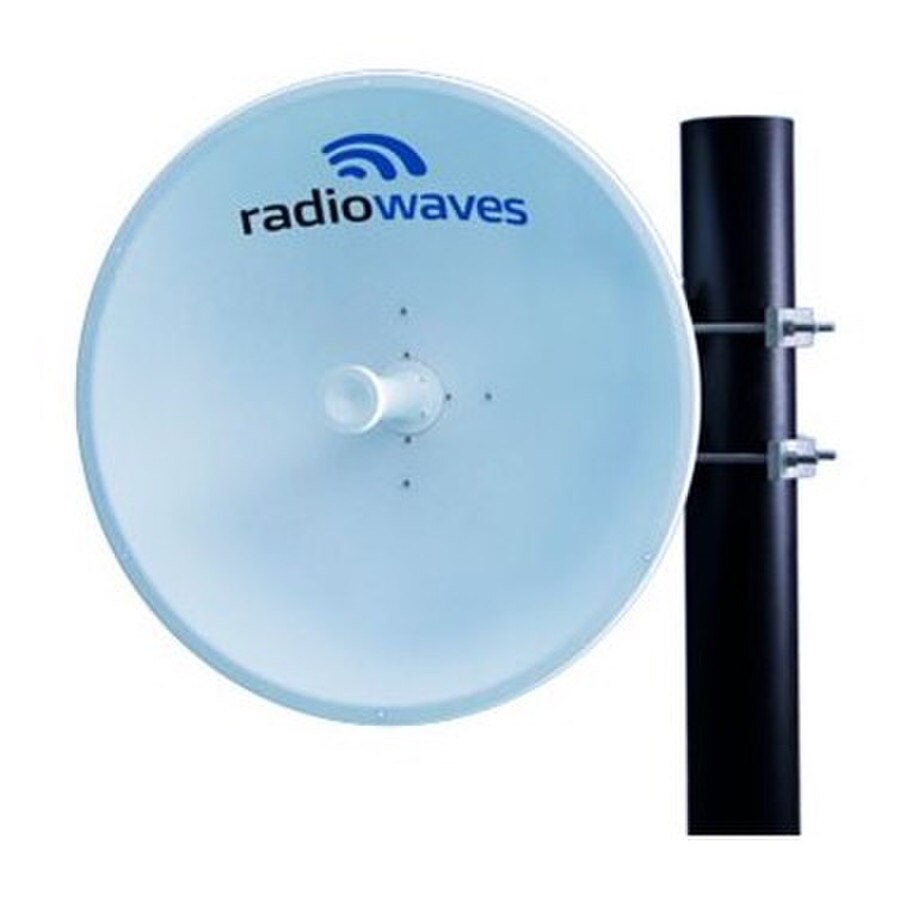

Radio Waves Standard Performance, 2' (0.6M) Parabolic Reflector, 5.725 - 7.125 GHz, Dual Polarized Antenna
- SKU: SPD2-6NS
$887.25
+ $165.92 Tariff
- Manufacturer: Radio Waves Inc
- Data Sheet: Download
Product Information
Standard Performance, 2' (0.6M) Parabolic Reflector, 5.725 - 7.125 GHz, Dual Polarized Antenna
The SP Standard Performance Series by RadioWaves offers a full line of cost effective standard performance parabolic antennas engineered to deliver reliable radio links. Designed for both unlicensed and licensed band applications, RadioWaves field-proven pre-assembled SP antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance. If it’s rugged, it must be RadioWaves!
Features:
- Standard Performance Parabolic Antennas – Excellent performance for a wide range of licensed and unlicensed applications
- Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality
Specifications
Specifications SPD2-6NS
| Antenna Type | Standard Performance Parabolic Reflector Antenna |
| Size, nominal | 2 ft | 0.6 m |
| Polarization | Dual |
| Standard RF Connector Type | CPR137G |
| Standard RF Connector Suffix | RS (append suffix to model number) |
| Electrical | |
| Operating Frequency Band | 5.725 - 7.125 GHz |
| Half Power Beamwidth, Horizontal | 5.4 degrees |
| Half Power Beamwidth, Vertical | 5.4 degrees |
| Cross-Polarization Discrimination | 28 dB |
| Front to Back Ratio (F/B) | 37 dB |
| Gain, Low Frequency | 29.2 dBi |
| Gain, Mid Frequency | 30.5 dBi |
| Gain, High Frequency | 30.8 dBi |
| VSWR | 1.37:1 |
| Return Loss | -16.1 dB |
| Mechanical | |
| Fine Azimuth Adjustment | +/- 10 degrees |
| Fine Elevation Adjustment | +/- 30 degrees |
| Mounting Pipe Diameter, Min | 2 inch | 5.08 cm |
| Mounting Pipe Diameter, Max | 4.5 inch | 11.4 cm |
| Net Weight | 22 lbs | 9.9 kg |
| Wind Velocity Operational | 90 mph | 145 km/h |
| Wind Velocity Survival Rating | 125 mph | 201 km/h |
| Mechanical Configuration | SP2 |
| Axial Force (FA) | 222 lbs | 988 N |
| Side Force (FS) | 14 lbs | 62 N |
| Twisting Moment (MT) | 225 ft-lbs | 305 Nm |
| Operating Temperature Range | -40 to +60 C |
| Max Pressure, PSIG, (if waveguide interface) | 5 |
| ETSI | 302217 R1 C1 |
| RoHS-compliant | Yes |
| Dimension | 25" x 8" x 28" inch |
| Gross Weight | 28lbs |
