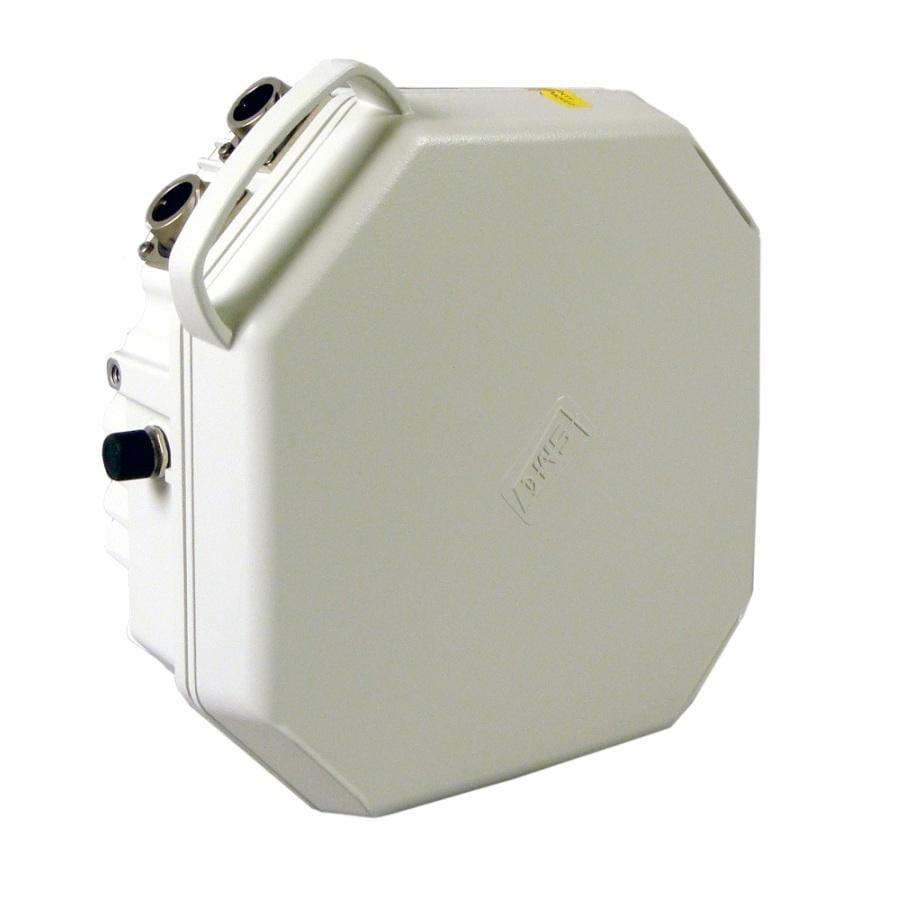

SIAE Microelettronica ALFOPlus 24GHz, 100 Mbps Full Duplex Capacity, Software Upgradeable To 400 Mbps, Low Band ODU, 1 Year Warranty

ISP Supplies supplies the SIAE Microelettronica ALFOPlus 24GHz, featuring 100 Mbps full duplex capacity with software upgradeable to 400 Mbps. This low band ODU operates in Sub Band 1 (24050 - 24106 MHz / 24194 - 24250 MHz), has 1+0 software, BPSK to 1024QAM modulation, 1x electrical GbE port, 1x optical GbE port, and comes with a 1 year warranty.



High Capacity IP Ethernet Full Outdoor

ALFOplus is a Full-Outdoor, full IP Next Generation Microwave Radio. Its zero-footprint solution allows for fast rollouts of LTE full IP backhaul networks. Ideal for a fast and flexible evolution toward full IP networks, it offers best in class performance and the lowest power consumption for a green but performing network.



ALFOplus combines compactness, best in class performance, and lowest power consumption in a single efficient and cost-effective full-outdoor device. It offers up to 1Gbps transport capacity also liaising over higher modulation schemes of 1024 QAM. ALFOplus is optimized for TCP/IP transport compliant with LTE traffic needs including packet synchronization techniques.



Main Features

• 4 QAM to 1024 QAM modulation

• Hitless Adaptive Code Modulation

• MultiLayer Header Compression

• 1 Gbits throughput radio

• Best in Class for SystemGain

• FCC/ETSI Channels supported

• Advanced Pure IP engine

• CISCO Microwave Adaptive Bandwidth feature interworking

• Synchronous Ethernet support

• IEEE 1588 v2 support

• Extended buffer for TCP/IP efficiency in LTE networks

• Optical or Electrical port options

• Lowest power consumption

• Integrated antennas up to 1.8m (6ft)

• Network Management System: NMS5

• SDN Microwave Domain Controller: SM-DC



Layer 2 Main Functionalities

• MEF-9 and MEF-14 compliant

• 8 queues with flexible scheduler (Strict WFQ and mixed)

• Flexible QoS definition based on VLAN, IPv4, IPv6, MPLS exp bits

• Per queue WRED congestion avoidance

• Flow Based Ingress Policing CIR & EIR definition)

• Flow Control IEEE 802.3x

• RMON Statistic management

• VLAN/VLAN Stacking (IEEE 802.1q with QinQ)

• Link Aggregation IEEE 802.3ad

• ETH OAM IEEE 802.1ag/ITU-T Y 1731

• Jumbo Frames up to 10 Kbytes



Typical Applications

• Any-G Mobile Backhaul for Access and aggregation

• ISP High Capacity LAN to LAN connections

• Last Mile fiber extension for business customers

• Emergency wireless links

• Complementary solution to fiber deploy

• Zero footprint applications
