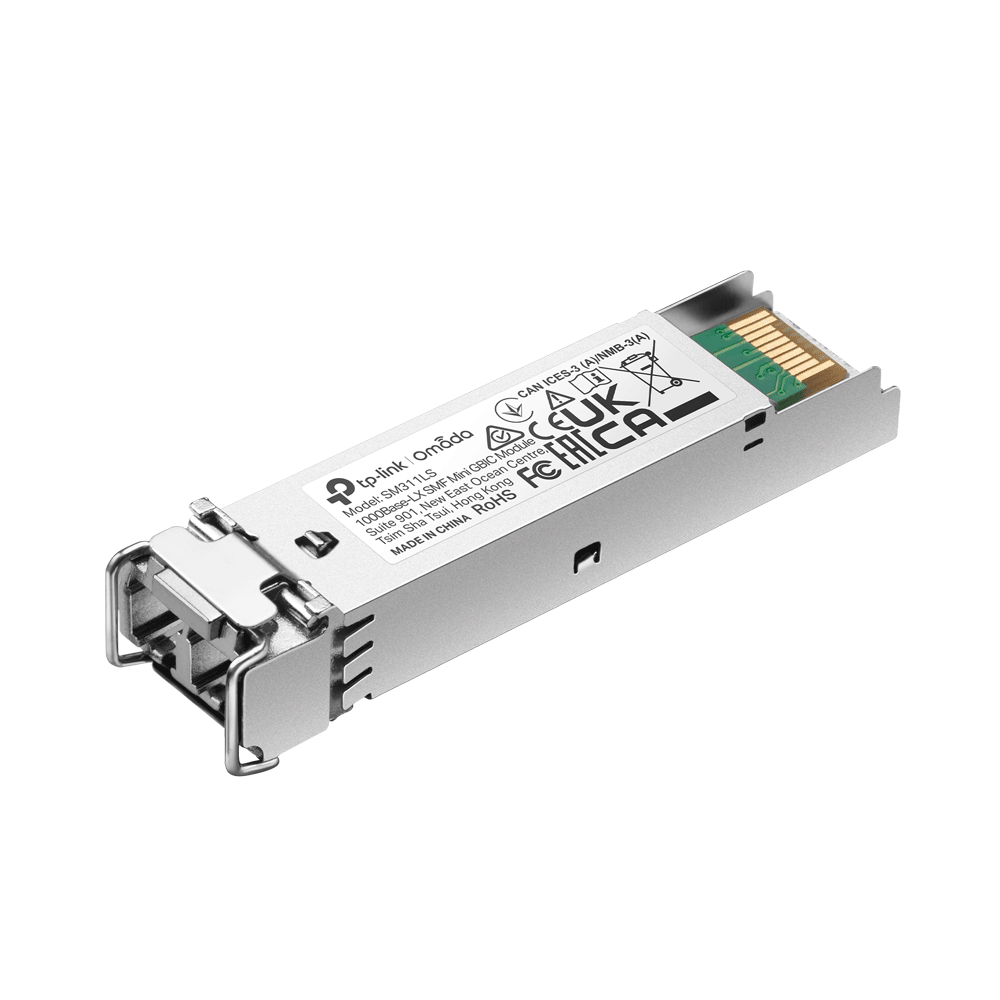

TP-Link Omada Gigabit Single-Mode SFP Module,Up to 10 km Distance
- SKU: SM311LS
$19.99
- Manufacturer: TP-Link
- Installation Guide: Download
Product Information
Omada Gigabit Single-Mode SFP Module,Up to 10 km Distance
What This Product Does
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Features:
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Specifications
Specifications SM311LS
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 1310nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Single-mode Fiber |
| Fiber Type | 9/125 μm Single-mode |
| Max. Cable Length | 10km |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
