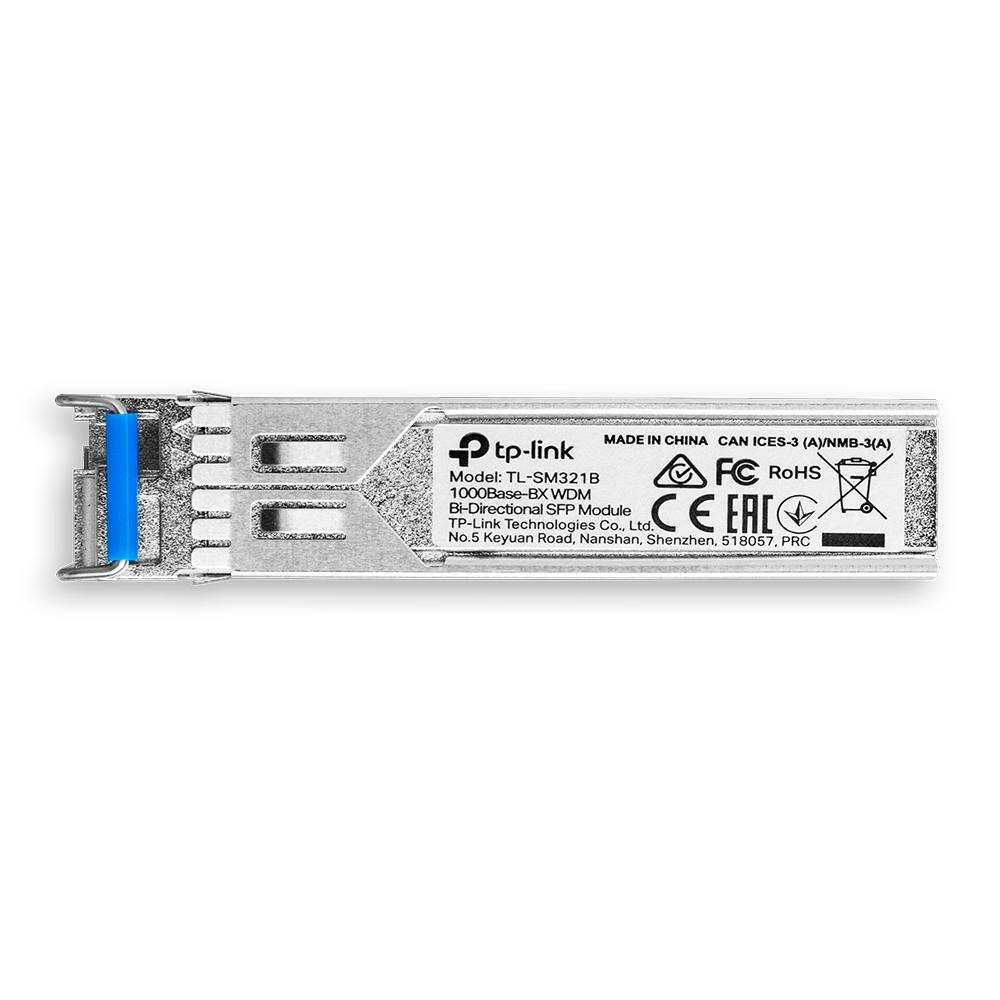

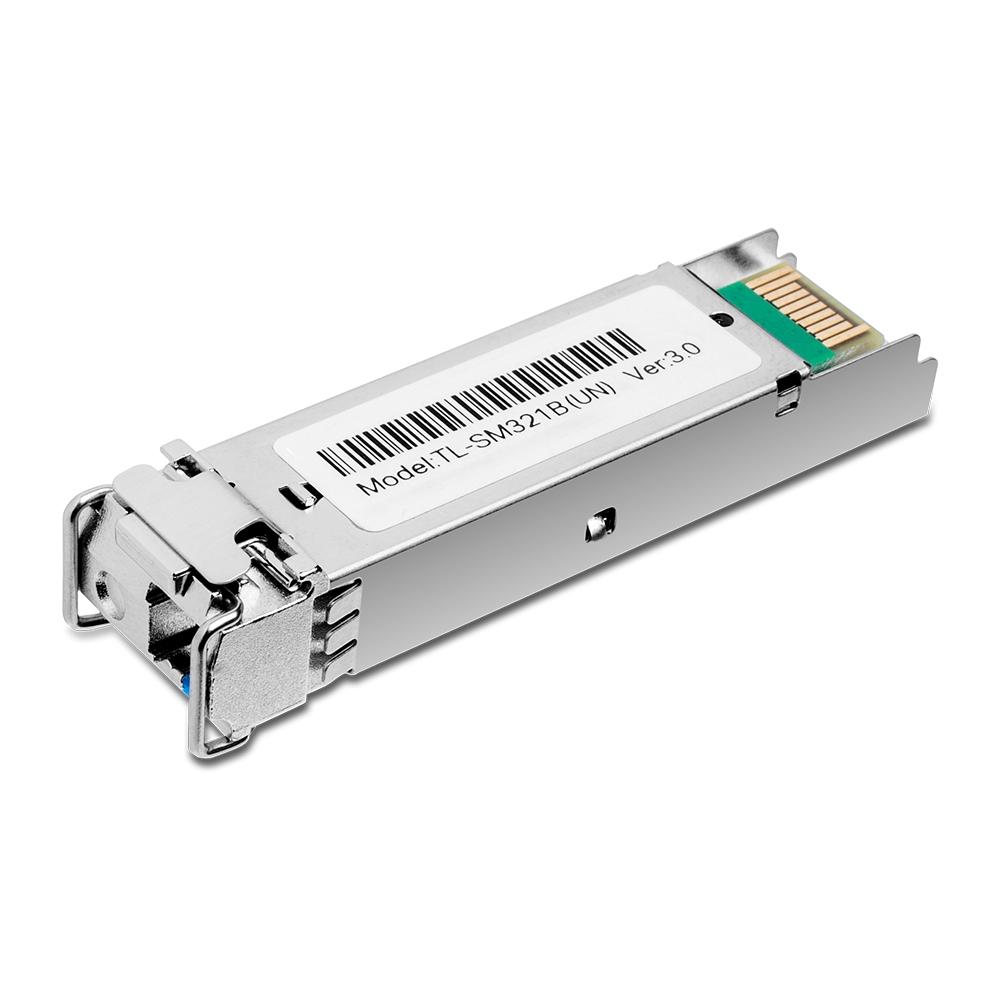

TP-Link 1000Base-BX WDM Bi-Directional SFP Module
- SKU: SM321B
$20.99
Product Information
1000Base-BX WDM Bi-Directional SFP Module
What This Product Does
TP-Link´s TL-SM321B adopts the latest standard 1000Base-BX, transmitting over one single-mode fiber with one different wavelength going in each direction. Paired with TL-SM321A, You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters for reliable high-speed long-distance communication.
Features:
- Up to 20 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A as a pair
Specifications
Specifications TL-SM321B
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1310 nm RX: 1550 nm |
| Dimensions ( W x D x H )Dimensions ( W x D x H ) | 2.2*0.6*0.5 in (55.4*14.6*12.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Single-mode Fiber |
| Fiber Type | 9/125 μm Single-mode |
| Max. Cable Length | 20km |
| Data Rate | 1.25Gbps |
| Port Type | LC Simplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
