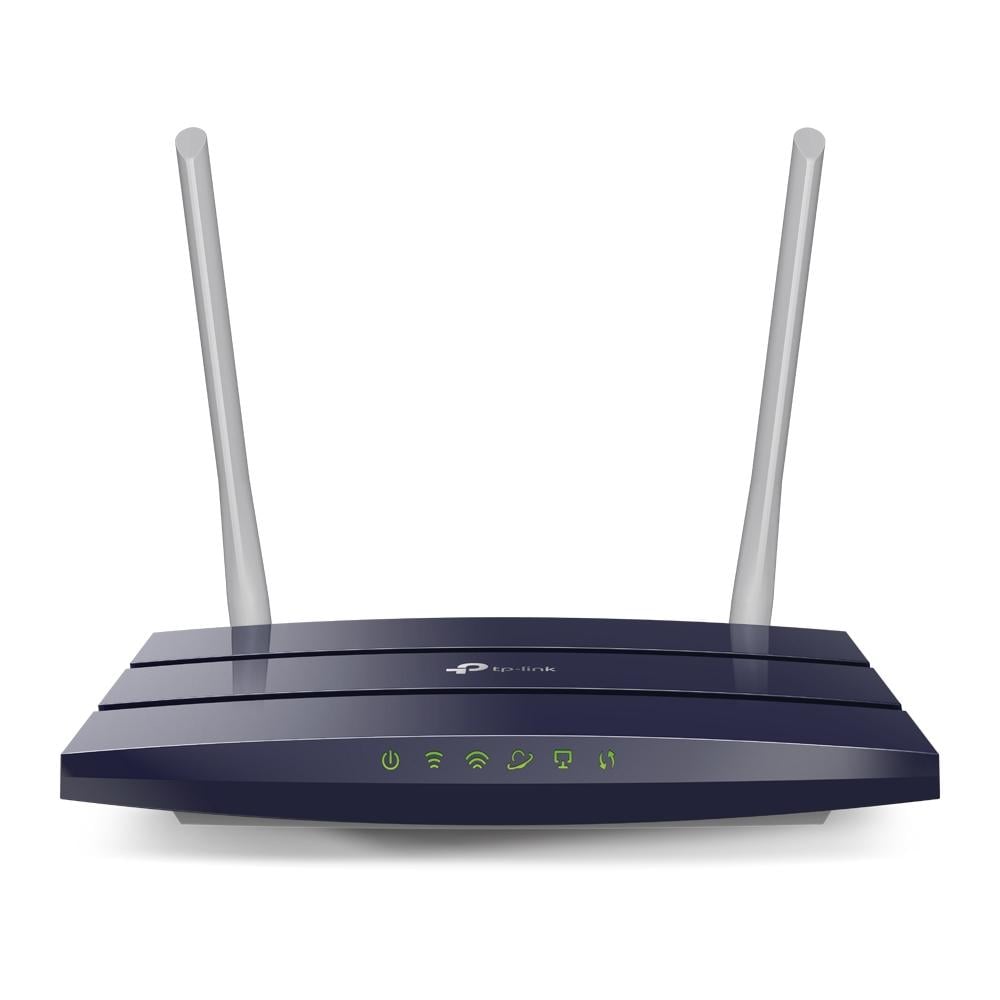

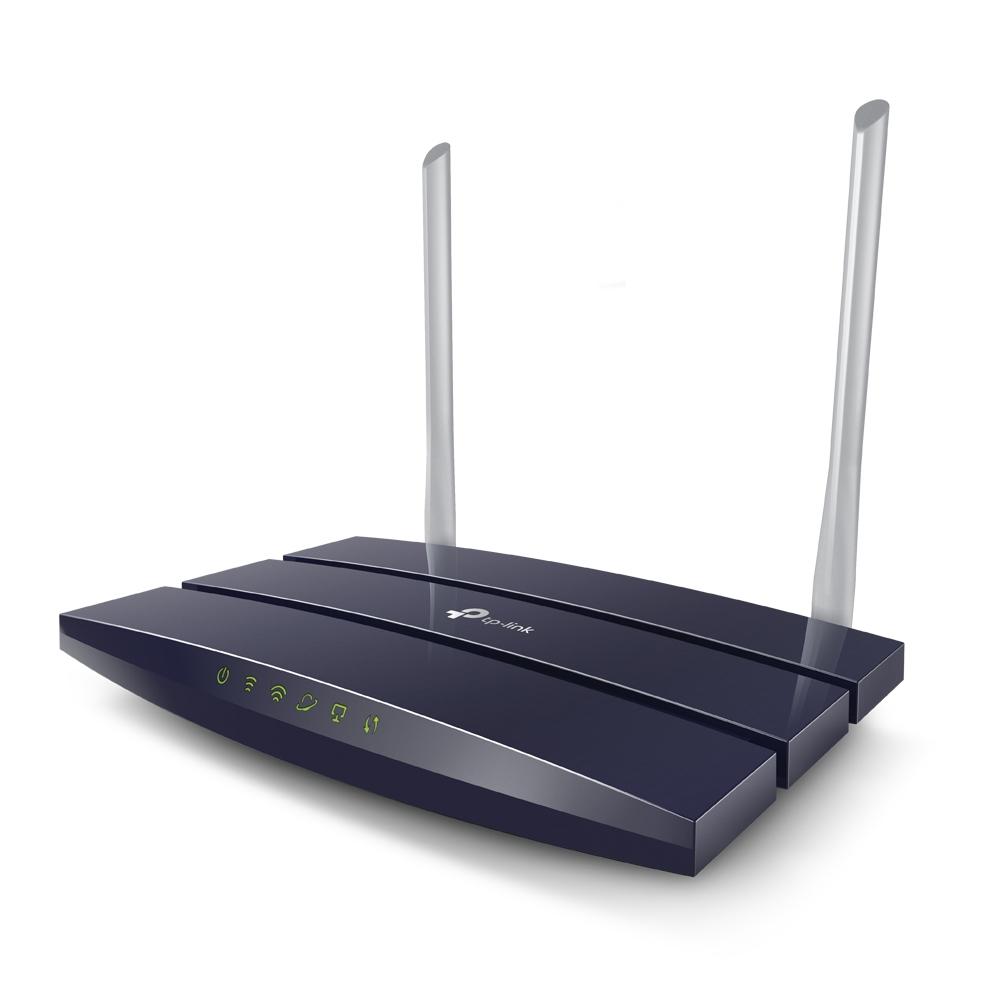

TP-Link Archer A54 AC1200 Dual-Band Wi-Fi Router
- SKU: Archer A54
$34.99
Product Information
Archer A54 AC1200 Wireless Dual Band Router
The Archer A54 offers connections up to 3x faster than Wireless N, thanks to its Wireless AC technology. It delivers 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, making it ideal for smooth HD streaming, online gaming, and other high-bandwidth activities.
Featuring four external antennas, the Archer A54 enhances network strength and reliability throughout your home. Its beamforming technology directs the Wi-Fi signal toward your devices for improved range and performance.
Product Features- Support smooth HD streaming with AC1200 Wi-Fi
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
- Wi-Fi Router Archer A54
- Power Adapter
- RJ45 Ethernet Cable
- Installation Guide
Specifications
Specifications Archer A54
| HARDWARE FEATURES | |

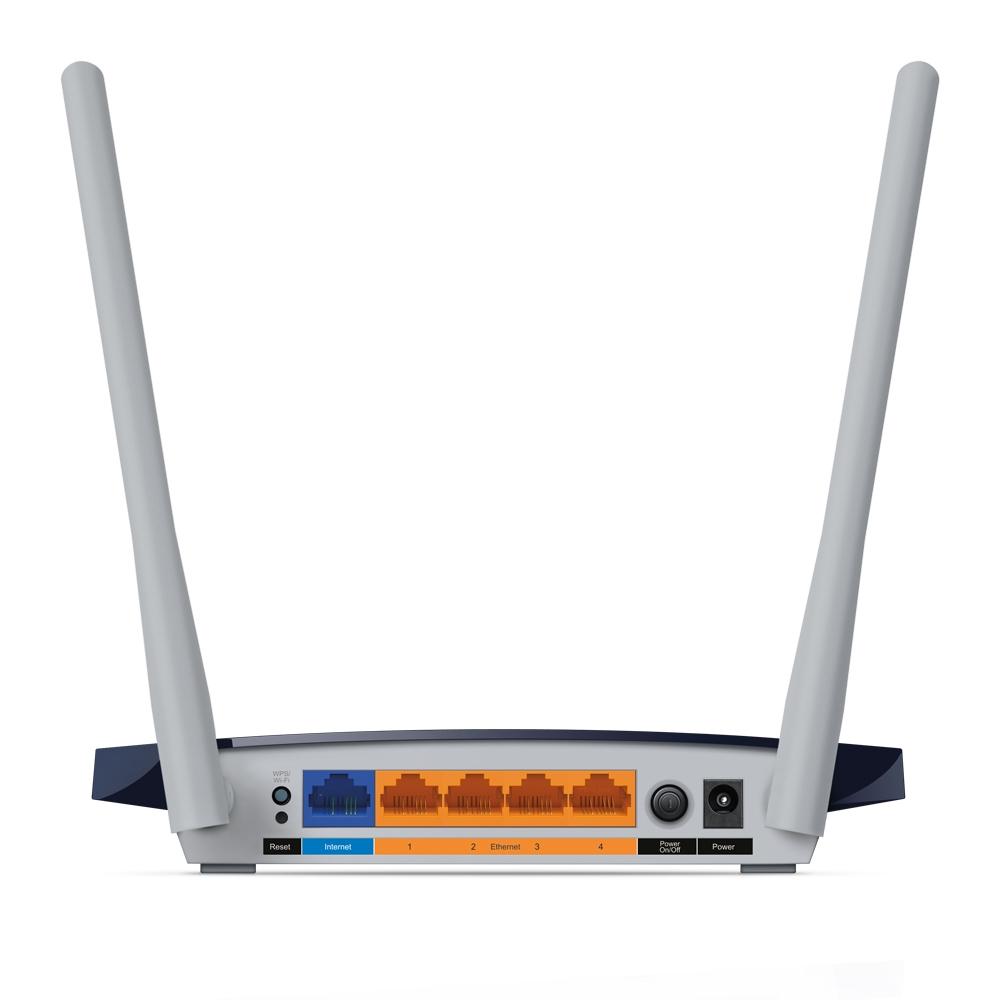

| Interface | 4 10/100 Mbps LAN Ports 1 10/100 Mbps WAN Port |
| Button | Reset Button WPS/Wi-Fi On/Off Button Power On/Off Button |
| External Power Supply | 12V DC / 1A |
| Dimensions ( W x D x H ) | 7.2 x 4.9 x 1.3 in. (182.95 x 123.5 x 32.1 mm) |
| Antenna Type | 2 external antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b 2.4GHz IEEE 802.11ac/n/a 5GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps 5 GHz: Up to 867 Mbps |
| Reception Sensitivity | 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71d |
| Transmit Power | FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ BigPond/ /L2TP(Dual Access) /PPTP(Dual Access) |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz guest network × 1 5 GHz guest network × 1 |
| OTHERS | |
| Certification | FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
