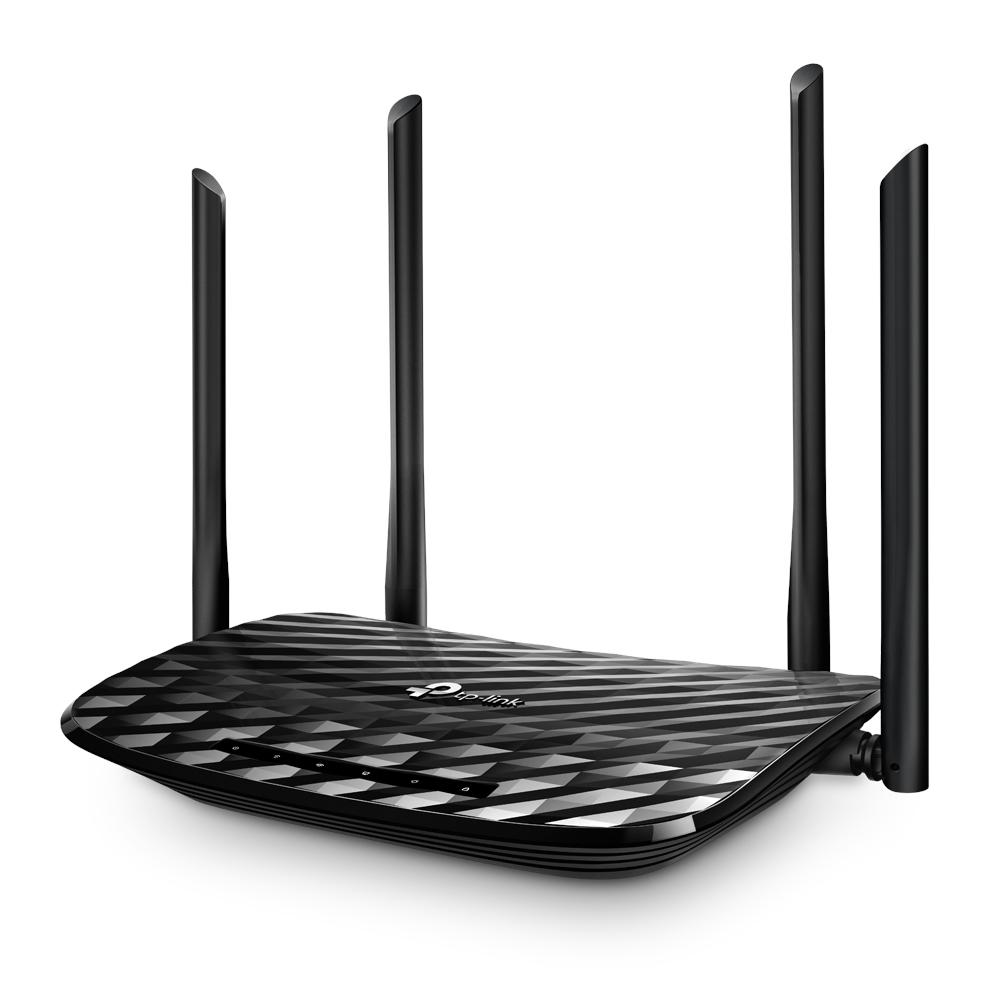

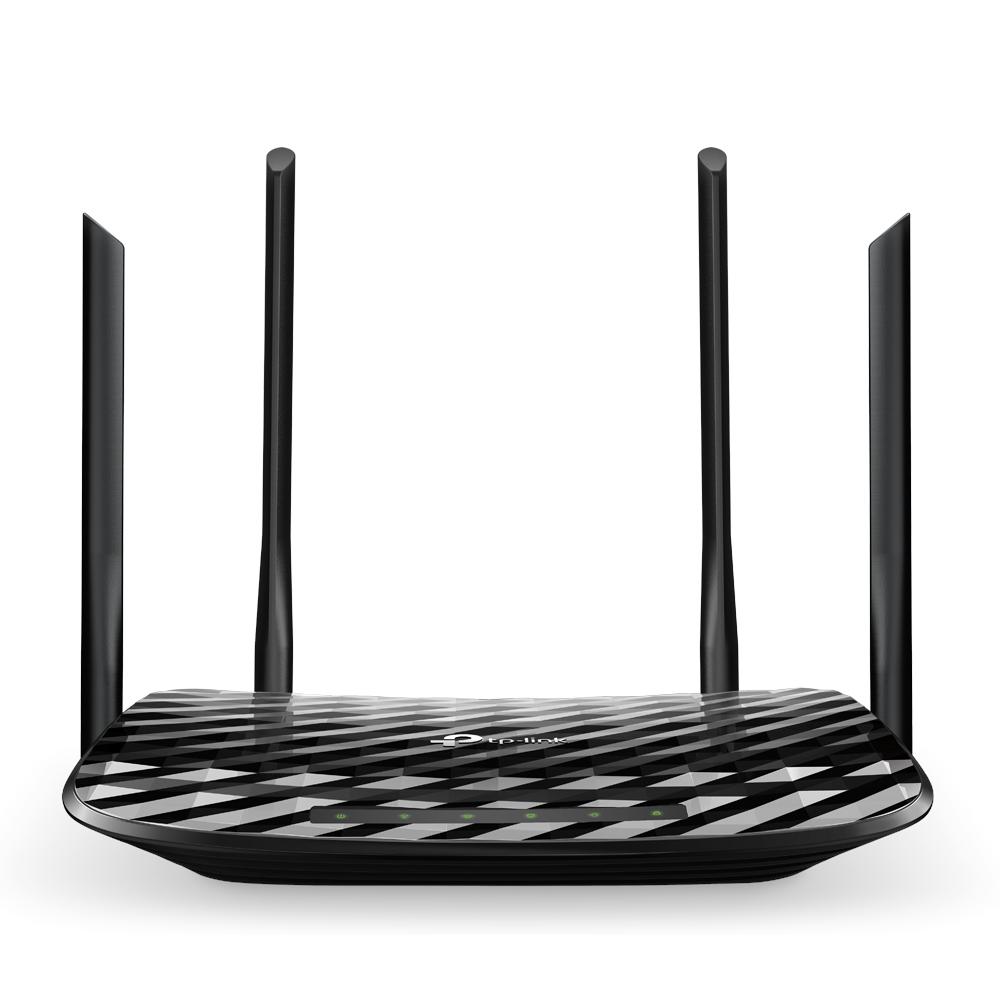

TP-Link Archer A6 AC1200 Wireless MU-MIMO Router
- SKU: Archer A6
Product Information
Archer A6 AC1200 Wireless MU-MIMO Gigabit Router
The Archer A6 provides a fast and dependable network with 802.11ac Wi-Fi technology. It offers speeds of up to 400Mbps on the 2.4GHz band for everyday activities like emailing and browsing, and up to 867Mbps on the 5GHz band, perfect for HD streaming and smooth online gaming.
Its four external antennas ensure comprehensive Wi-Fi coverage throughout your home, whether you're on the sofa or the balcony. Beamforming technology focuses the Wi-Fi signal towards connected devices, enhancing range and performance even for distant or weak devices.
With MU-MIMO, the Archer A6 efficiently handles multiple devices simultaneously, reducing bandwidth congestion and latency. It also features one Gigabit WAN port and four Gigabit LAN ports for speeds up to 10x faster than standard Ethernet, offering impressive performance for wired connections.
Product Features- AC1200 Dual-Band Wi-Fi - 867Mbps at 5GHz and 400Mbps at 2.4GHz band
- MU-MIMO Technology - Simultaneously transfers data to multiple devices for 2x faster performance
- Boosted Coverage - Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Access Point Mode - Supports AP Mode to transform your wired connection into the wireless network
- Easy Setup - Set up your Wi-Fi in minutes with the TP-Link Tether app.
- Wi-Fi Router Archer A6
- Power Adapter
- RJ45 Ethernet Cable
- Installation Guide
Specifications
Specifications Archer A6
| Hardware | |
| Ethernet Ports | 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port |
| Buttons | Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button |
| Antennas | 4 Fixed External Antennas + 1 Internal Antenna |
| External Power Supply | 12V/1A |
| Dimensions (W x D x H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Software | |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Server | PPTP VPN, OpenVPN |
| Access Control | Parental Controls, Local Management Control, Host List,White List, Black List |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Management | Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz Guest Network, 5GHz Guest Network |
| Wireless | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Transmit Power | FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz) |
| Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； |
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Schedule |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| Others | |
| Certification | FCC, RoHS |
| Environment Operating Temperature | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
