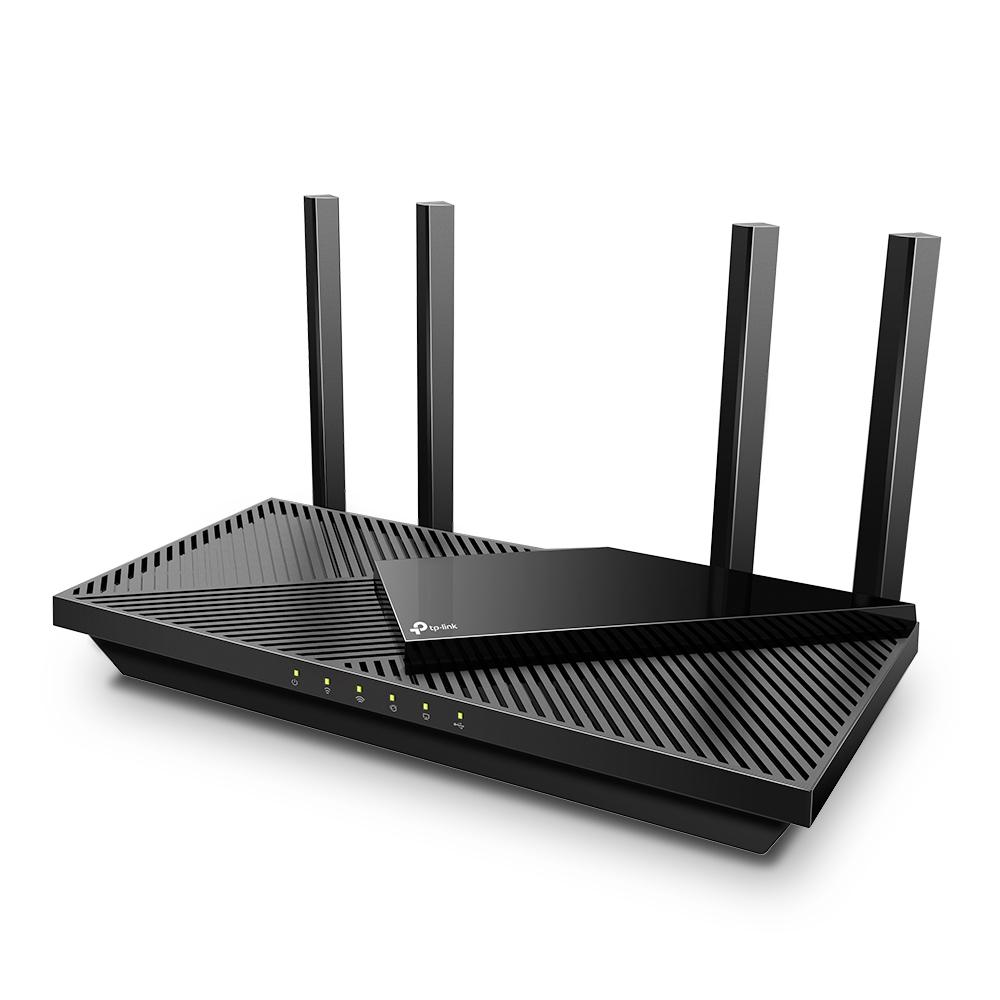

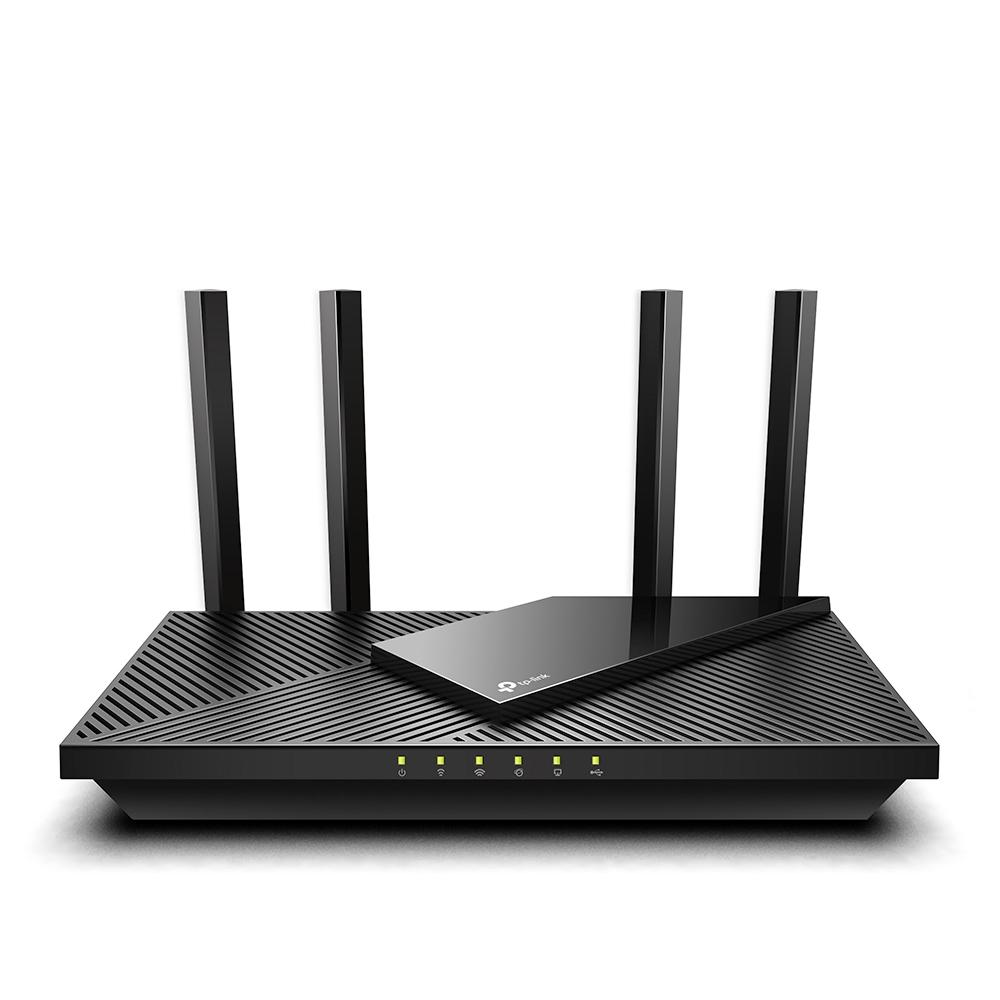

TP-Link AX1500 Wi-Fi 6 Router
- SKU: Archer AX55
$119.99
Product Information
AX3000 Dual-Band Wi-Fi 6 Router SPEED: 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz SPEC: 4× Antennas, 1× Gigabit WAN Port + 4× Gigabit LAN Ports, USB 3.0 Port, 1024-QAM, OFDMA, HE160 FEATURE: Tether App, WPA3, Access Point Mode, IPv6 Supported, IPTV, Beamforming, Smart Connect, Airtime Fairness, VPN Server, DFS, Cloud Support, HomeShield, Onemesh
Specifications
Specifications
| Hardware | |
| Antennas | 4× High-Performance Antennas |
| Ethernet Ports | 1× Gigabit WAN Port + 4 × Gigabit LAN Ports |
| USB Ports | 1× USB 3.0 Port |
| Dimensions | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Wireless | |
| Wireless | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz), compatible with 11a/b/g/n/ac Wi-Fi standards |
| Frequency | 2.4 GHz and 5 GHz |
| Transmit Power | CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) FCC: <30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) |
| Reception Sensitivity | 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm |
| Wireless Function | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
| Software | |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| Access Control | Parental Controls, Local Management Control, Host List, White List, Black List |
| Firewall Security | SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| USB Sharing | Supports Samba(Storage)/FTP Server/Media Server |
| Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Server | OpenVPN, PPTP VPN |
| Others | |
| Certification | FCC, CE, RoHS |
| System Requirements | nternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
