TP-Link AX3000 Dual-Band Wi-Fi 6 Router
- SKU: ARCHER AXE300
- Manufacturer: TP-Link
Product Information
Specifications
Specifications
| WIRELESS | |
| Standards | • IEEE 802.11ax 6 GHz, • IEEE 802.11ax/ac/n/a 5 GHz, • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AXE16000 • 6 GHz: 4804 Mbps (802.11ax) • 5 GHz-1: 4804 Mbps (802.11ax) • 5 GHz-2: 4804 Mbps (802.11ax) • 2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas |
| WiFi Capacity | Very High Quad-Band |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE | |
| Processor | 2.0 GHz Quad-Core CPU |

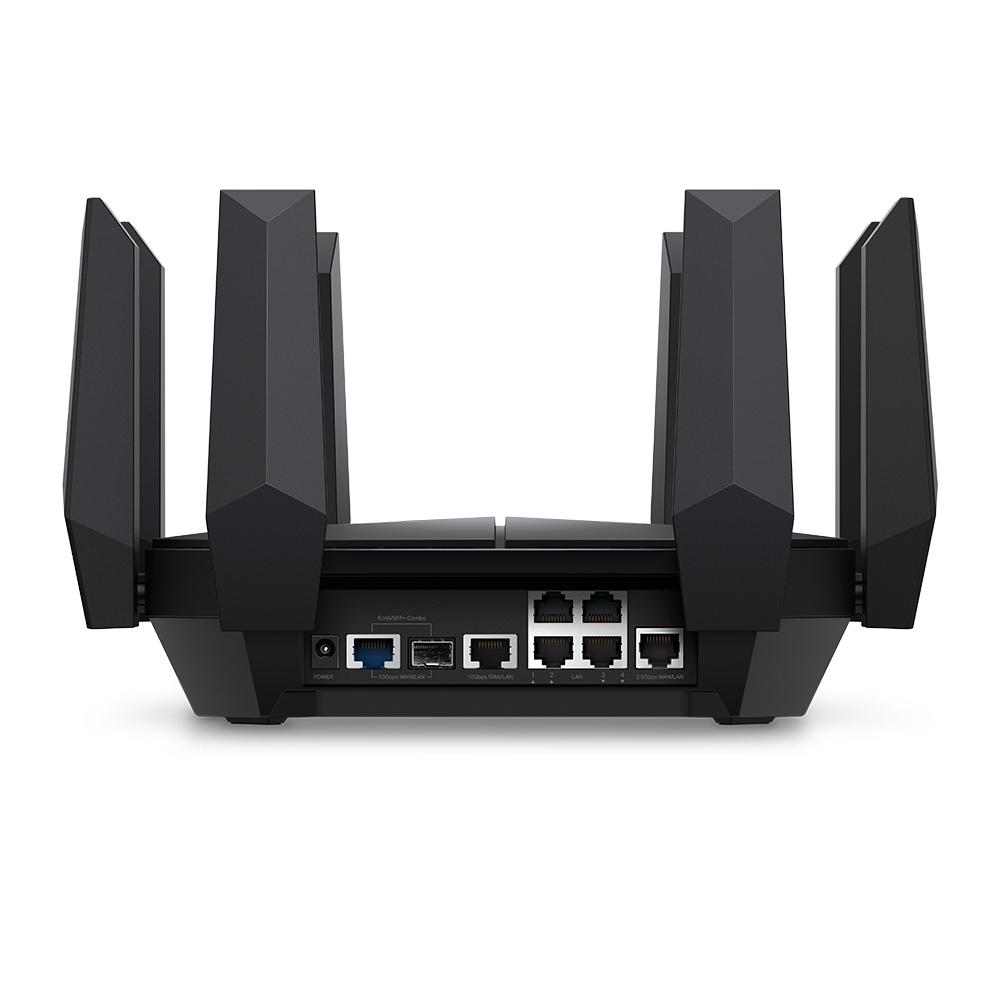

| Ethernet Ports | • 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port§ • 1× 10 Gbps WAN/LAN Port§ • 1× 2.5 Gbps WAN/LAN Port§ • 4× 1 Gbps LAN Ports |
| USB Support | 1× USB 3.0 Port • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED On/Off Button • WPS Button • Reset Button |
| Power | 12 V ⎓ 5 A |
| SECURITY | |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| Network Security | • SPI Firewall Real-Time IoT Protection |
| Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
| SOFTWARE | |
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls | HomeShield Parental Controls Custom Profiles |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server DDNS • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz) |
| WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -64dBm 5 GHz-1: 11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm 11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60dBm 11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -57dBm 11ax HE160 MCS0: -82dBm, 11ax HE160 MCS11: -52dBm 5 GHz-2: 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -59dBm 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm 6 GHz: 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -58dBm 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm |
| Dimensions (W×D×H) | 9.1 × 9.1 × 2.7 in (232 × 232 × 68 mm) |
