TP-Link BE6500 Dual-Band Wi-Fi 7 Router
- SKU: Archer BE400
Product Information
BE6500 Dual-Band Wi-Fi 7 Router
Powered by Wi-Fi 7 technology, Archer BE400 delivers incredible Wi-Fi speeds of up to 6.5 Gbps, enabling your devices to run at full speed.1
WiFi 7, WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Boosted Throughput, Unmatched Reliability
Multi-Link Operation (MLO) enables Archer BE400 to transmit data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.6
2.5 Gigabit Wired Connections Devices
Experience lightning-speed connectivity with dual 2.5 Gbps ports! Archer BE400 features 1× 2.5 Gbps Internet (WAN) port and 1× 2.5 Gbps LAN port, maximizing Gigabit+ speeds delivered by your internet service provider. Break through the 1G bottleneck and unleash peak performance.4
6× High Performance Antennas with Beamforming for a Broader Coverage
Equipped with 6× high performance antennas, Archer BE400 boosts the WiFi signals throughout your home. The Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.1
Create Whole Home Mesh WiFi
Archer BE400 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.8
- WiFi Dead Zone Killer: iminate weak signal areas with WiFi coverage for the whole house
- Smart Roaming: Uninterrupted streaming when moving around your home
- One WiFi Name: No more switching WiFi network names
- Unified Management: Manage your whole home WiFi from the central node via the Tether app/Web UI
Set Up in Minutes
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.7
- Home Network Scanner: Real-time network scanner to detect potential threats and security issues.
- Parental Controls: Manage time online and block inappropriate content to keep your family safe online.
- Quality of Service: Assign your favorite devices to have the fastest connections for top performance.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption5 to better protect the security of your home network and IoT devices.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AX55 Pro can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Features:
- 6.5 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
- Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.

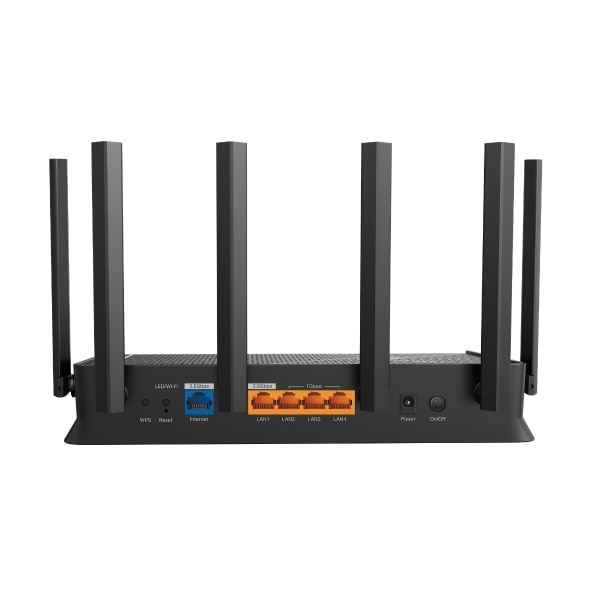

- 2.5G Wired Connection: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.
- Maximized Coverage: 6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- Easy Setup and Use: Network management has never been easier with the Tether app.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
- Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.
Specifications
Specifications Archer BE400
Wireless | |
Standards | IEEE 802.11be/ax/ac/n/a 5 GHz, IEEE 802.11be/ax/n/g/b 2.4 GHz |
WiFi Speeds | 5764 Mbps (5 GHz) + 688 Mbps (2.4 GHz)† |
WiFi Range | 6× High-Performance Antennas |
WiFi 7 Features | Multi-Link Operation (MLO), 4K-QAM, and Multi-RUs |
Working Modes | Router Mode, Access Point Mode |
Hardware | |
Ethernet Ports | 1× 2.5 Gbps WAN Port + 1× 2.5 Gbps LAN Port +3 x 1 Gbps LAN Ports |
USB Support | 1× USB 3.0 Port |
Buttons | Power On/Off Button, Reset Button, WPS Button, Wi-Fi/LED Button |
Security | |
WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security |
Guest Network | 5GHz Guest Network, 2.4 GHz Guest Network |
VPN Server | OpenVPN, PPTP, L2TP VPN Server, Wireguard VPN |
VPN Client | OpenVPN, PPTP, L2TP VPN Client, Wireguard VPN |
Software | |
Protocols | IPv4, IPv6 |
Service Kits | HomeShield |
EasyMesh | Supported |
Parental Controls | HomeShield Parental Controls |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
DDNS | TP-Link, NO-IP, DynDNS |
Dimensions | 10.6 × 6.0 × 1.9 in (268.6 × 153.0 × 47.6 mm) |
Test Data | |
WiFi Transmission Power | FCC: ≤ 30 dBm (2.4 GHz), ≤ 30 dBm (5 GHz) CE: ≤20dBm EIRP (2.4GHz); ≤23dBm EIRP (5.17GHz~5.35GHz); ≤30dBm EIRP (5.47GHz~5.725GHz) |
WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -68dBm 11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -66dBm 11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm 5 GHz: 11ax HE20 MCS0:-96dBm, 11ax HE20 MCS11:-66dBm 11ax HE40 MCS0:-94dBm, 11ax HE40 MCS11:-64dBm 11ax HE80 MCS0:-91dBm, 11ax HE80 MCS11:-61dBm 11ax HE160 MCS0:-88dBm, 11ax HE160 MCS11:-58dBm 11be EHT20 MCS13:-59dBm,11be EHT40 MCS13:-57dBm 11be EHT80 MCS13:-55dBm,11be EHT160 MCS13:-52dBm |
System Requirements | Microsoft Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
