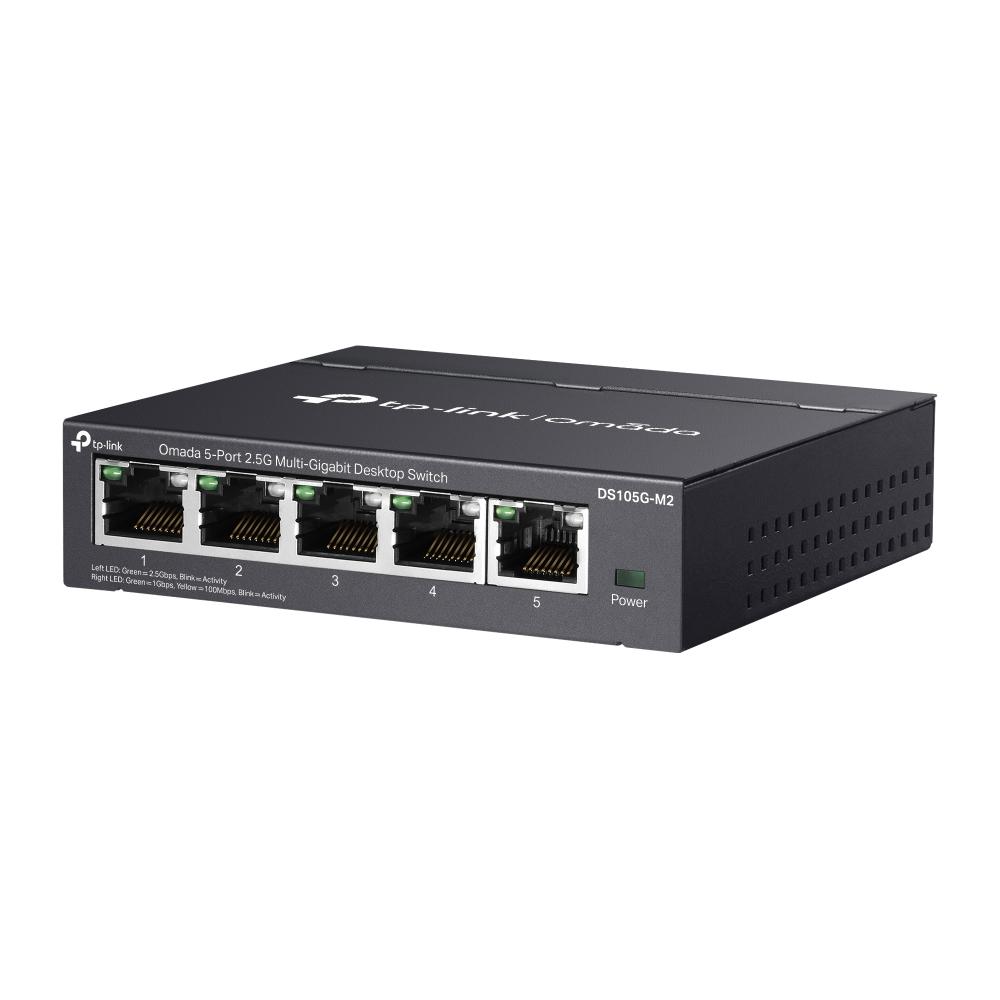

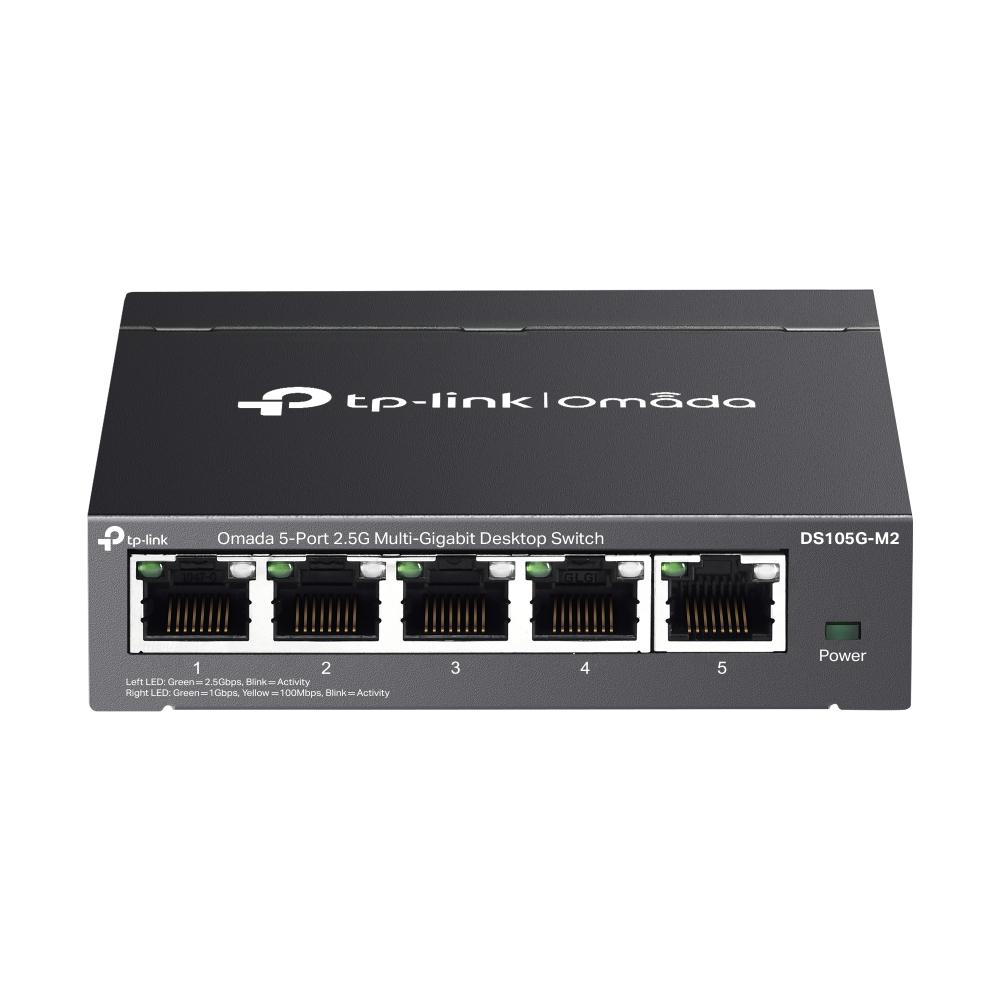

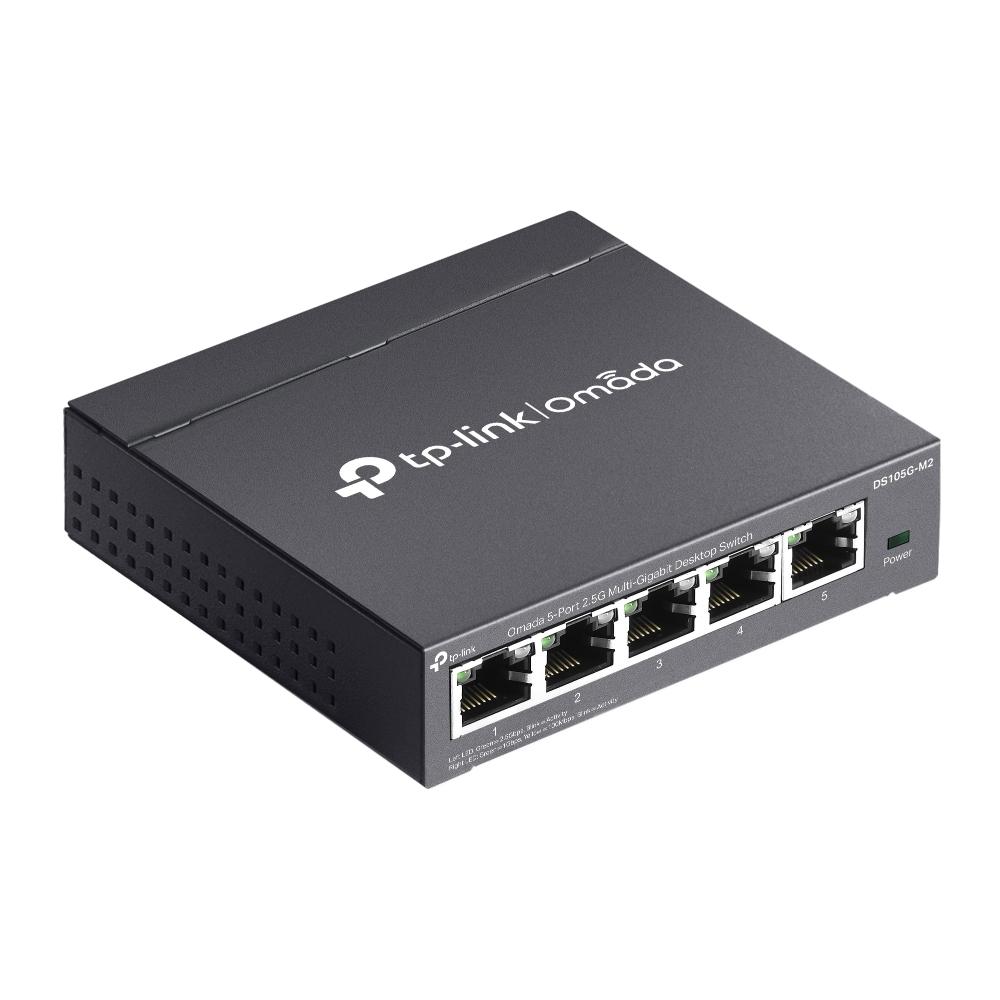

TP-Link Omada 5-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch
- SKU: DS105G-M2
$39.99
Product Information
Omada 5-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch
2.5G Super-Fast Speeds without Changing Cables
This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
Features:
- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play. No configuration or central management required.**

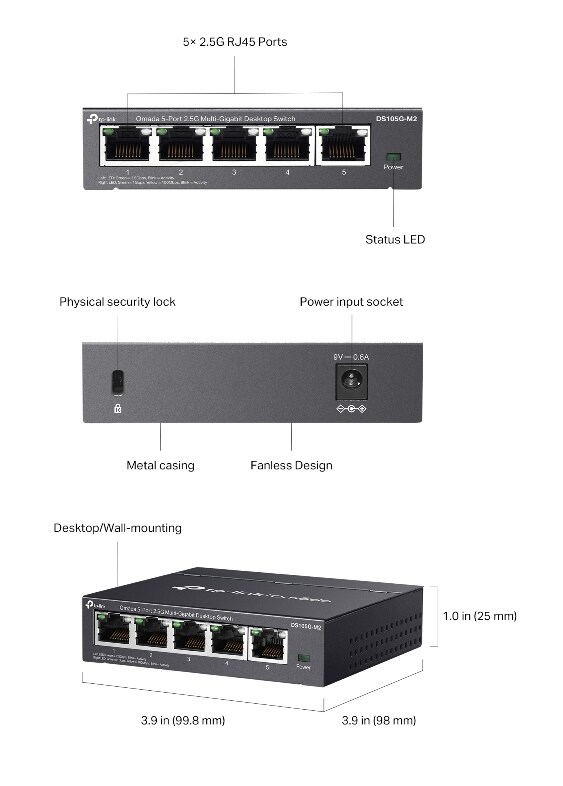

- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
Specifications DS105G-M2
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9 VDC / 0.6 A) |
| LED Indicator | • Power • Link/Act Indicators |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
| Max Power Consumption | 5.81 W |
| Max Heat Dissipation | 19.754 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 25 Gbps |
| Packet Forwarding Rate | 18.6 Mpps |
| MAC Address Table | 4 K |
| Jumbo Frame | 12 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transfer Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
