TP-Link BE22000 Tri-Band Whole Home Mesh Wi-Fi 7 System
- SKU: Deco BE85(1-pack)
$449.99
Product Information
Product Features
- 12-Stream 22Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).†
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enable many more simultaneous transmissions at the fastest possible speeds.
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – This technology is backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.
Specifications
Specifications Deco BE85(1-pack)
| Hardware | |

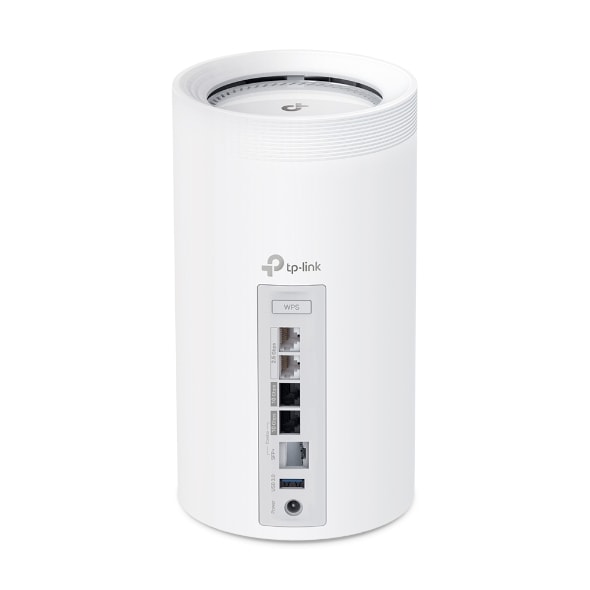

| Ethernet Port | 1× 10 Gbps RJ45/SFP+ Combo port + 1× 10 Gbps port + 2× 2.5 Gbps ports per unit (WAN/LAN auto-sensing) |
| Button | 1 RESET button at the bottom, 1 WPS button on the back |
| Port | 1× USB 3.0 Port |
| Power Consumption (without power adapter) | 51 W max |
| Dimensions (W × D × H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
| Power Adapter Input | 100-240V~50/60Hz 2A / 100-240~50/60Hz 1.8A |
| Power Adapter Output | 15V 5A / 12V 5A |
| Wireless | |
| Wireless Standards | IEEE 802.11b/g/n/ax/be 2.4 GHz, IEEE 802.11a/n/ac/ax/be 5GHz, IEEE 802.11ax/be 6 GHz |
| Mesh protocol | 802.11k/v/r |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz)†, 12 Streams |
| Transmit Power | FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz), <30 dBm(6 GHz) |
| Wireless Security | WPA/WPA2-PSK/WPA3◊ encryptions |
| Software | |
| Working Mode | Router, Access Point |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| DHCP | Server |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz Guest Network×1, 5 GHz Guest Network×1, 6 GHz Guest Network ×1 |
| IoT Network | IoT Network×1 |
| MLO Network | MLO Network×1 |
| Features | TP-Link HomeShield*, Multi-Link Operation (MLO)△, 320 MHz Bandwidth△, 4K-QAM△, Multi-RU△, MU-MIMO△, OFDMA△, BSS Color△ |
| Management | Local Management; Remote Management; Multi-Managers |
| Certification | FCC, RoHS |
| Environment | |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~60°C (-40 °F~140 °F) |
| Operating Humidity | 10%~90% RH |
| Storage Humidity | 5%~90% RH |
