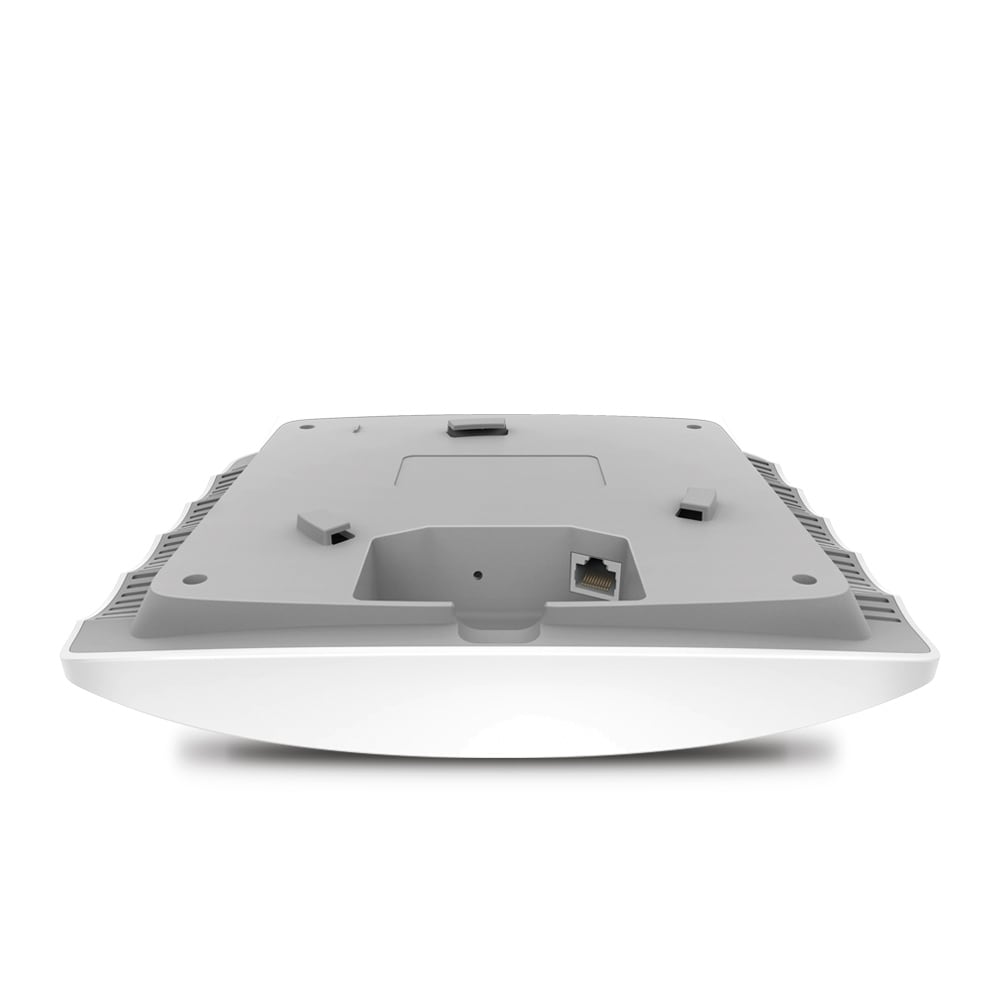

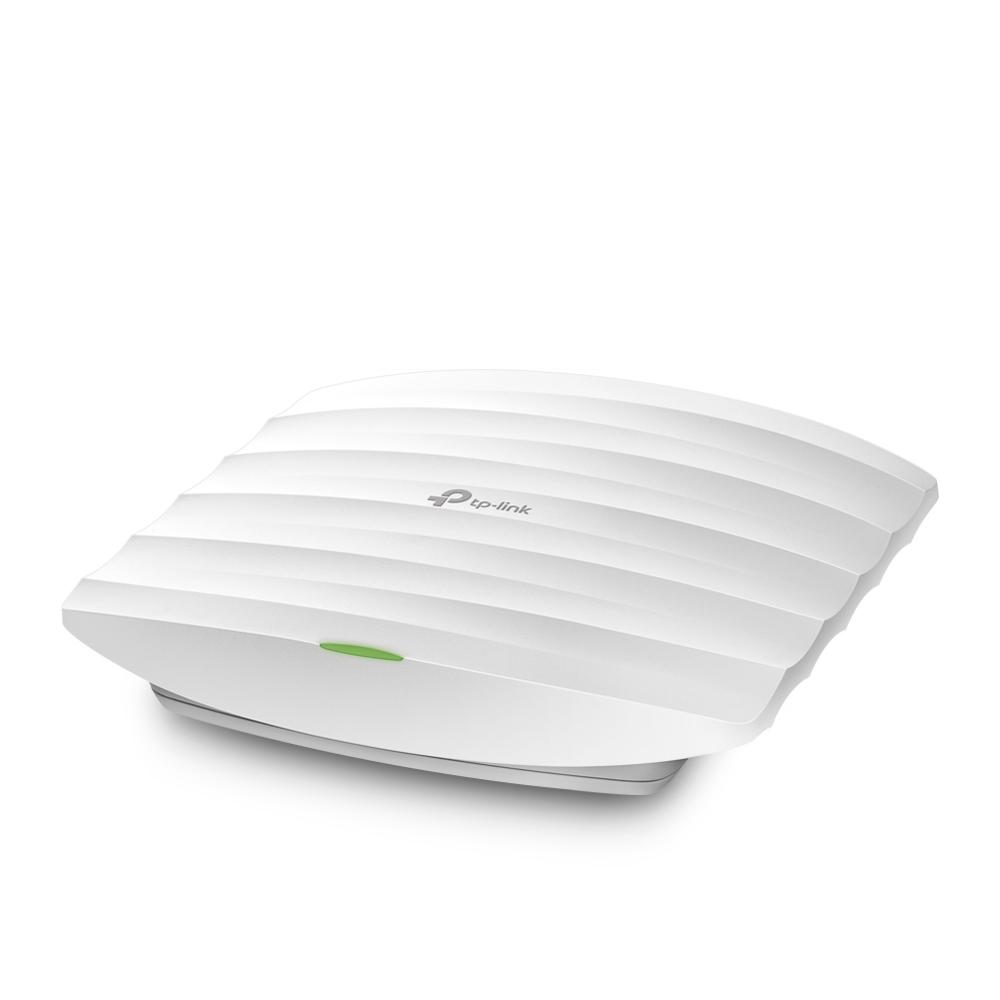

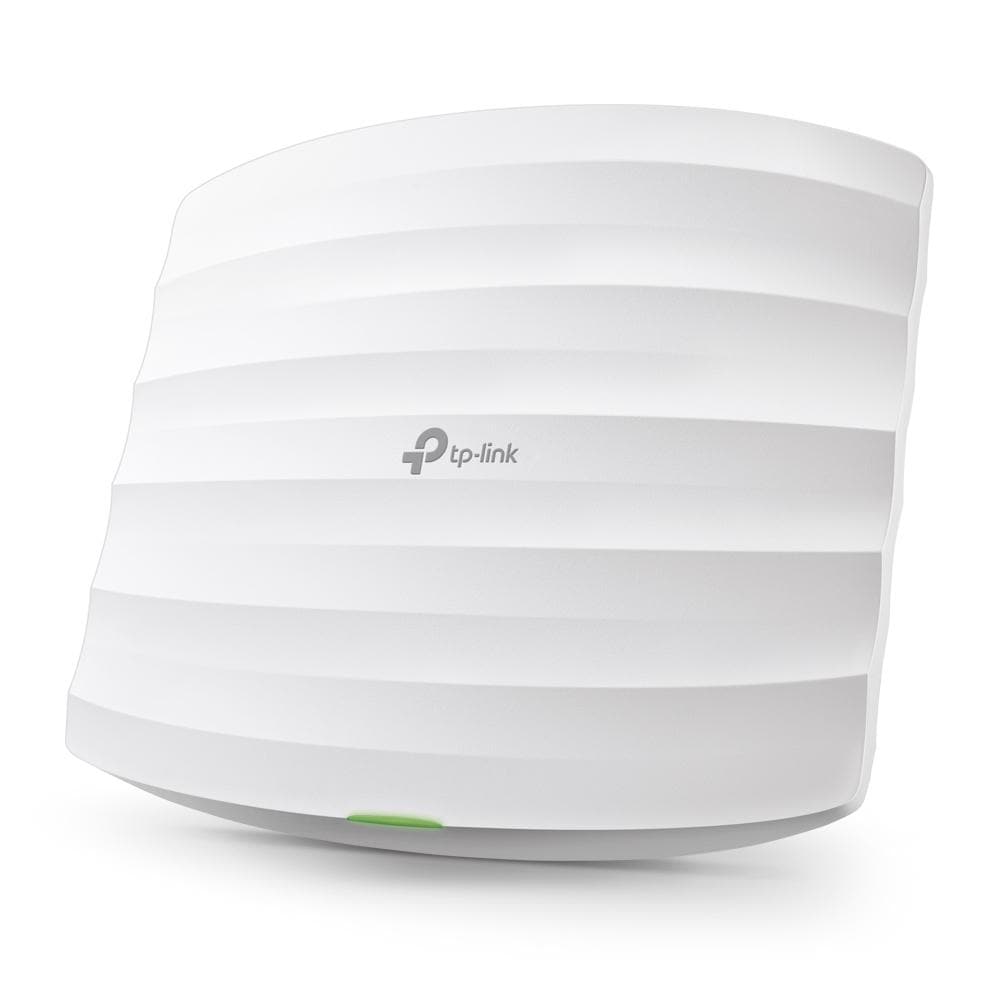

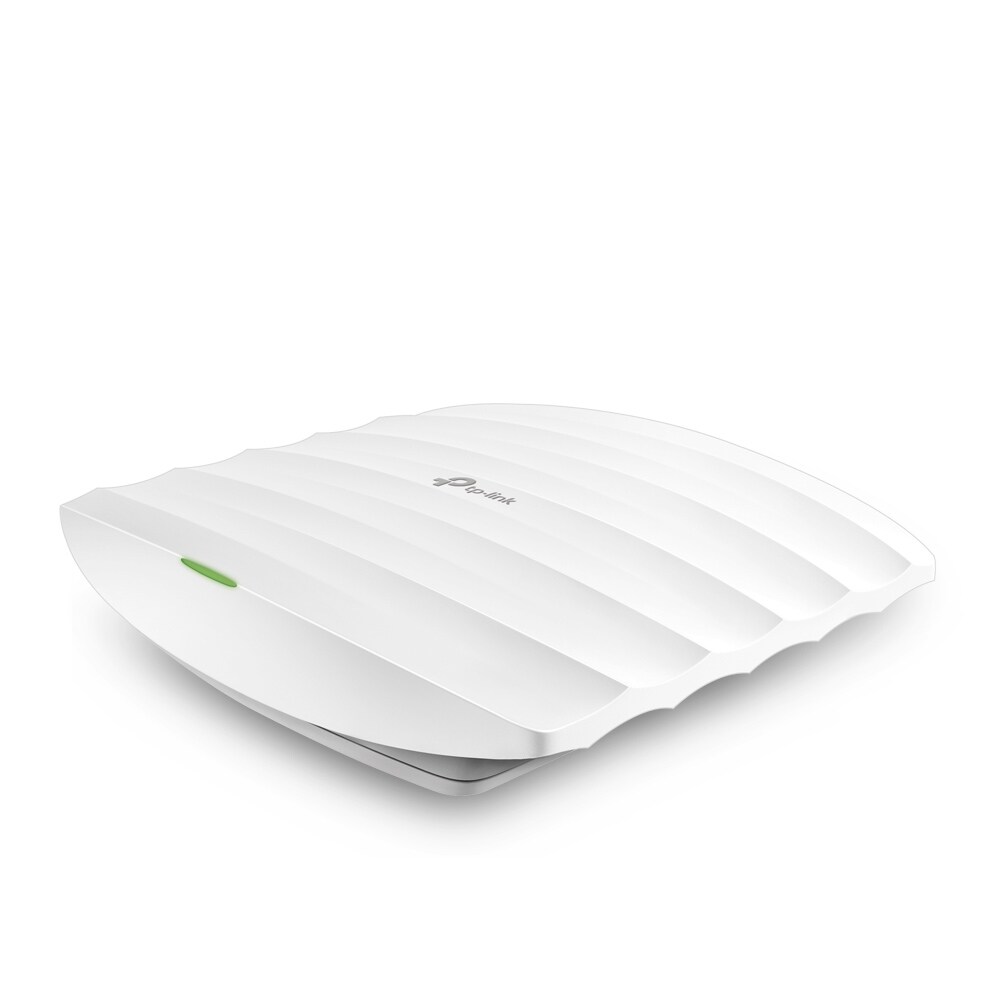

TP-Link AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point
- SKU: EAP225
$59.99
Product Information
AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point PORT: 1× Gigabit RJ45 Port SPEED: 450 Mbps at 2.4 GHz + 867 Mbps at 5 GHz FEATURE: 802.3af PoE and Passive PoE, 3× Internal Antennas, Mesh, Seamless Roaming, MU-MIMO, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App
Specifications
Specifications EAP225_V3
| HARDWARE FEATURES | |
| Interface | Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *) |
| Button | Reset |
| Power Supply | 802.3af PoE and passive PoE * |
| Power Consumption | EU: 10.5 W US: 12.6W |
| Dimensions | 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm) |
| Antenna Type | 3 Internal Omni * 2.4GHz: 4dBi 5GHz: 5dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz:Up to 867Mbps 2.4GHz:Up to 450Mbps * |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Band Steering Load Balance MU-MIMO * Airtime Fairness * Beamforming * Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | CE: ≤20dBm(2.4GHz,EIRP) ≤23dBm(5GHz,EIRP) FCC: ≤24dBm(2.4GHz) ≤22dBm(5GHz) |
| MANAGEMENT | |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0℃~60℃ (32℉~144℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
