TP-Link Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
- SKU: EAP610GP-Desktop
Product Information
Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP610GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.* Omada Mesh# and 802.11k/v roaming ensure a consistently smooth and reliable connection.
Flexible Desktop/Wall Installation
Choose a suitable installation method according to your needs.
Features:
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
- 1× GPON Port for High-Speed and Ultra-Range Access
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Smart O&M: PPSK and Multiple Portals§
- High Flexibility: Support both desktop and wall mounting setups
- Advanced Functions: Unified Management for OLT^ and Omada Devices, Omada Mesh#, and 802.11k/v/r Seamless Roaming.
Specifications
Specifications EAP610GP-Desktop

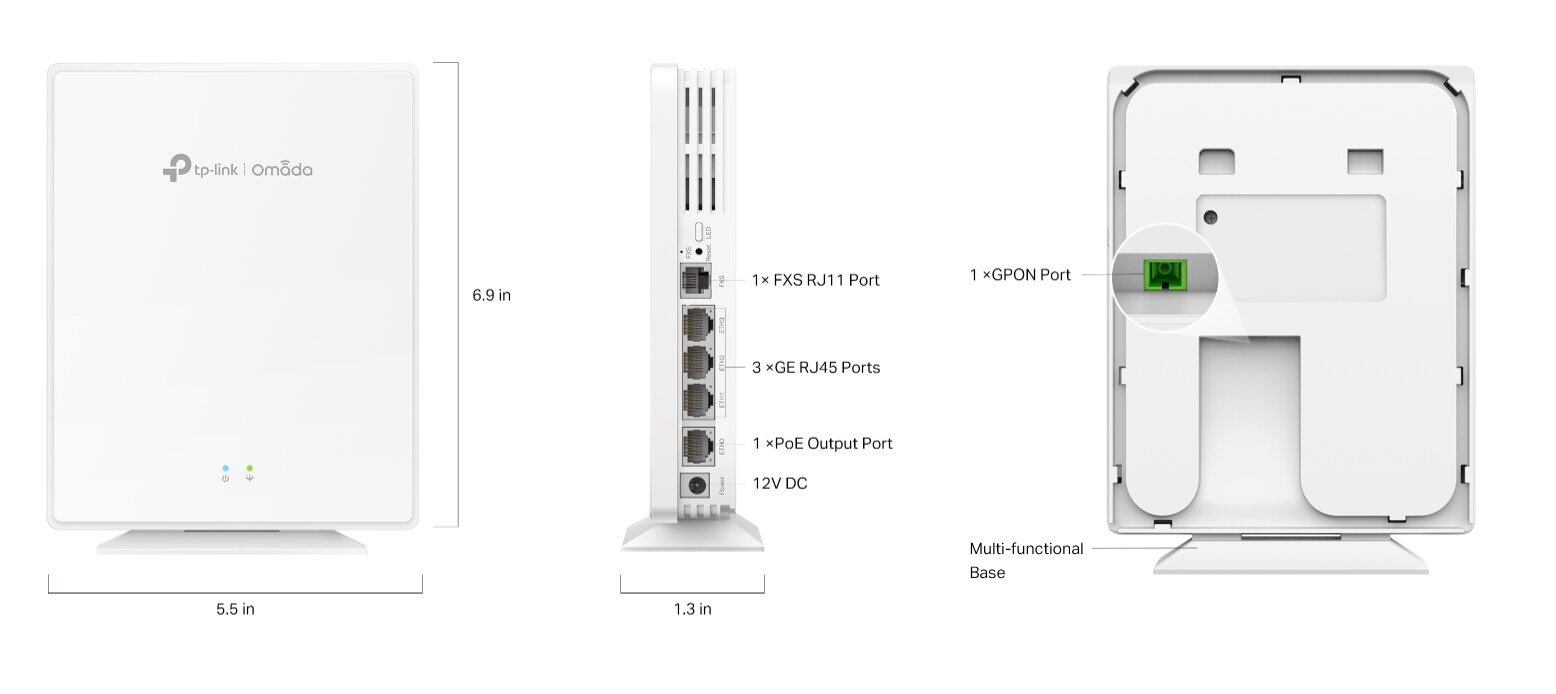

| Interface | • 1x GPON Port • 1x FXS Port • 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out) |
| GPON Interface | • Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km |
| Button | • Reset • LED |
| Power Supply | 53.5V/0.81A DC |
| Power Consumption | 17.3W (PoE Out Off) |
| Weight | 492g ( 1.08 lb) |
| Dimensions ( W x D x H ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 4.5 dBi |
| Mounting | Desktop / Wall mouting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 140㎡(1500ft²)** |
| Concurrent Clients | 120+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 1201 Mbps† • 2.4 GHz: 574 Mbps |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO‡ • HE80 (80 MHz Bandwidth)‡ • OFDMA‡ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: • FCC: |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Certification | CE, FCC, RoHS, IC |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
