TP-Link AX1800 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point
- SKU: EAP625-Outdoor HD
$149.99
Product Information
AX1800 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point PORT: 1× Gigabit RJ45 Port SPEED: 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz FEATURE: 802.3at PoE and 48V/0.5A Passive PoE, IP67 Weatherproof, 2×External Antenna, Mesh, Seamless Roaming, MU-MIMO, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App
Specifications
Specifications EAP625-Outdoor HD
| HARDWARE FEATURES | |

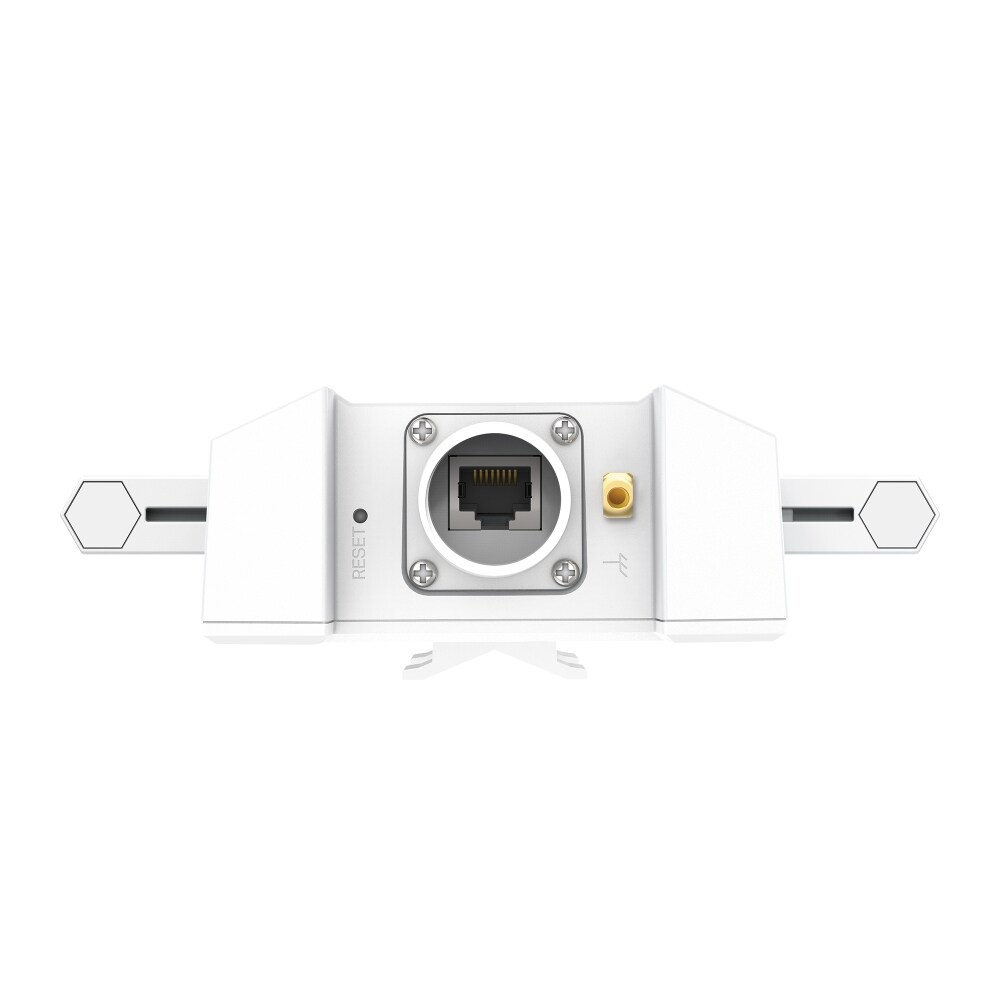

| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE Note: PoE adapter is not included. |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) |

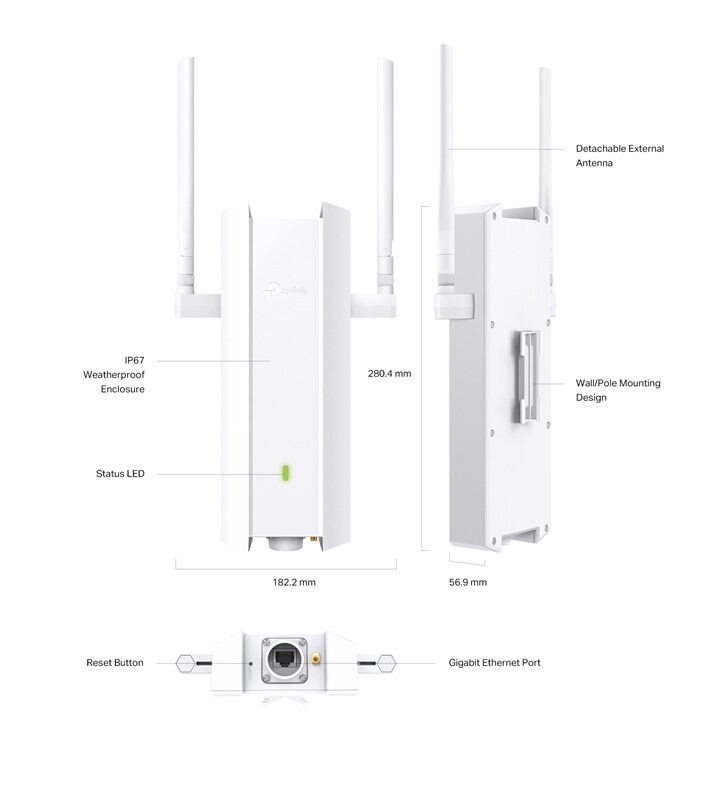

| Dimensions ( W x D x H ) | 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)*5 |
| Antenna Type | 2× External Dual-Band Omni Antennas • 2.4 GHz: 3.0 dBi; • 5 GHz: 5.0 dBi |
| Bluetooth | V5.2 |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Concurrent Clients | 1,020+3 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • Mesh*4 • Seamless Roaming(802.11k/v/r)*4 • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • MU-MIMO (2x2 MU-MIMO DL) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
