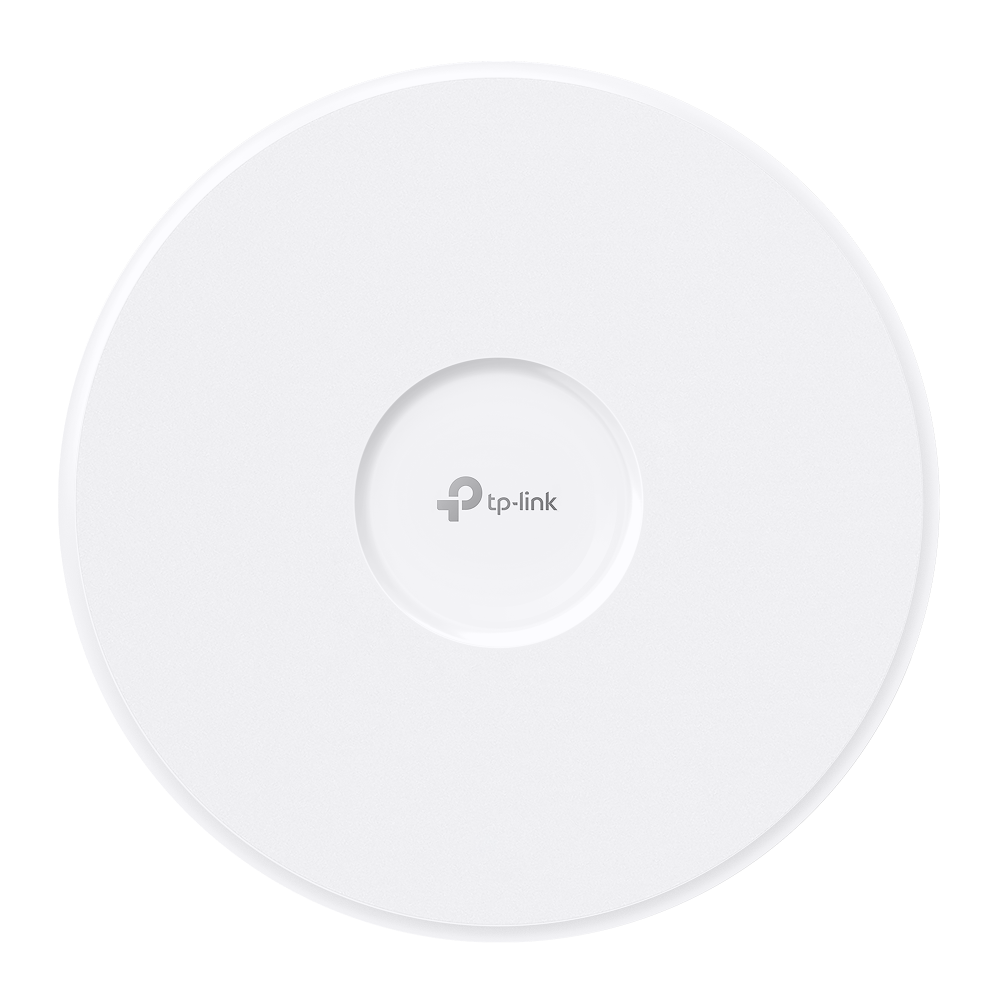

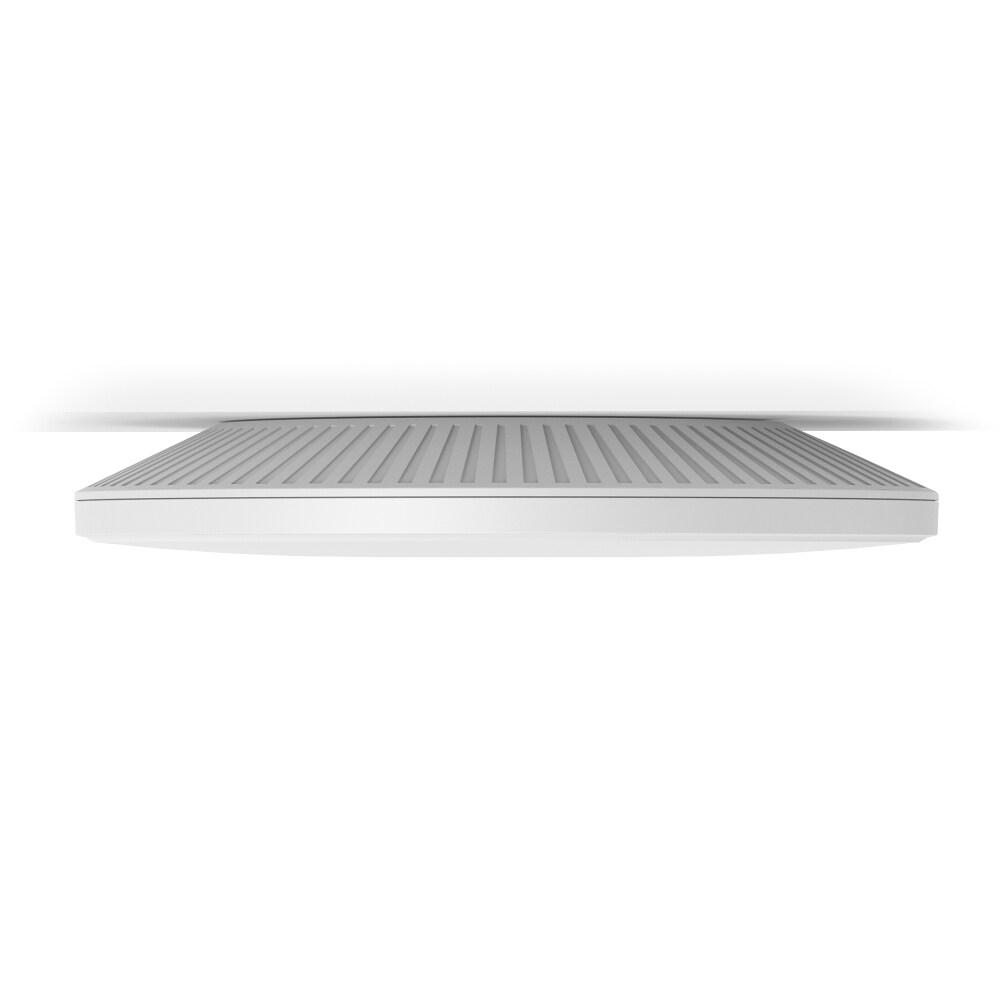

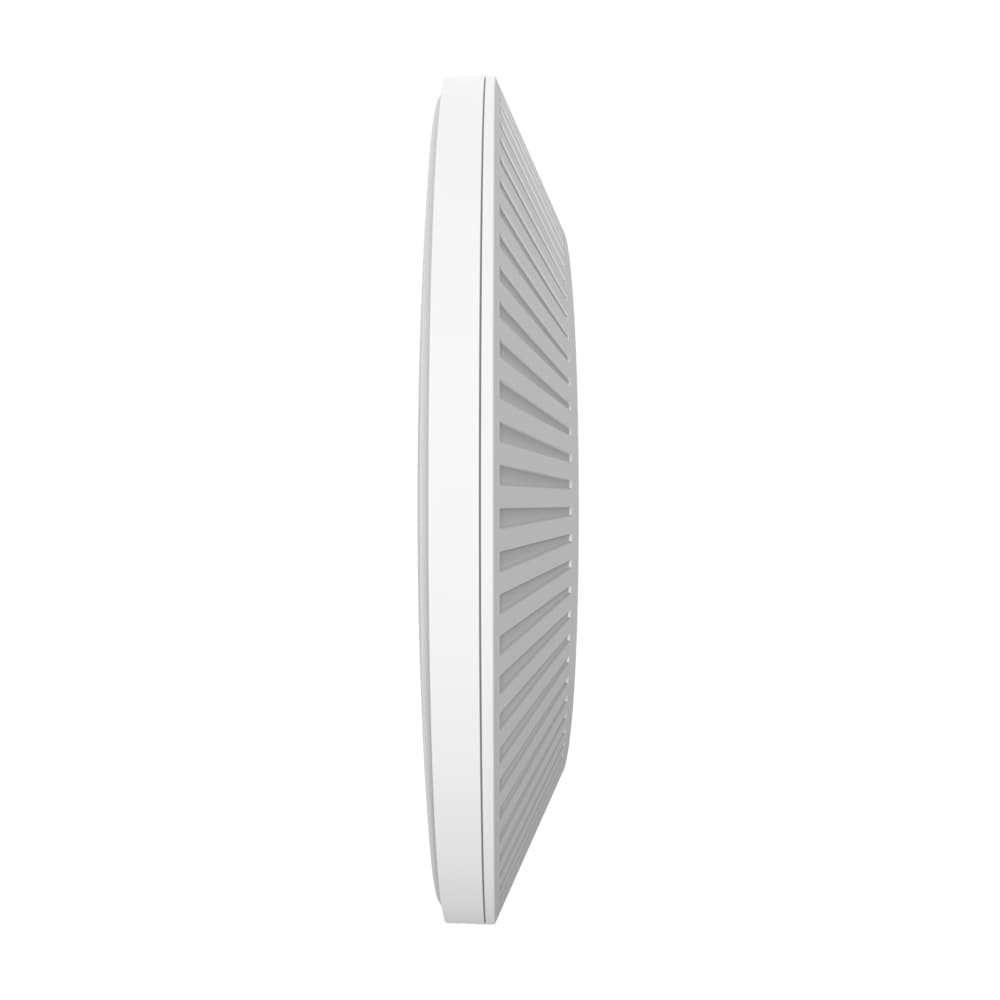

TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- SKU: EAP783
$499.99
Product Information
Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point PORT: 2×10G RJ45 Port SPEED:1148Mbps at 2.4 GHz + 8640 Mbps at 5 GHz+ 11520 Mbps at 6 GHz FEATURE: 802.3bt POE++ and 12V DC (Power Adapter is not included), 8×Internal Antennas, MU-MIMO, 320MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, MLO, 4K-QAM, Centralized Management by Omada SDN Controller, Omada App
Specifications
Specifications
| Weight | (3.05lbs) 1384.6g |
| Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| HARDWARE FEATURES | |
| Interface | 2× 10G Ethernet Ports |
| Button | Reset |
| Power Supply | • 802.3bt PoE++ Note：Power adapter is not included. |
| Power Consumption | 39W |
| Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi |

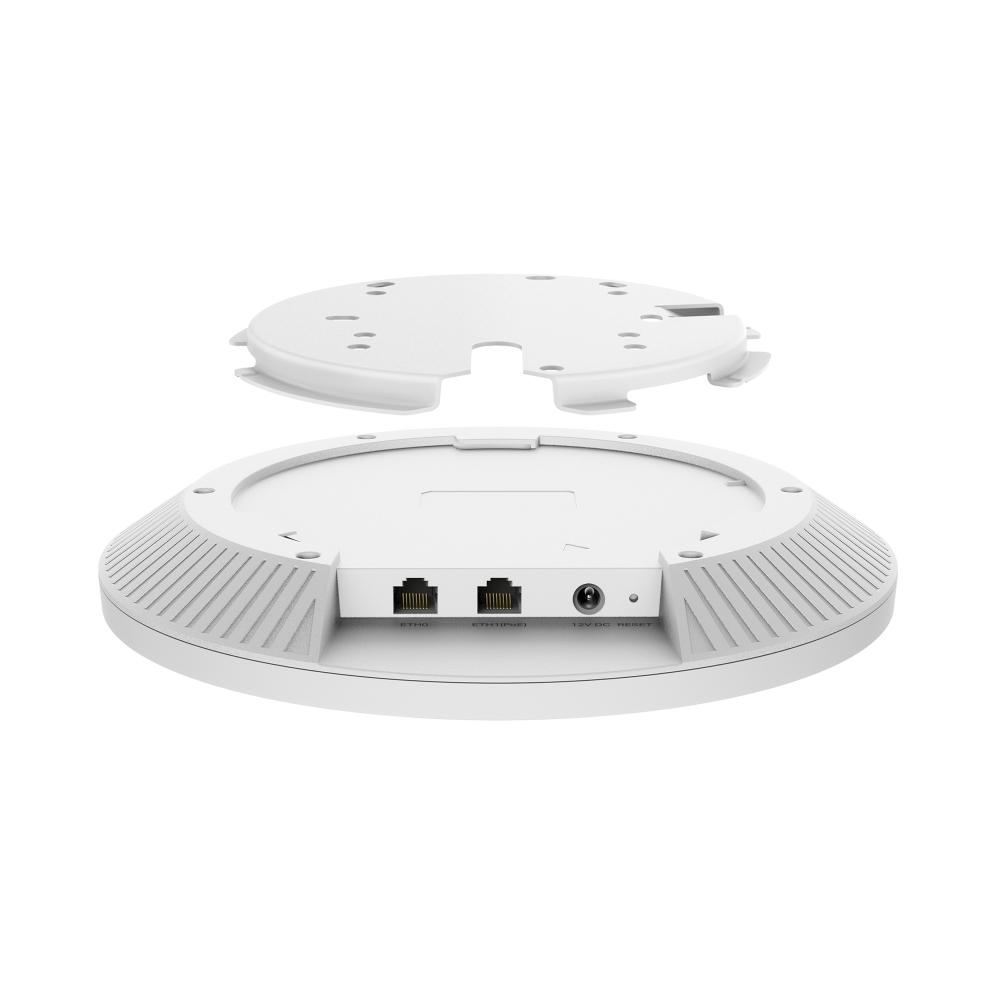

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Concurrent Clients | 640** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | • 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps |
| Wireless Functions | • MLO • 4K-QAM • 4x4 MU-MIMO DL/UL • HE320 (320 MHz Bandwidth)‡ • Mesh§ • AI Roaming△ • Automatic Channel Selection and Power Adjustment* • BSS Coloring • UL/DL OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • PPSK • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1&band 4) <24 dBm (5G band 2&band 3) <28 dBm (6 GHz) |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS, IC |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
