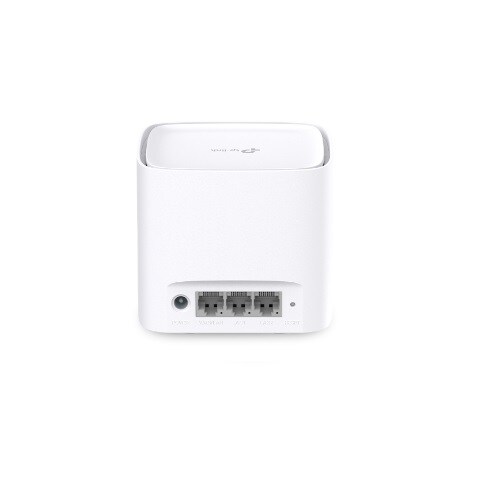

TP-Link HC220-G5
- SKU: HC220-G5
$32.50
- Manufacturer: TP-Link
Product Information
AC1200 Whole Home Mesh WiFi System
Specifications
Specifications HC220-G5
| HARDWARE FEATURES | |
| External Power Supply | 12 V ⎓ 1.0 A |
| Interface | 3× Gigabit Ports *Per Unit 1 Port supports WAN/LAN auto-sensing |
| Button | Reset Button WPS Button |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 3.5 in (100 x 100 x 89.5 mm) |
| WIRELESS FEATURES | |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| Transmit Power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3 Personal encryptions |
| Wireless Standards | Wi-Fi 5 IEEE 802.11 a/n/ac 5 GHz IEEE 802.11 b/g/n 2.4 GHz |
| Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
| SOFTWARE FEATURES | |
| WAN Type | Dynamic IP/Static IP/PPPoE |
| Quality of Service | WMM |
| Firewall Security | SPI Firewall |
| Management | Local Management, TAUC Cloud Management, TR-069(TR-098/TR-181), TR-111, TR-143 |
| Advanced Features | Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule |
| Protocols | IPv4 IPv6 |
| Working Modes | Router Mode Access Point Mode |
| OTHERS | |
| Certifications | CE, FCC, Wi-Fi CERTIFIED™, Wi-Fi CERTIFIED EasyMesh™ |
| Environment | Operating Temperature: 0℃–40℃ (32℉ –104℉) |
| Storage Temperature | -40℃–60℃ (-40℉ –140℉) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Smartphone/Tablet Requirements | Android 4.4 or later iOS 9.0 or later |
