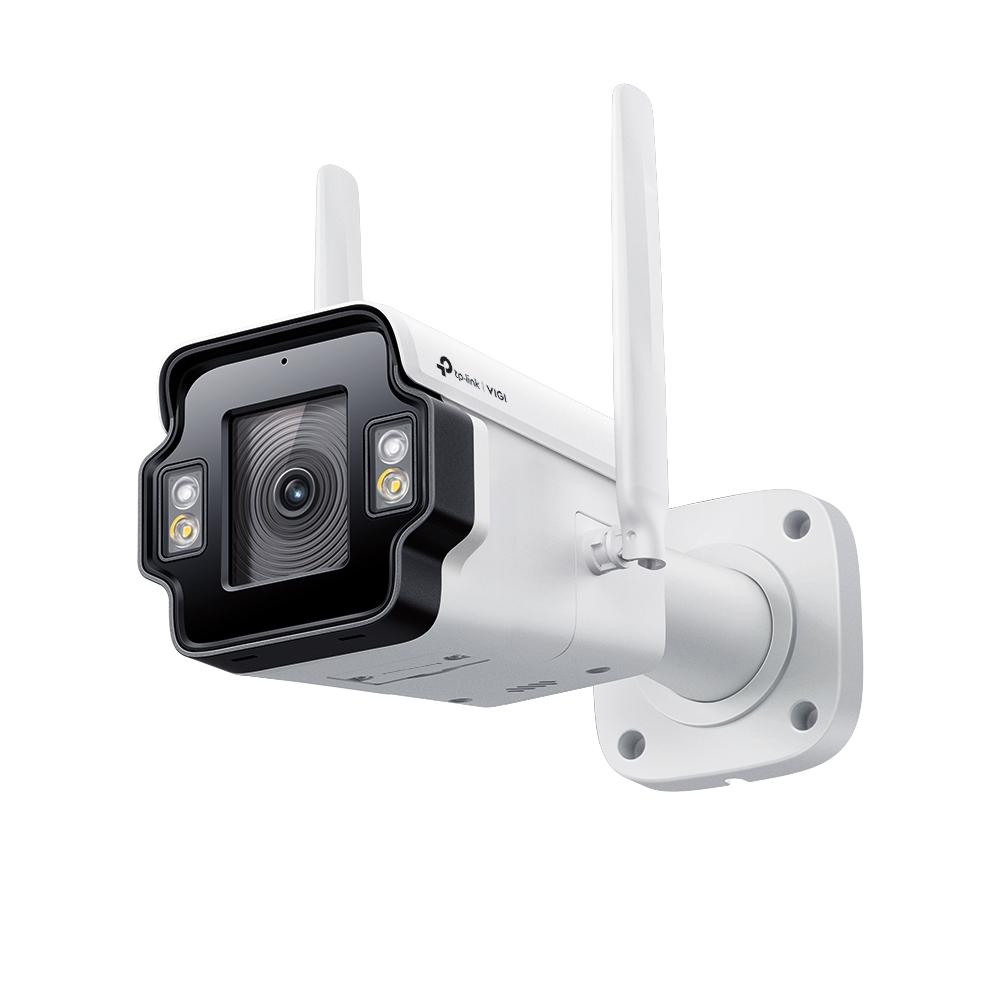

TP-Link VIGI 4MP 4mm Outdoor Full-Color 4G Bullet Network Camera
- SKU: InSight S345-4G(4mm)
Product Information
VIGI 4MP 4mm Outdoor Full-Color 4G Bullet Network Camera

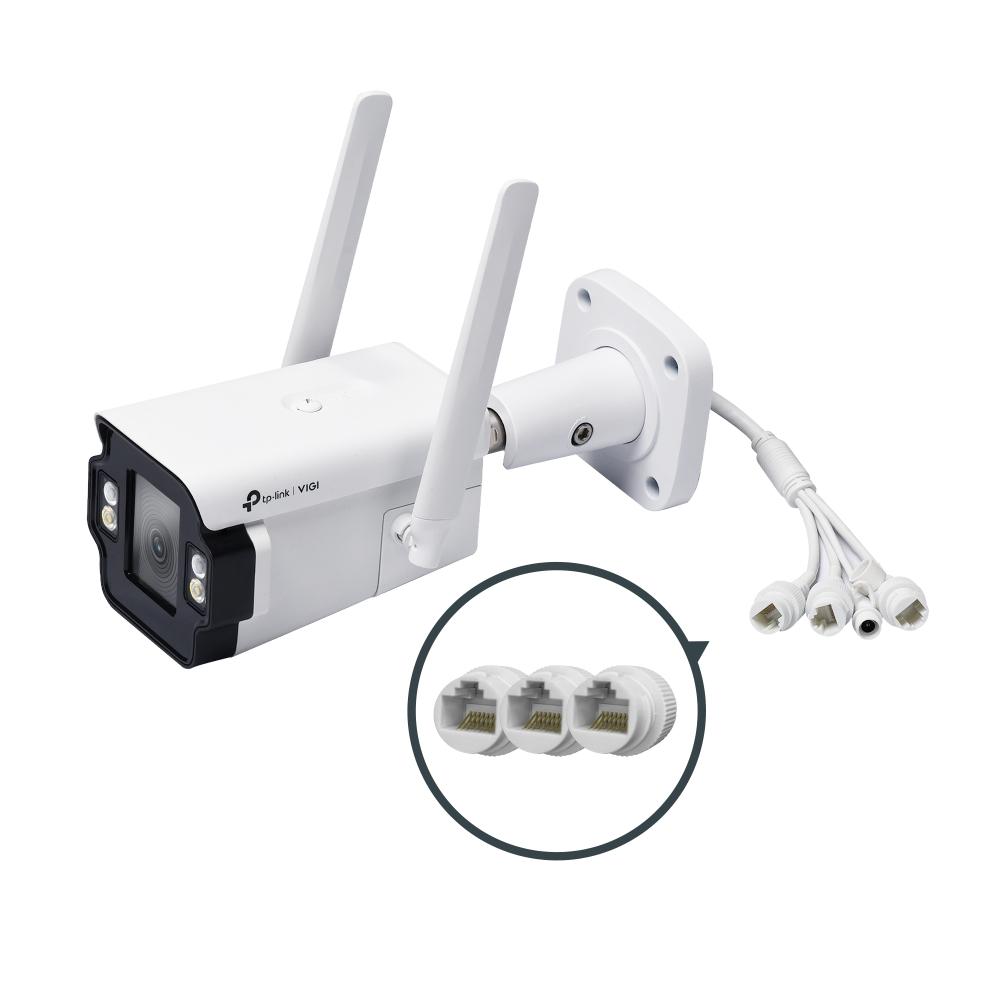

3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Features:
- 4MP Super-High Definition and 24h Full-Color
- 4G Mobile Networking*1
- 3 LAN Ports for Downstream Devices
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Weatherproof
Specifications
Specifications InSight S345-4G(4mm)
CAMERA | |
Image Sensor | 1/2.9“ Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.6 |
FOV | Horizontal FOV: 86°, Vertical FOV: 43°, Diagonal FOV: 95° |
Lens Mount | M12 |
DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
ANGLE ADJUSTMENT (MANUAL) | |
Range | • Pan: 0° to 360° • Tilt: 0° to 90° • Rotate: 0° to 360° |
ILLUMINATOR | |
IR LED | • Quantity: 2 • Range: 50m • Wavelength: 850nm |
White LED | • Quantity: 2 • Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 2688 X 1520 |
Main Stream | • Frame Rate: • Resolution: |
Sub-Stream | • Frame Rate: • Resolution: Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE | |
Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes (Built-in Microphone) |
Audio Output | Yes (Built-in Speaker) |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
ONVIF | Yes |
API | Open Network Video Interface (Profile S/G/T) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
4G | |
Standard | LTE-FDD |
SIM Type | Nano SIM*1 (supports data-only SIM card) |
Category | 4 |
Frequency | • LTE-FDD: B 2/4/5/12/13/14/66/71 |
Uplink and Download Data Rate | Uplink: 50 Mbps, Downlink: 150 Mbps |
Antenna | • Quantity: 2 • Type: • Gain: |
Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login) |
Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload to FTP server • Send to Alarm Server • Email Alarm |
INTERFACES | |
Network Interface | 3 RJ45 10/100M LAN Ports |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1 |
Built-in Nano-SIM Card Slot | Yes |
Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
Operating Temperature | -30℃ to 60°C |
Storage Temperature | -40℃ to 60°C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Material | Metal |
Net Weight | 1.09 Kg (2.40 lbs) |
Power Supply | • 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug |
Antenna | • Quantity: 2 • Type: • Gain: |
Protection | IP66 Weatherproof |

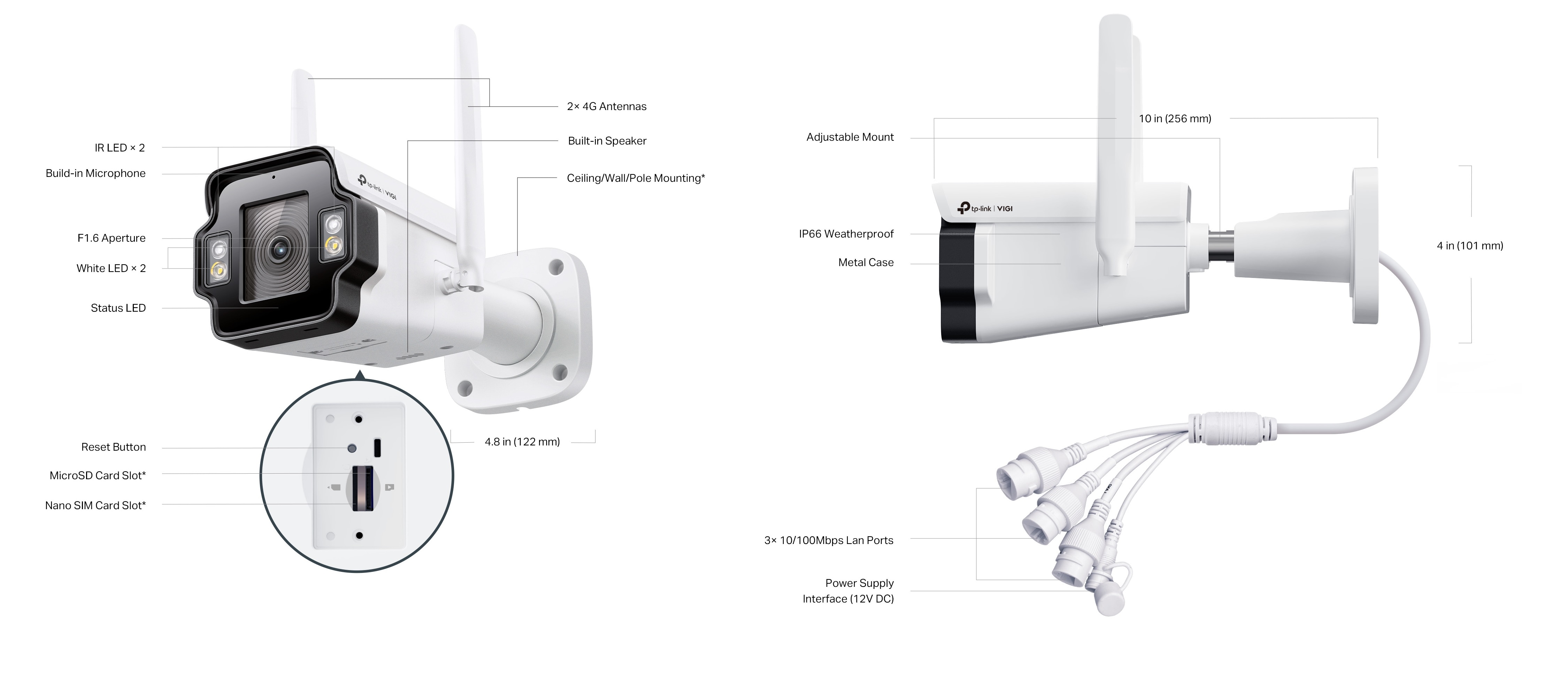

Product Dimensions (L x W x H) | 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas) |
Certifications | WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66 |
