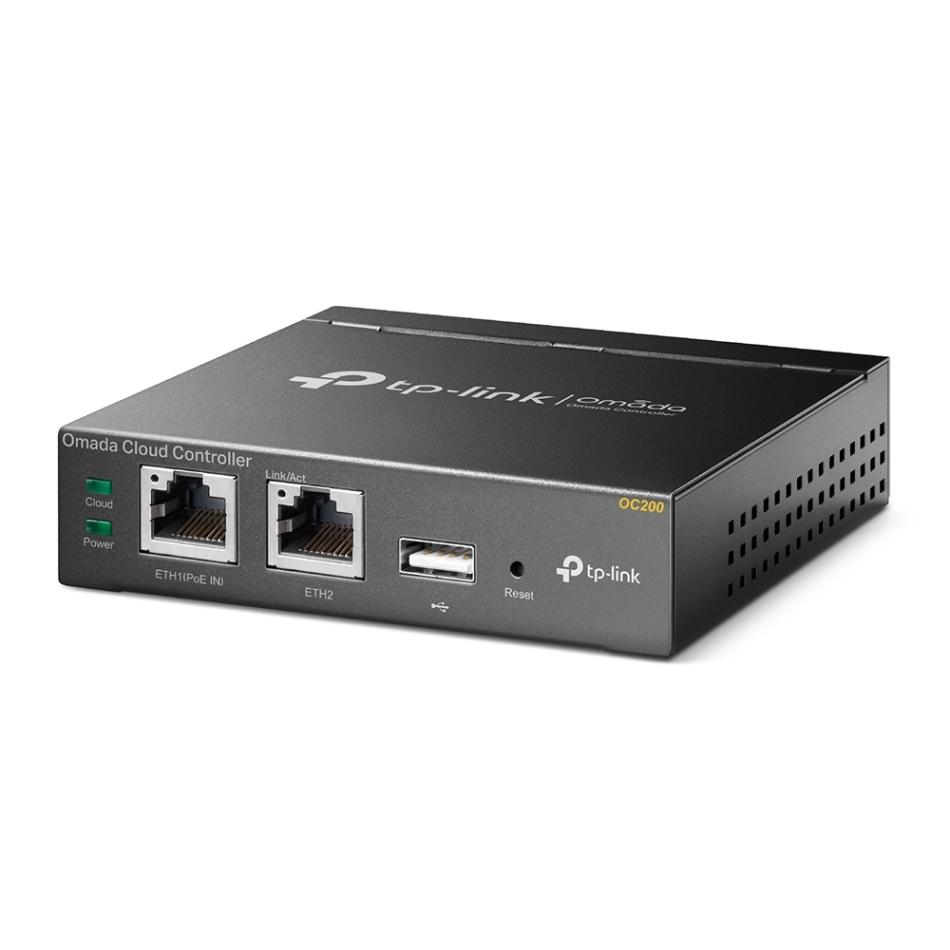

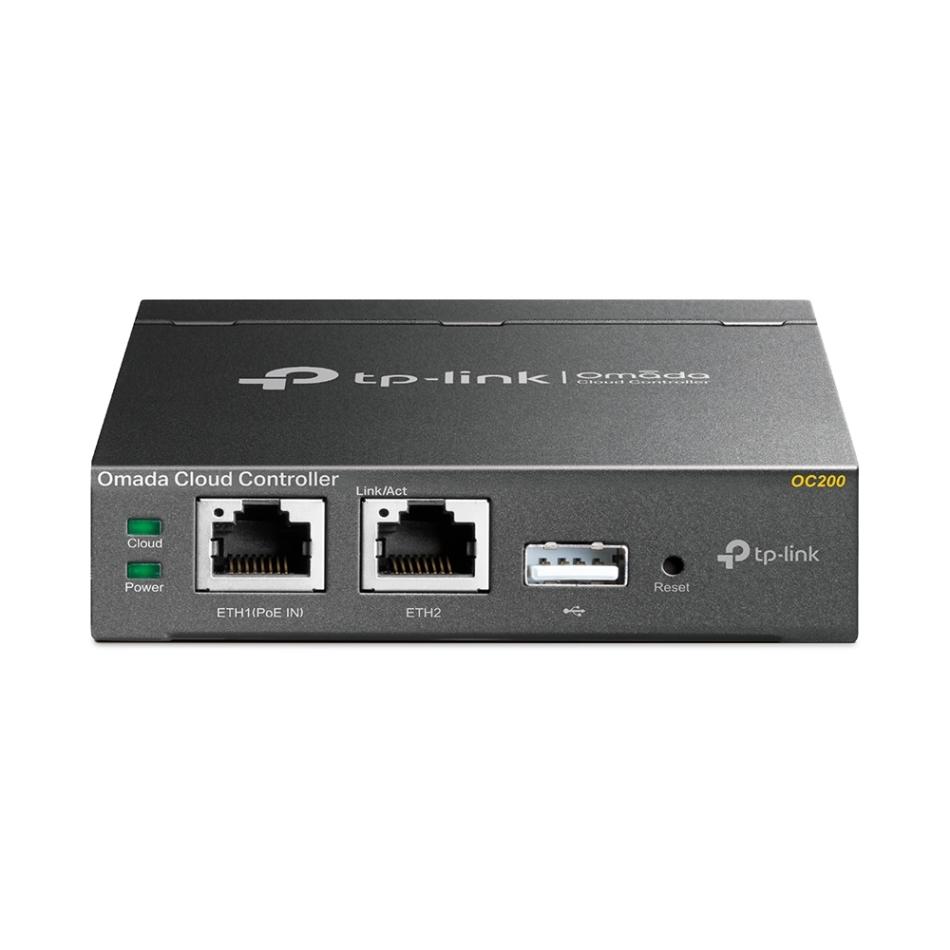

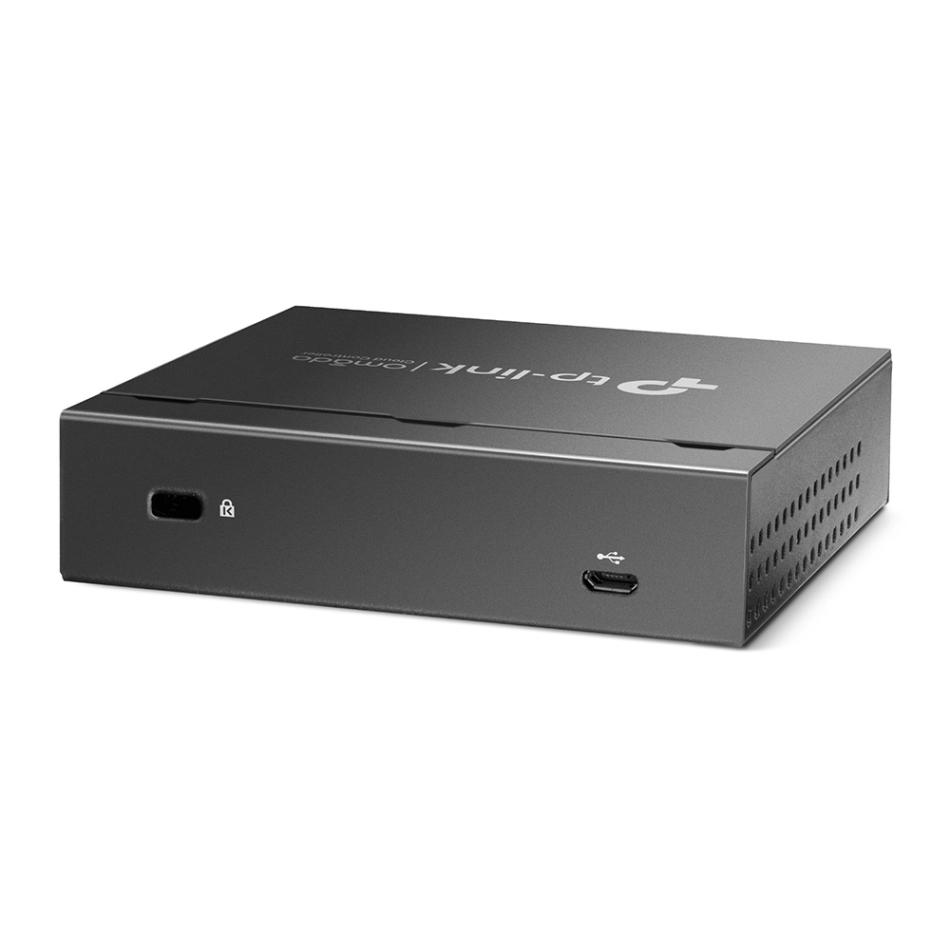

TP-Link Omada Hardware Controller
- SKU: OC200
$79.99
Product Information
Omada Hardware Controller PORT: 2× 10/100 Mbps Ethernet Ports, 1× USB 2.0 Port, 1× Micro USB Port FEATURE: Cloud Access, Centralized Management for Omada EAPs, Powered by 802.3af PoE or Micro-USB Power Adapter, Omada App
Specifications
Specifications OC200
| HARDWARE FEATURES | |
| Interface | 2 x 10/100Mbps Ethernet Port 1 x USB 2.0 Port for configuration backup 1 x Micro USB Port for power |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A） |
| Power Consumption | 5 W |
| Dimensions | 3.9×3.9×1.0in. (100×98×25mm) |
| FEATURES | |
| Management Scale | 100 EAPs |
| Wireless Fuction | L3 Management Multi-SSID Load Balance Band Steering Airtime Fairness Beamforming Rate Limit Wireless Schedule QoS |
| Wireless Security | WEP/WPA-PSK/WPA2-PSK/WPA/WPA2 Encryption Access Control SSID to VLAN Mapping Guest Network |
| AP Management | Support Omada EAP Series Cloud Access Omada App Support Reboot& Wireless Schedule Auto Backup & Restore Batch Firmware Upgrade |
| Authentication | Captive Portal |
| OTHERS | |
| Certification | FCC, RoHS |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
