TP-Link Omada Hardware Controller
- SKU: OC220
$89.99
- Manufacturer: TP-Link
Product Information
Omada Hardware Controller
Hybrid Cloud Management for Maximum Convenience
Remotely or locally manage up to 100 Omada access points, 10 gateways, 20 switches, and two DeltaStream GPON OLTs via the Omada App or Web UI.*
- Free Cloud Access: Remotely control the whole network wherever you are in the world
- On-Premises Management: Complete privacy
Features:
- Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.

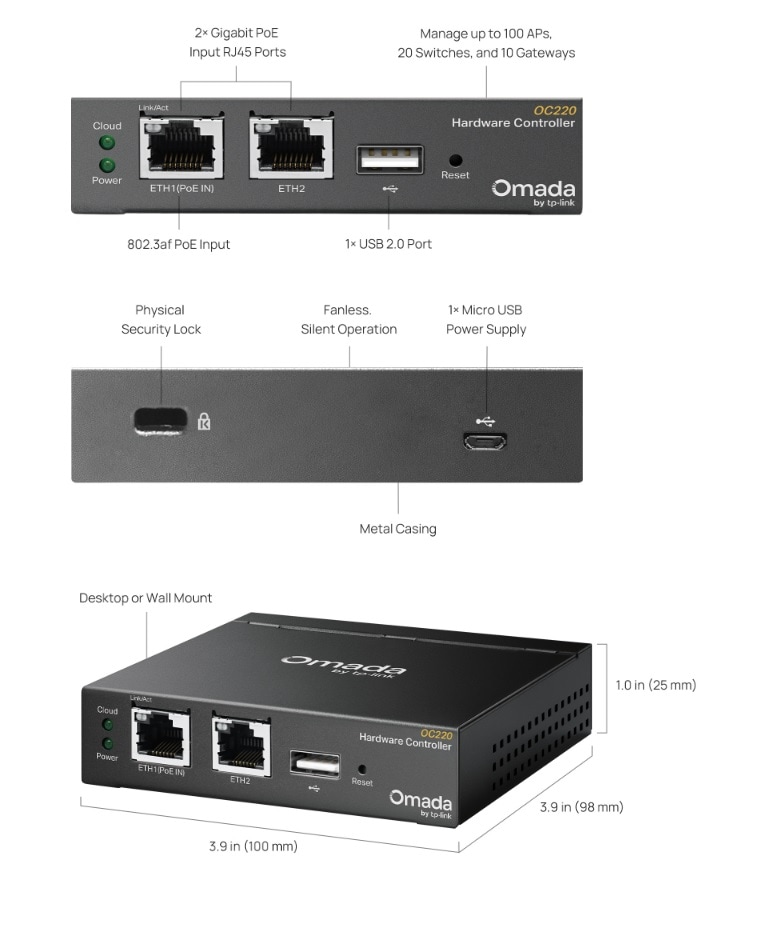

- Hardware Design for Businesses: A powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

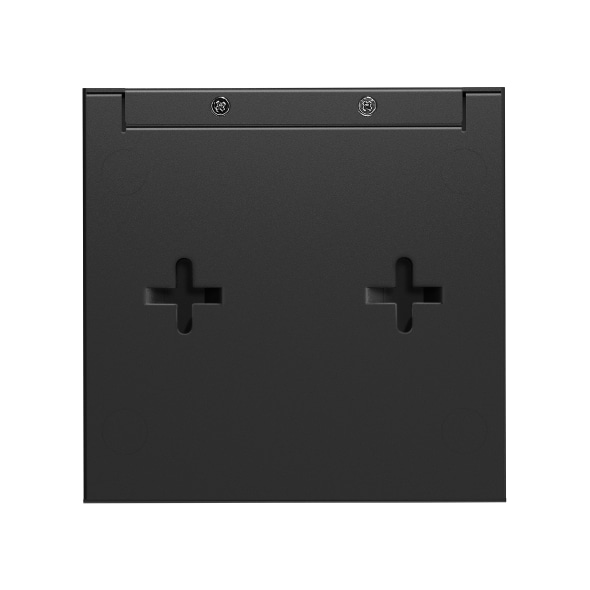

- Flexible Deployment: 802.3af PoE or Micro USB (DC 5V/Minimum 1A) power supply and compact desktop or wall mount installation.
Specifications
Specifications OC220
| HARDWARE FEATURES | |
| Interface | • 2× Gigabit Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port |
| Power Supply | • 802.3af PoE • Micro USB（DC 5V/Minimum 1A） |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | • 100 Omada access points Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| Certification | CE, FCC, RoHS |
| System Requirements | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
