TP-Link Omada 10G PoE++ Injector
- SKU: POE380S
$69.99
Product Information

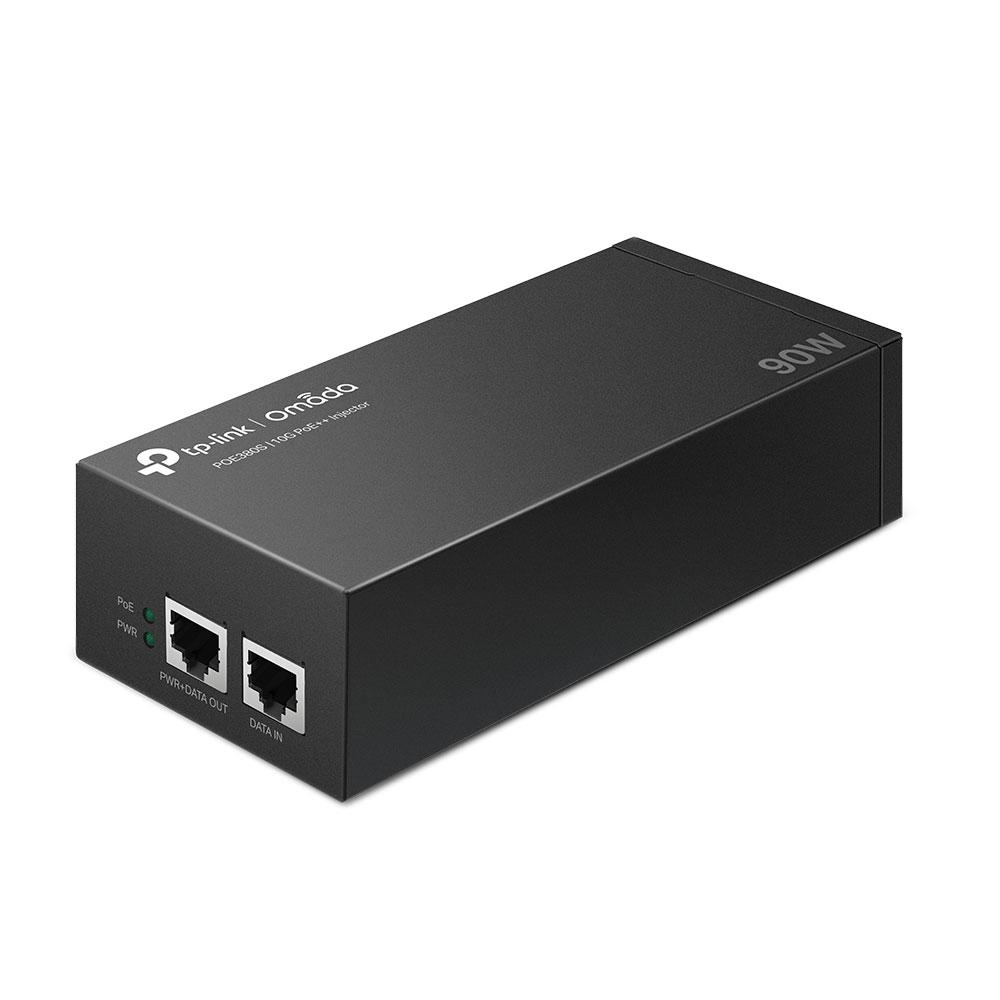

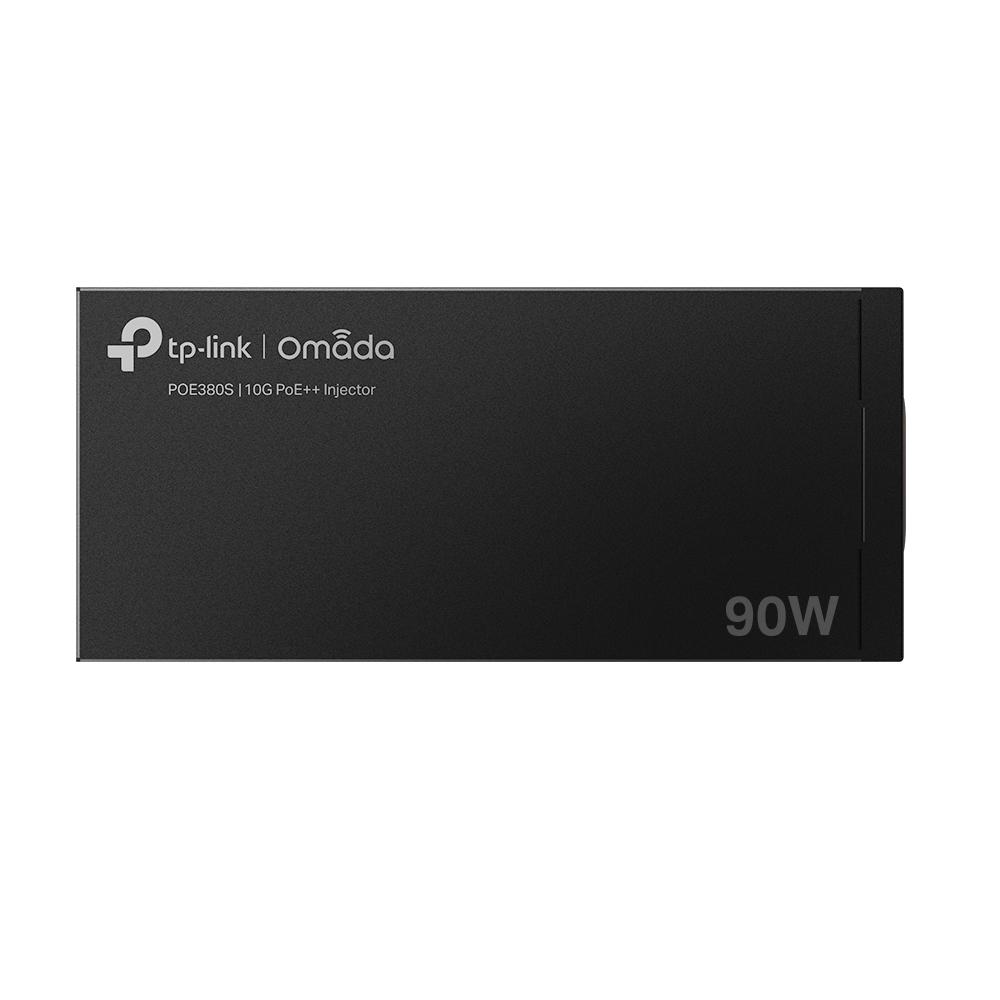

Omada 10G PoE++ Injector
The Omada 10G PoE++ injector allows you to transmit data and power your devices with a single cable. It includes 1 LAN port with 10Gbps speed as output with PoE and 1 LAN port with 10Gbps speed for input connection. It is fully compliant with 802.3bt/at/af standards and provides up to 90W of power for powering. Data and power are transmitted over the same cable, making installation easy. The steel construction makes the adapter durable enough.
Features:
- 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
Specifications
Specifications POE380S
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |

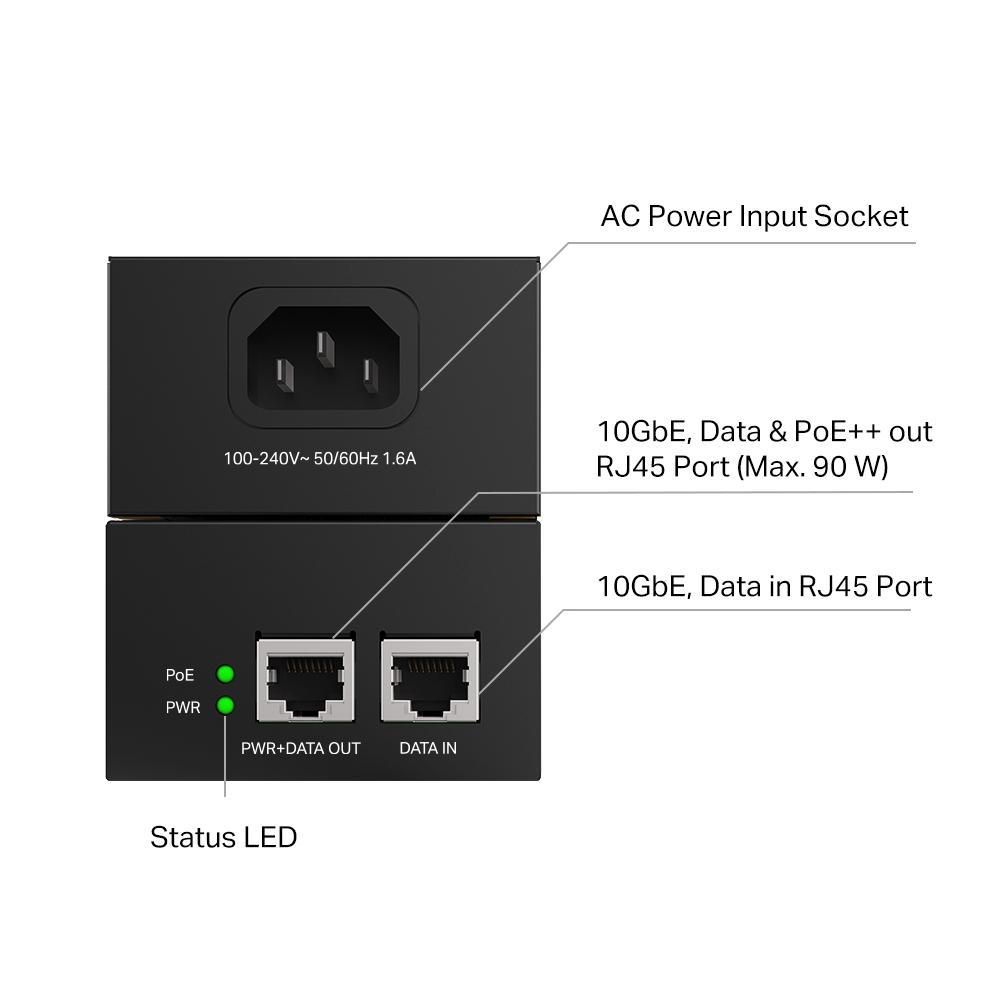

| Interface | • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W) • 1× AC socket |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Power Consumption | • Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 90 W) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation • Plug-and-Play |
| LED | Power / PoE |
| Dimensions ( W x D x H ) | 6.1*2.8*1.7 in (155*70*42 mm) |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
