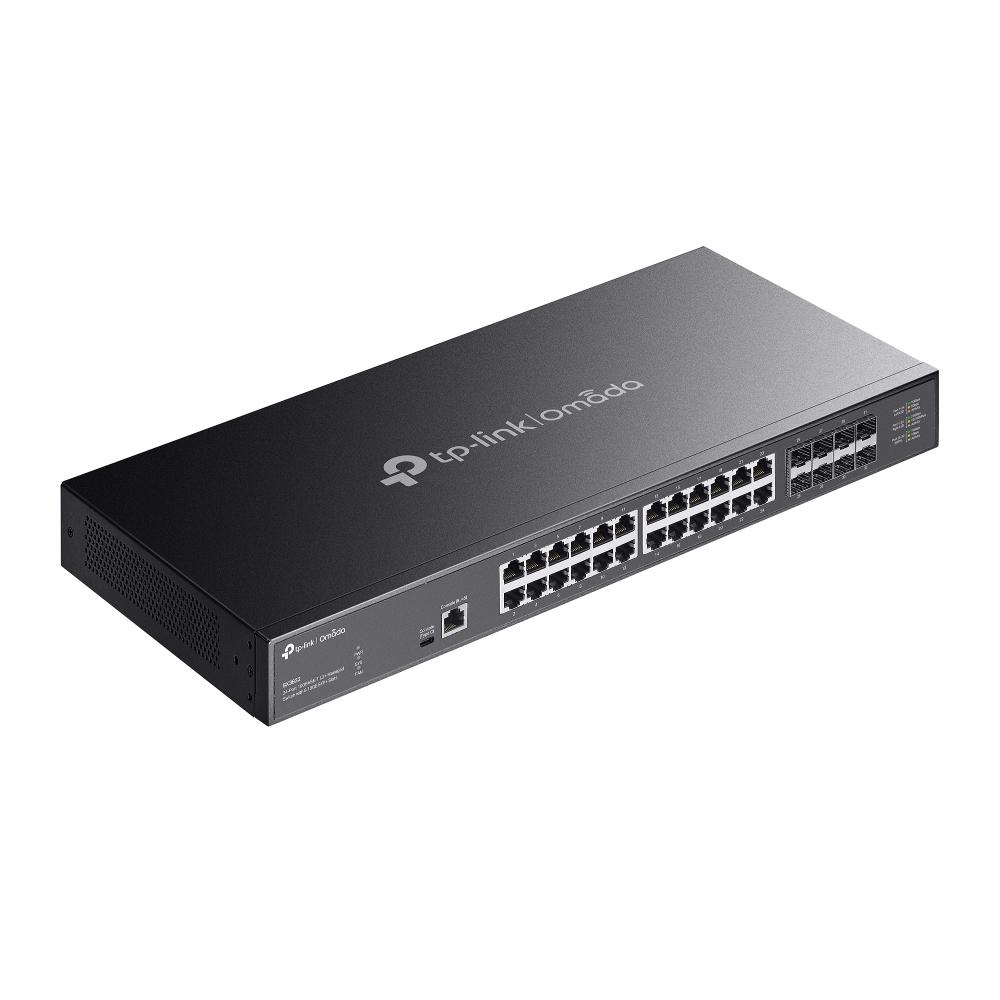

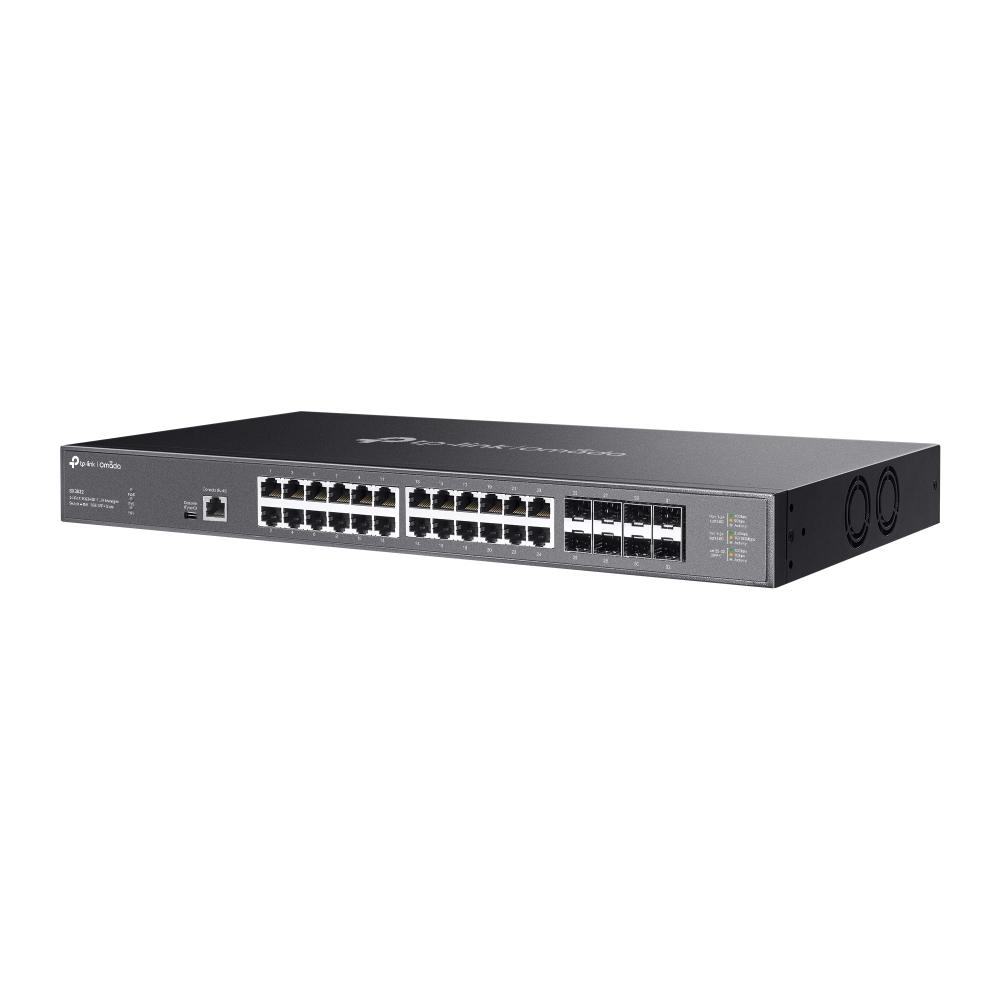

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

(0)No Reviews yet
  • SKU: SX3832
$1,299.99

Out of Stock

 Open chat or call us for stock status

Product Information

Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Features:

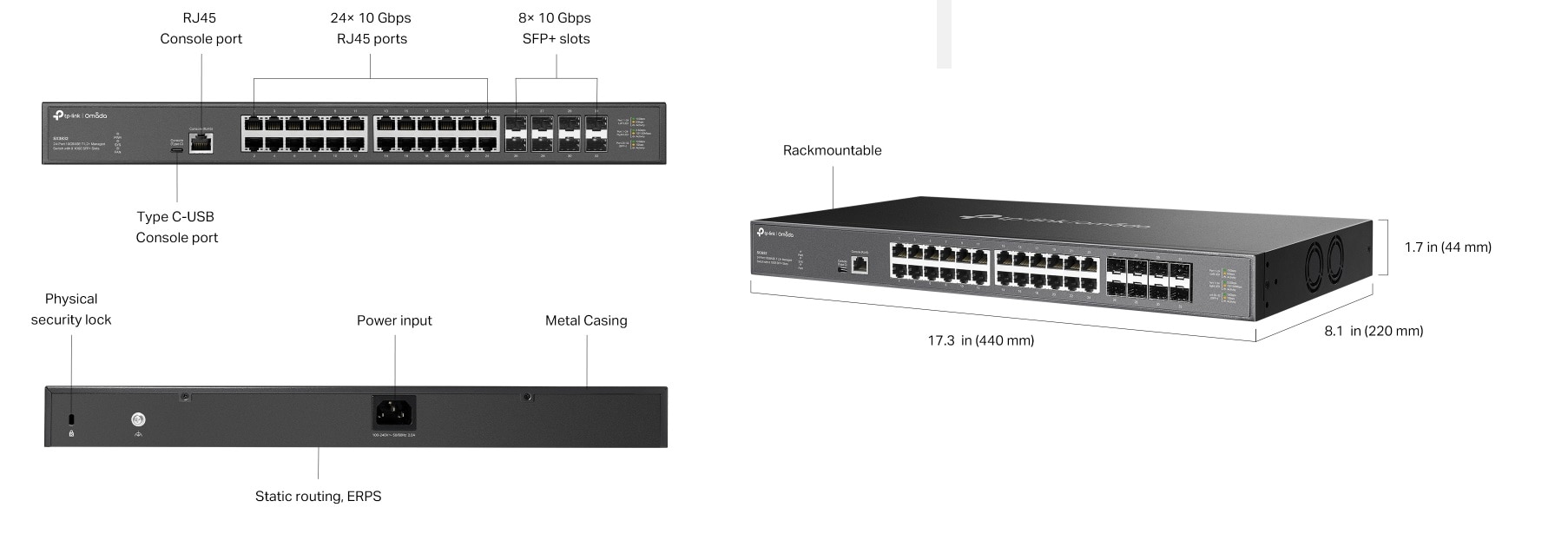

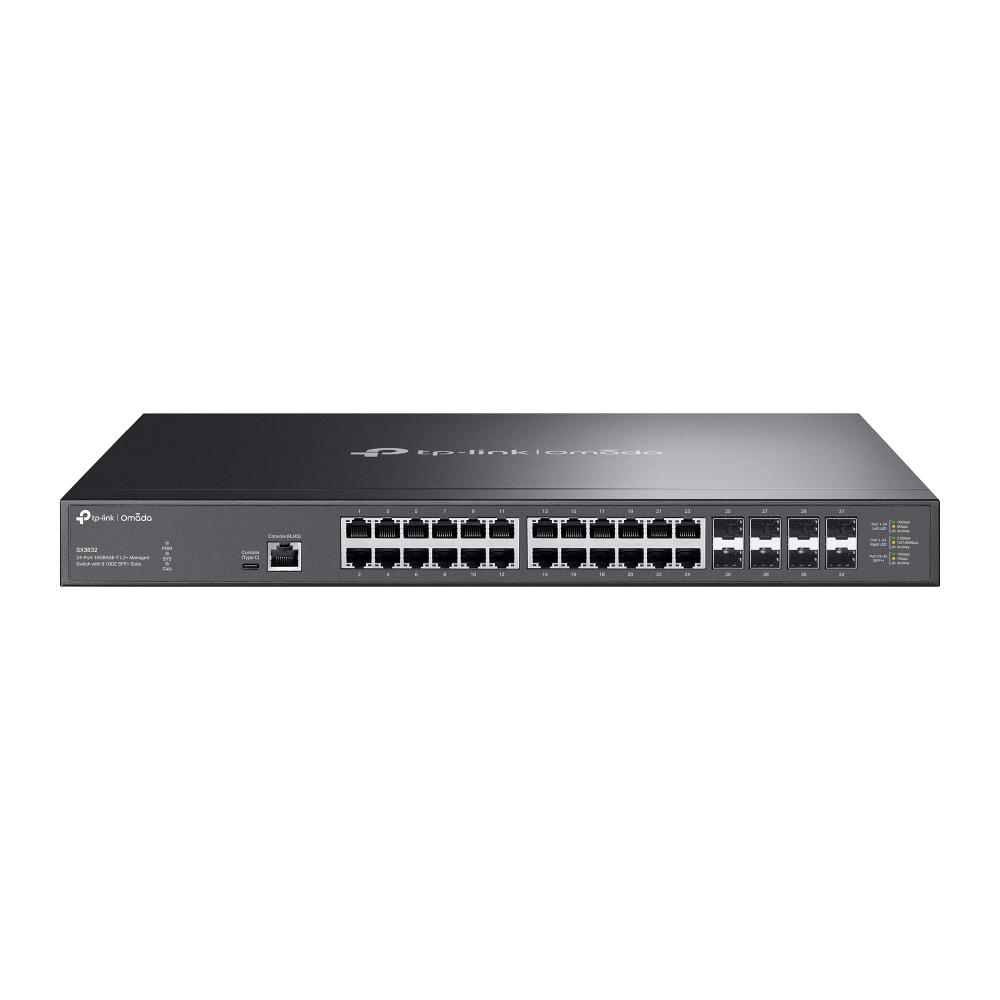

  • 24× 1/2.5/5/10 Gbps RJ45 ports
  • 8× 1/10 Gbps SFP+ slots
  • 640 Gbps switching capacity
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Specifications

Specifications SX3832

Interface24 100 M/1 G/2.5 G/5 G/10 Gbps RJ45 Ports 8 1/10GE SFP+ Slots*
Console1 RJ45 Console Port, 1 USB Type C Console Port
Flash32 MB
DRAM512 MB
Port StandardIEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3u: 100BASE-X Fast Ethernet (UTP/STP) IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3an: 10GBASE-T 10G Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3bz: 2.5GBASE-T 2.5G Ethernet IEEE 802.3bz: 5GBASE-T 5G Ethernet IEEE 802.3ae: 10GBASE-SR/LR 10G Ethernet (Optical fiber) IEEE 802.3x: Flow Control
Performance
Switching Capacity640 Gbps
Packet Forwarding Rate240 Mpps
Packet Buffer24 Mbit
MAC Address Table32 K
Transmission MethodStore and Forward
Jumbo Frame9 KB
Physical & Environmet
Power Supply100-240 V AC~50/60 Hz
Max Power Consumption104.9 W (@110V/60Hz 25 °C ) 106.5 W (@220V/50Hz 25 °C)
Max Heat Dissipation357.81 BTU/hr (@110 V/60 Hz 25 °C) 363.23 BTU/hr (@220 V/50 Hz 25 °C)
Standby Power Consumption34.21W max (@110 V/60 Hz 25 °C) 34.19W max (@220 V/50 Hz 25 °C)
NoiseMin: 36 dBA @1 m 25 °C Max: 41 dBA @1 m 25 °C
Dimensions (W x D x H)17.3 × 8.6 × 1.7 in (440 × 220 × 44 mm)
Fan Quantity2
Surge ProtectionService port: ±6 kV in common mode Power port: ±4 kV in differential mode; ±4 kV in common mode
MTBF568,258 h @ 25 °C
InstallationRack Mountable
Operating Temperature-5 °C to 50 °C (23 °F to 122 °F)
Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity10% to 90% RH, non-condensing
Storage Humidity5% to 90% RH, non-condensing
CertificationCE, FCC, RoHS
Software Features
SDN Support• Support Omada Hardware Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Unified Configuration
• Reboot Schedule
L3 Features• 128 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
- 128 static entries
• 510 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
- DHCP interface relay
- DHCP VLAN relay
• DHCP L2 Relay
L2 Features• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU
Protect, Root Protect, Loop Protect
• Loopback Detection
- Port based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast• Supports 4000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries
per profile
VLAN• VLAN Group (802.1q VLAN)
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN entries: 30
• Protocol VLAN: Protocol Template 16, Protocol
VLAN 12
• GVRP
• VLAN VPN
- VLAN Mapping
- VLAN Replace
• Voice VLAN
QoS• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
ACL• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
• Combined ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN
• Time-based ACL
Security• IP-MAC-Port Binding
-512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
-512 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DoS Defend
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm
Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support RADIUS authentication and
accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
ISP Features• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• PPPoE ID Insertion
• ERPS
• Device Link Detect Protocol (DLDP)
• sFlow
• DDM
Management• Web-based GUI
• Command Line Interface (CLI) through
consoleport, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• IEEE802.3az Energy Efficient Ethernet (EEE)
IPv6 Support• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- HTTP by IPv6
- SSL by IPv6
- Telnet by IPv6
- SSH by IPv6
- TFTP by IPv6
- NTP by IPv6
- Syslog by IPv6
- Ping by IPv6
- Tracert by IPv6
MIBs• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• RADIUS Accounting Client MIB (RFC2620)
• RADIUS Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link Private MIB
