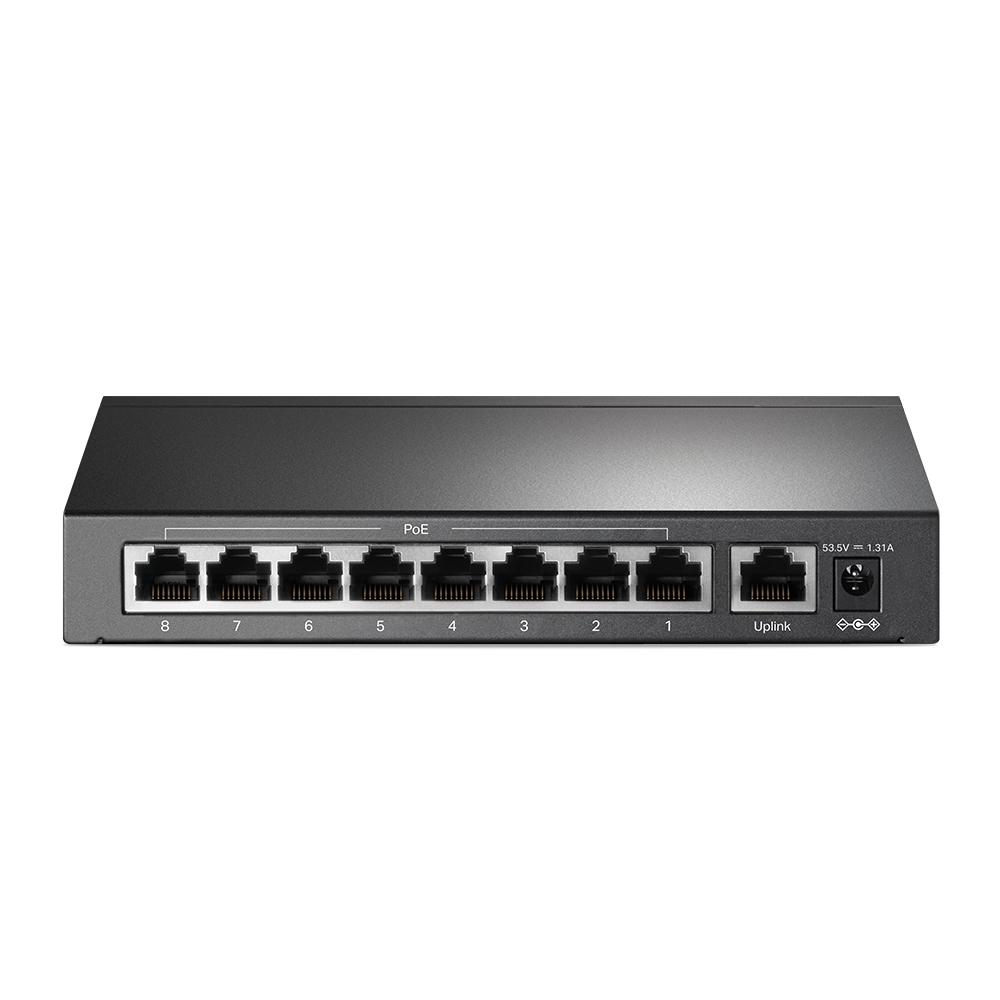

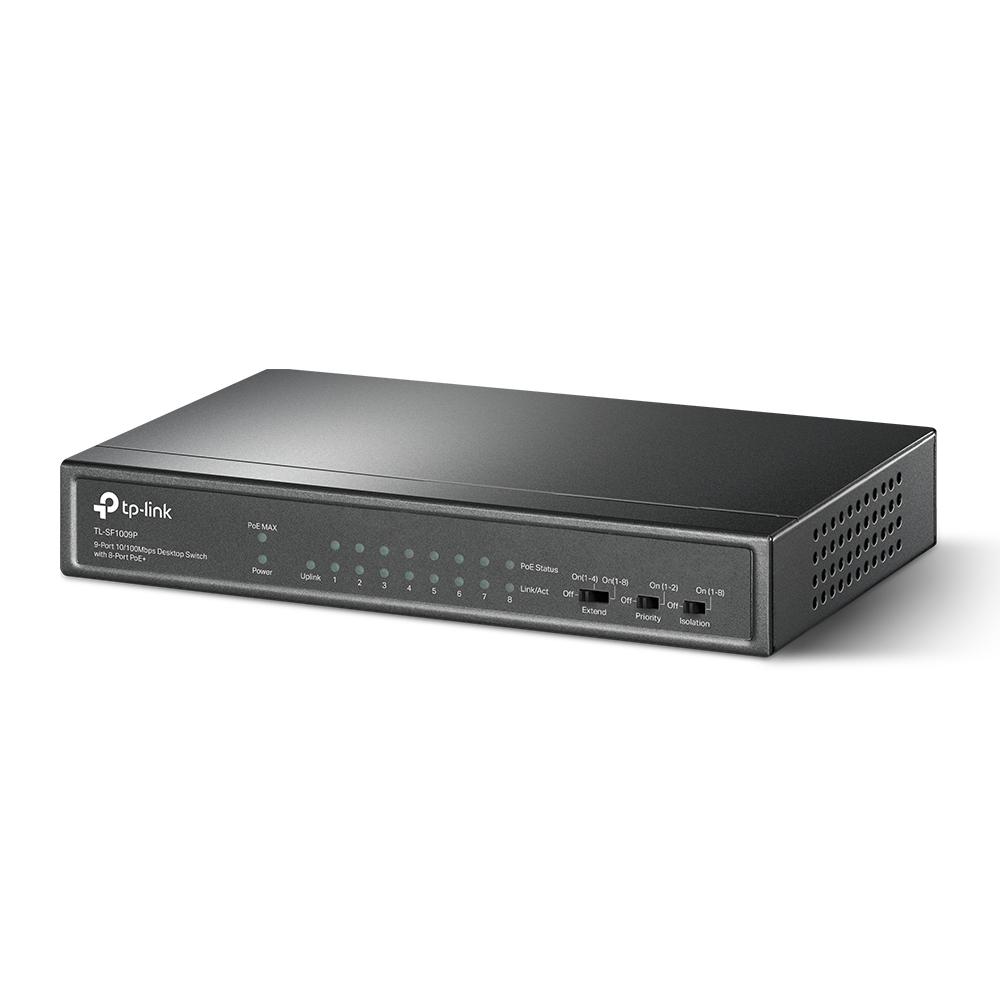

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- SKU: TL-SF1009P
$49.99
- Manufacturer: TP-Link
- Data Sheet: Download
Product Information

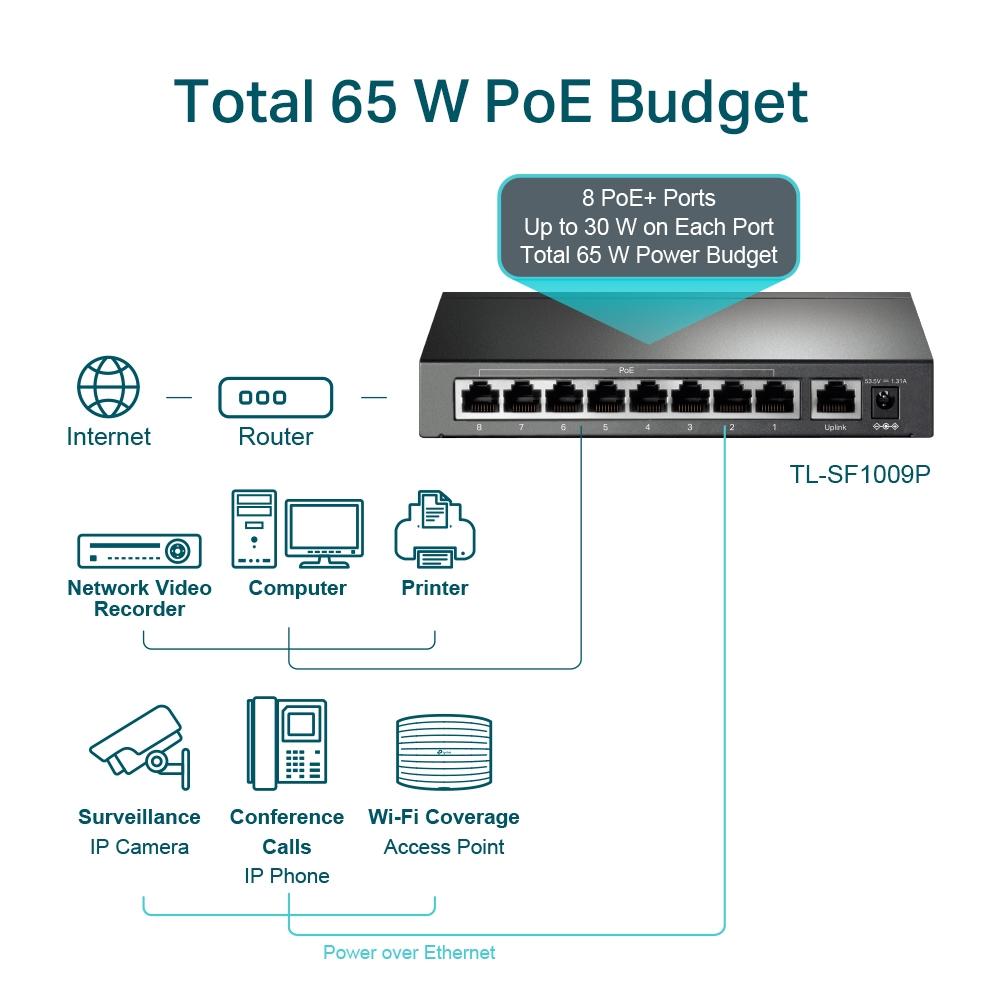

9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+ PORT: 8× 10/100 Mbps PoE+ Ports, 1× 10/100 Mbps Non-PoE Ports SPEC: 802.3at/af, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, Plug and Play
Specifications
Specifications TL-SF1009P
| HARDWARE | |
| Interface | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 1.3392 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W |
| Backbound Bandwidth | 1.8 Gbps |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.8 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption | • 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | • 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected) |
| SOFTWARE | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
