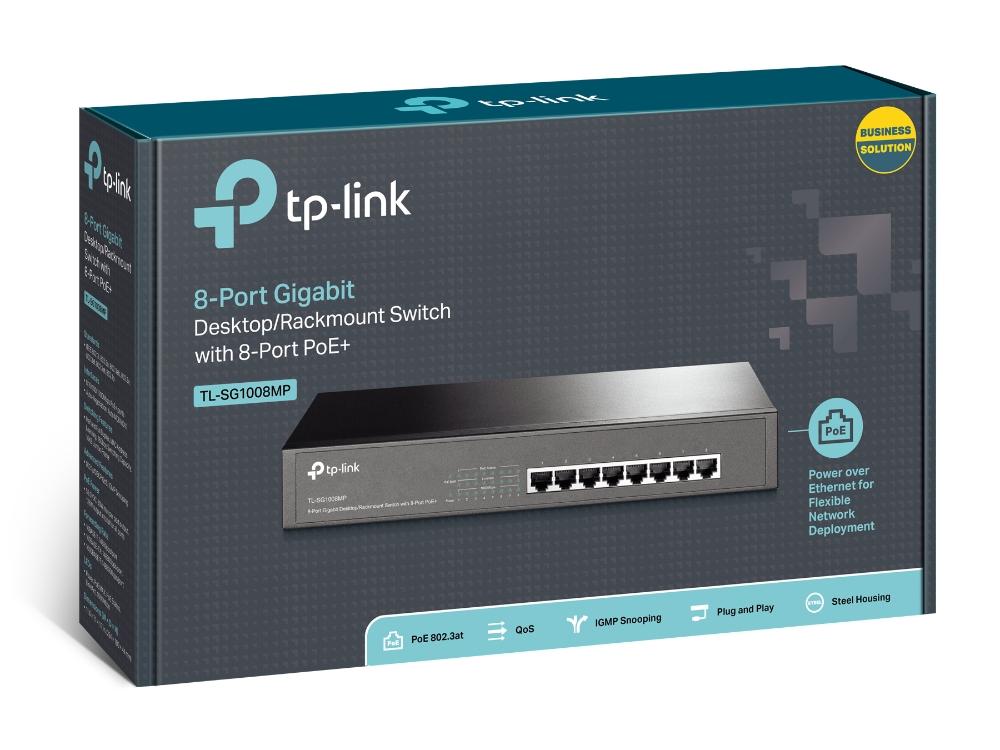

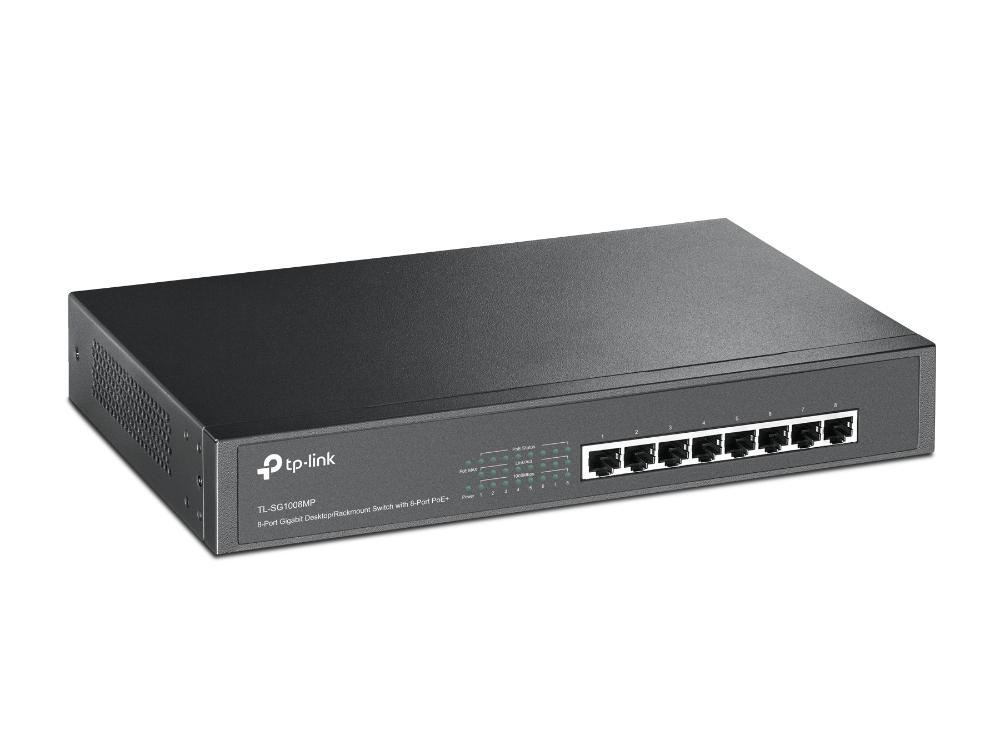

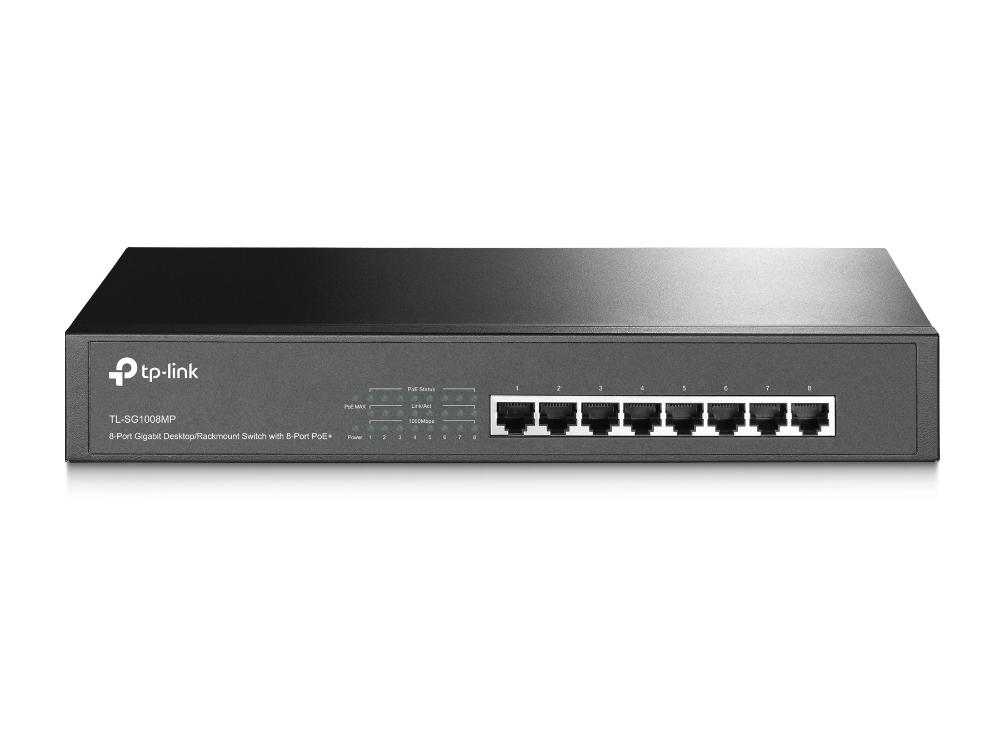

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

(0)No Reviews yet
  • SKU: TL-SG1008MP
$109.99
  • Manufacturer: TP-Link
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status
Shipping Policies | Returns/RMA Policies

Product Information

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3at/af, 153 W PoE Power, 1U 13-inch Rack-mountable Steel Case FEATURE: Plug and Play

Specifications

HARDWARE FEATURES
Interface8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity1
Physical Security LockNo

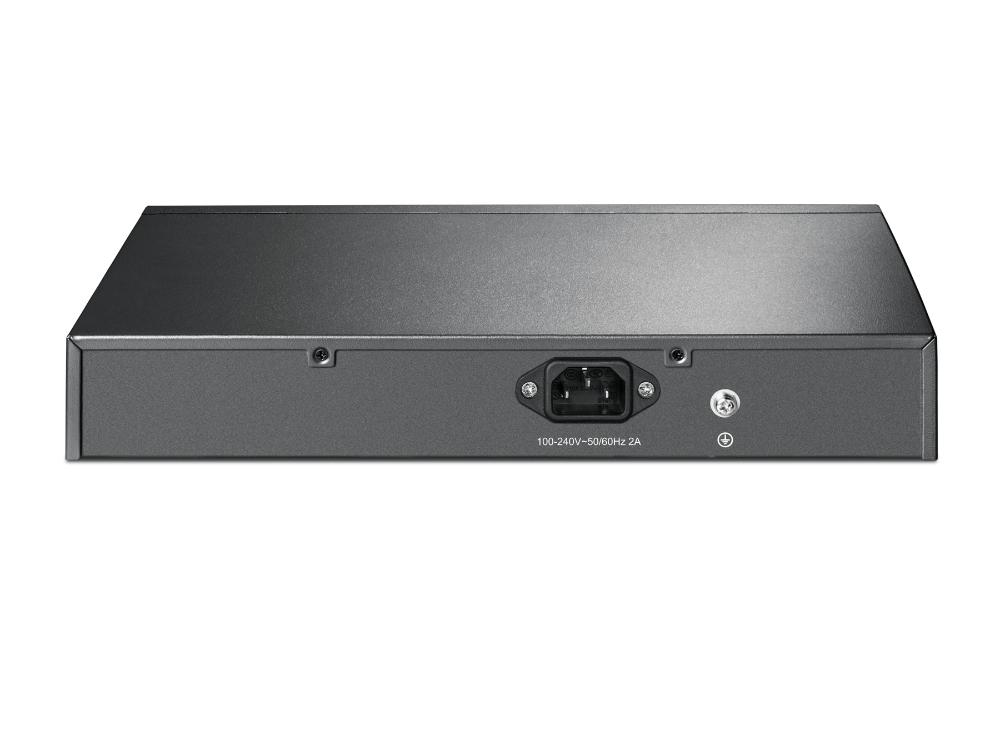

Power Supply100-240VAC, 50/60Hz
PoE+ Ports(RJ45)Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth16Gbps
Mac Address Table4K
Buffer Size1.5Mbits
Dimensions ( W x D x H )11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting13" and 19" 1U rack mountable
Max Power Consumption9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced FeaturesCompatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer MethodStore-And-Forward
OTHERS
CertificationFCC, RoHS
Package ContentsTL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
