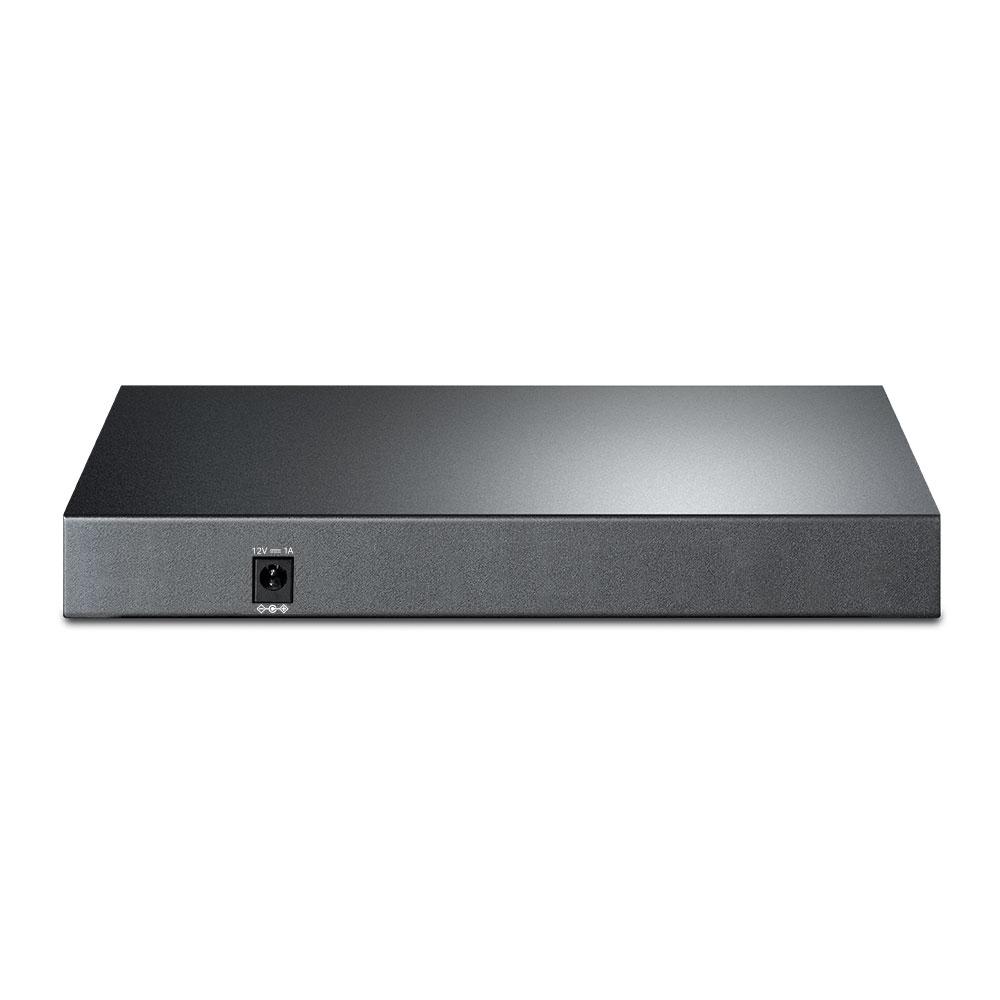

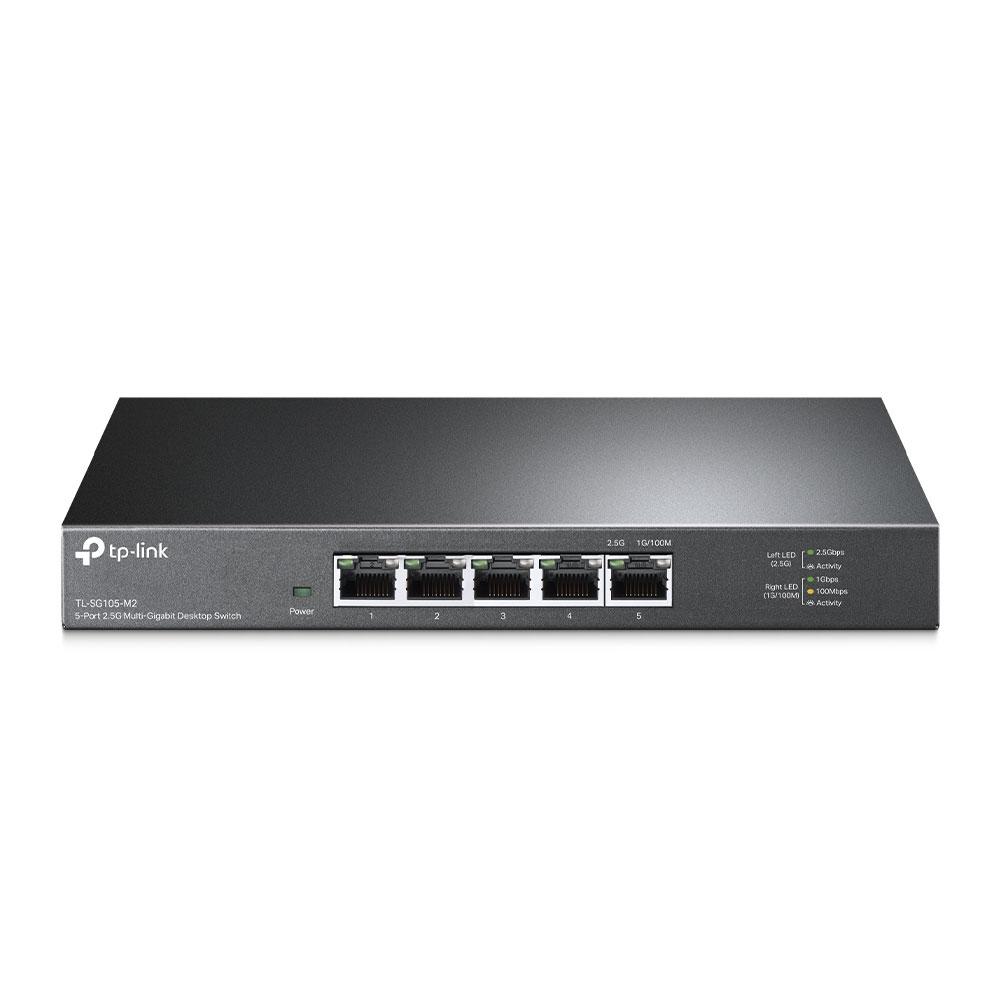

TP-Link 5-Port 2.5G Multi-Gigabit Desktop Switch
- SKU: TL-SG105-M2
$69.99
Product Information
5-Port 2.5G Multi-Gigabit Desktop Switch PORT: 5× 2.5G RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play
Specifications
Specifications TL-SG105-M2
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 1 A) |
| LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption | 12.11 W |
| Max Heat Dissipation | 41.32 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 25 Gbps |
| Packet Forwarding Rate | 18.6 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC ,RoHS |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
