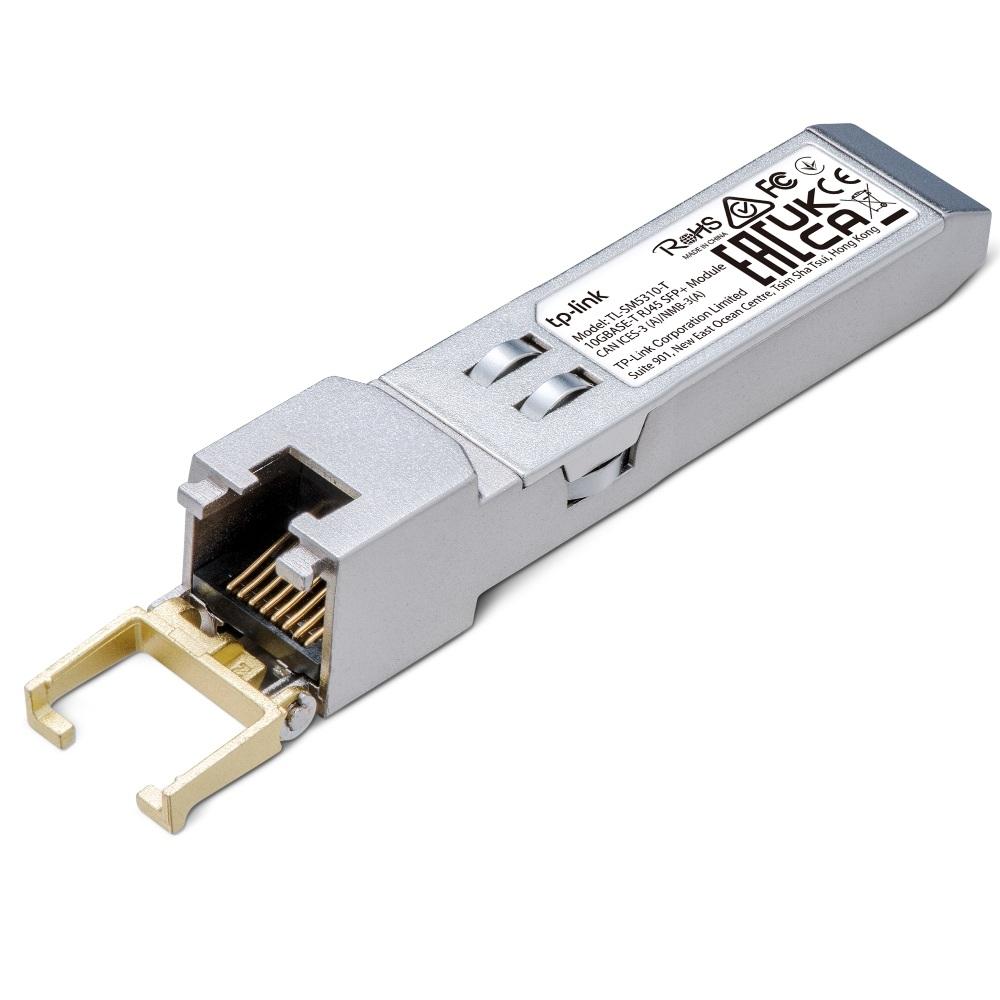

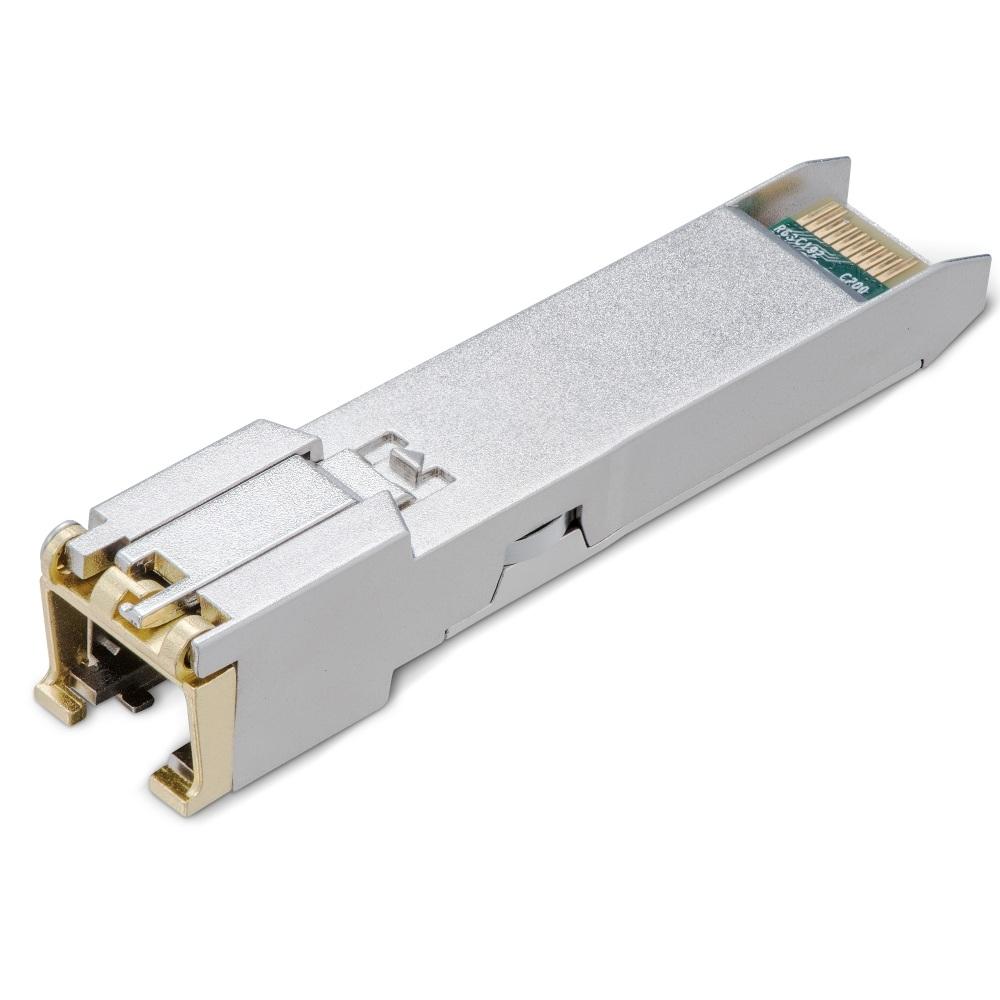

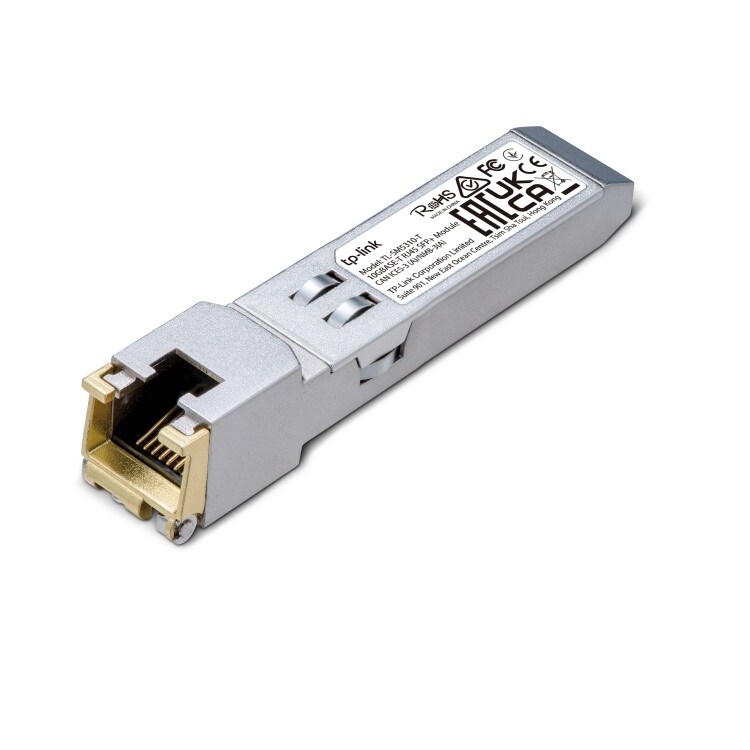

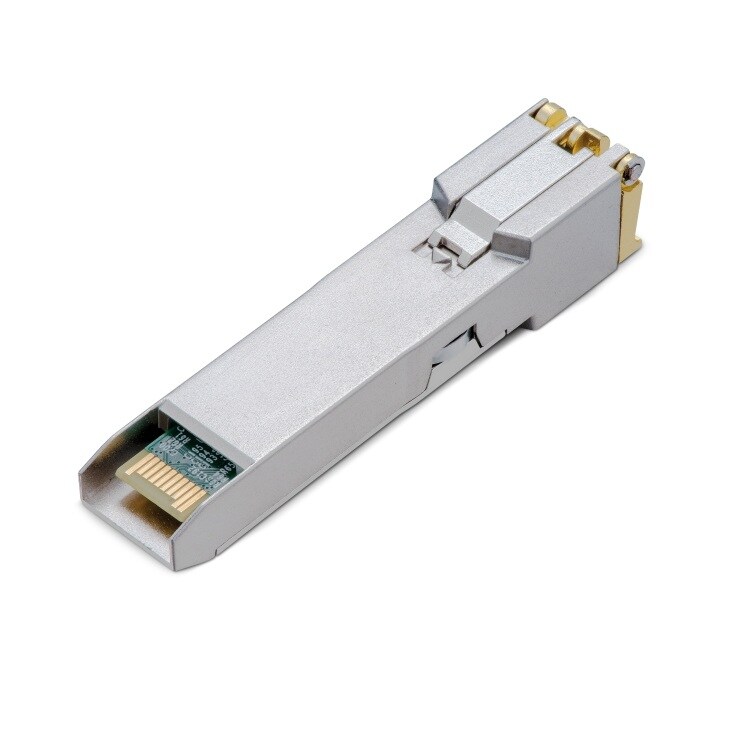

TP-Link Omada 10GBASE-T RJ45 SFP+ Module,Up to 30 m Distance
- SKU: SM5310-T
$44.99
Product Information
Omada 10GBASE-T RJ45 SFP+ Module,Up to 30 m Distance
Direct and lighting fast 10G, from Fiber to RJ45 Port. Insert this module for an easy and quick conversion between SFP+ fiber and 10G Ethernet. It covers up to 30m for various applications.
A plug and play design makes for easy deployment, and the high-quality metal casing ensures strength and reliability for a long time, maintining stable connection in a wide range of environments.
Product Features- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TXÂ
- Transmit data up to 30m at 10Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Commercial Product Operating Temperature Range: 0-70°C
- Fully Metallic Enclosure for Low EMI
- 10G BASE-T RJ45 SFP+ Module TL-SM5310-T
- Installation Guide
Specifications
Specifications SM5310-T
| Weight | 0.06 lbs |
| Dimensions (L x W x H) | 2.65 x 0.54 x 0.54 inch |
| Hot Swappable | Yes |
| TRANSCEIVER | |
| Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an |
| Power Supply | 3.3V |
| Max. Cable Length | 100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m) |
| Data Rate | 10.3 Gbps |
| Port Type | 1× 10G RJ45 Port |
| Safety & Emission | FCC, CE, RoHS |
| Environment | |
| Operating Temperature | 0–70 ℃ (32–158 ℉) |
| Storage Temperature | -40–85 ℃ (-40–185 ℉) |
