TP-Link VIGI 8 Channel PoE+ Network Video Recorder
- SKU: VIGI NVR2008H-8MP
Product Information
VIGI 8 Channel PoE+ Network Video Recorder
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
8-Channel Live View
Ensure a real-time display of every monitored area on one screen and take everything under your control.
4K Video Output
Show more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels
8× PoE+ Ports for Simple Deployment
Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
Easy Management
Seamlessly manage the NVR and connected cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. Customize the management systems to suit your specific needs.
Practical Playback
Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
Mass Storage
2 SATA interfaces (up to 16 TB per each HDD) ensure to store and secure your data for quick, convenient access.
Features:
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget△
- 4-ch @ 4MP/ 8-ch @ 2MP Decoding Capability
- 8-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Specifications
Specifications VIGI NVR2008H-8MP
| VIDEO AND AUDIO | |
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-Channel† |
| Capability | • 25fps: • 30fps: |
| RECORD MANAGEMENT | |
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 93 W△ Available for All PoE+ Ports, 30 W Max per Port |
| ALARM | |
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |

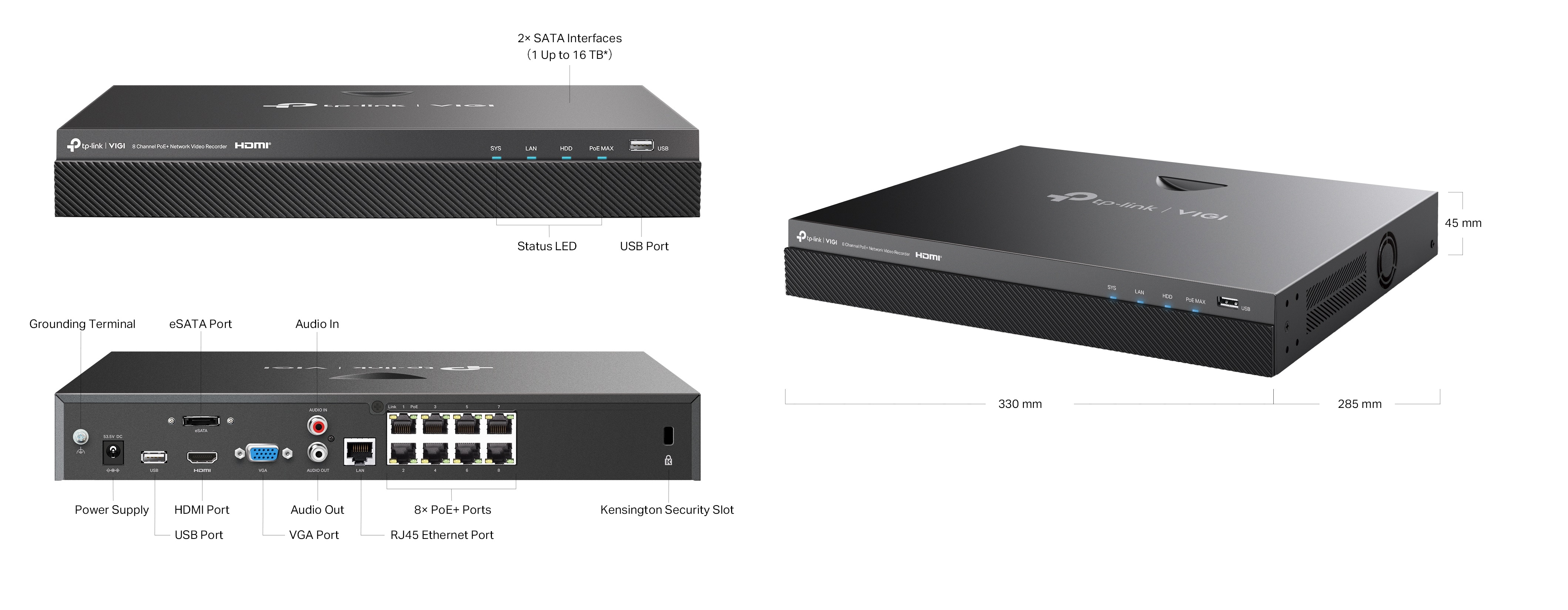

| Dimensions( W X D X H ) | 330 × 285 × 45 mm (12.99" x 11.22" x 1.77" inch) |
| Net Weight | 2.1 Kg (4.62 lbs) |
| Gross Weight | 4.1 Kg (9.03 lbs) |
| Power Supply | 53.5V DC/2.43A |
| Max. Power Consumption | • 4.9 W△ (Without Disk) • 35 W△ (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
