TP-Link VIGI 16 Channel PoE+ Network Video Recorder
- SKU: VIGI NVR2016H-16MP
Product Information

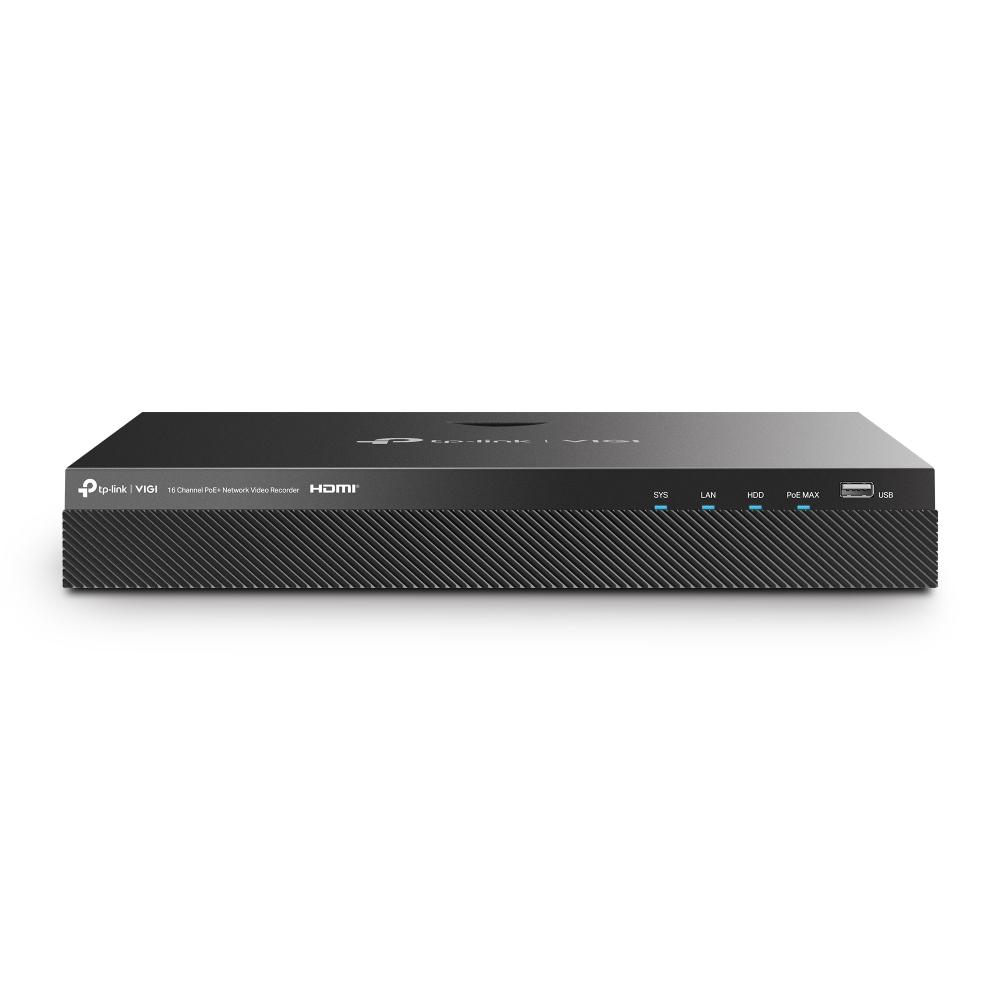

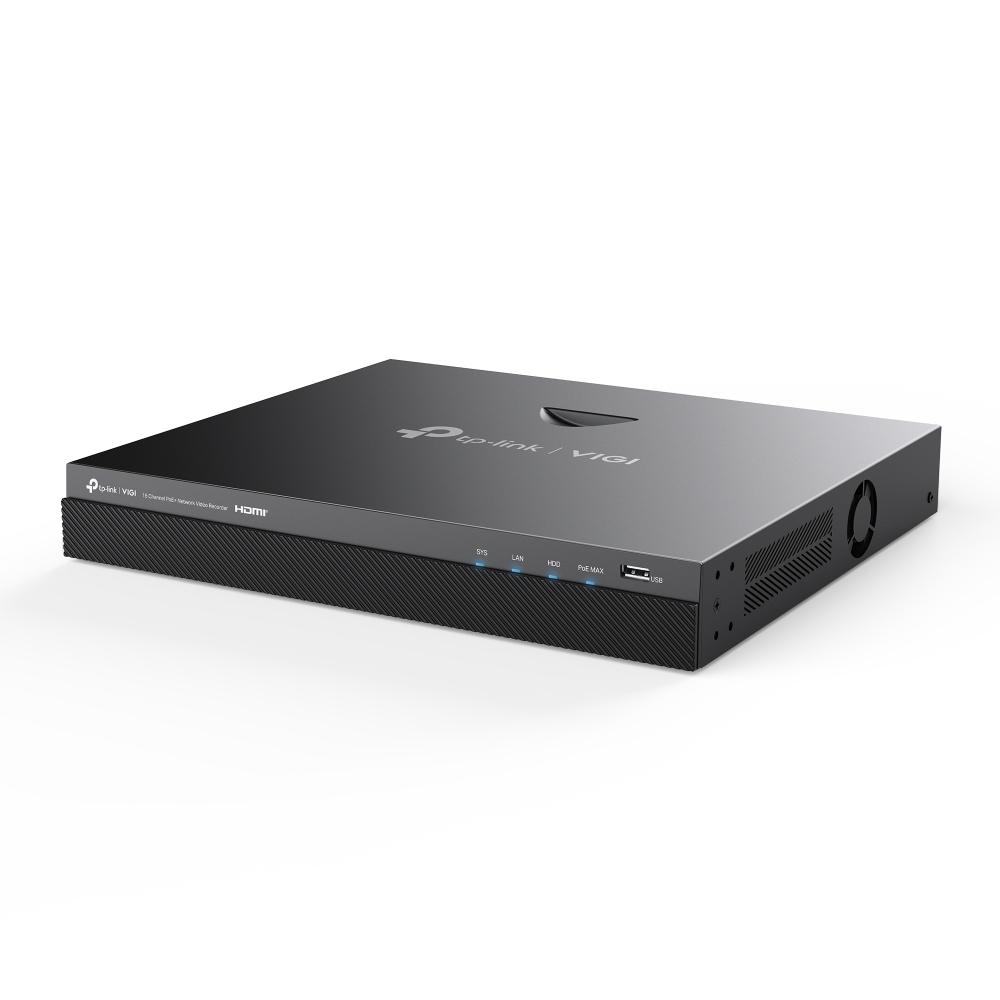

VIGI 16 Channel PoE+ Network Video Recorder
Every Angle All on One Screen 4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†
Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing Footage is Faster than Ever 16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No Need to Check Long Compatibility Lists, ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △
Auto Initialize for Quick Configuration
Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.
Security for Every Hour and Every Day 27/4 Continuous Recording
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Features:
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 32 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
Specifications
Specifications VIGI NVR2016H-16MP
VIDEO AND AUDIO | |
IP Video Input | 16-Channel |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
Video Output Mode | HDMI/VGA Simultaneous Output |
Multi-View Display | 1/4/6/8/9/16 |
DECODING | |
Audio Compression | G.711A/G.711U/G.726 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous Playback | 16-Channel |
Capability | • 25fps: • 30fps: |
RECORD MANAGEMENT | |
Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
Backup Mode | • Regular Backup • Video Clip Backup |
Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
NETWORK | |
Protocol | UPnP (Plug and Play), NTP (Network Timing) |
Mobile Phone Access | Android, iOS |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF, CGI |

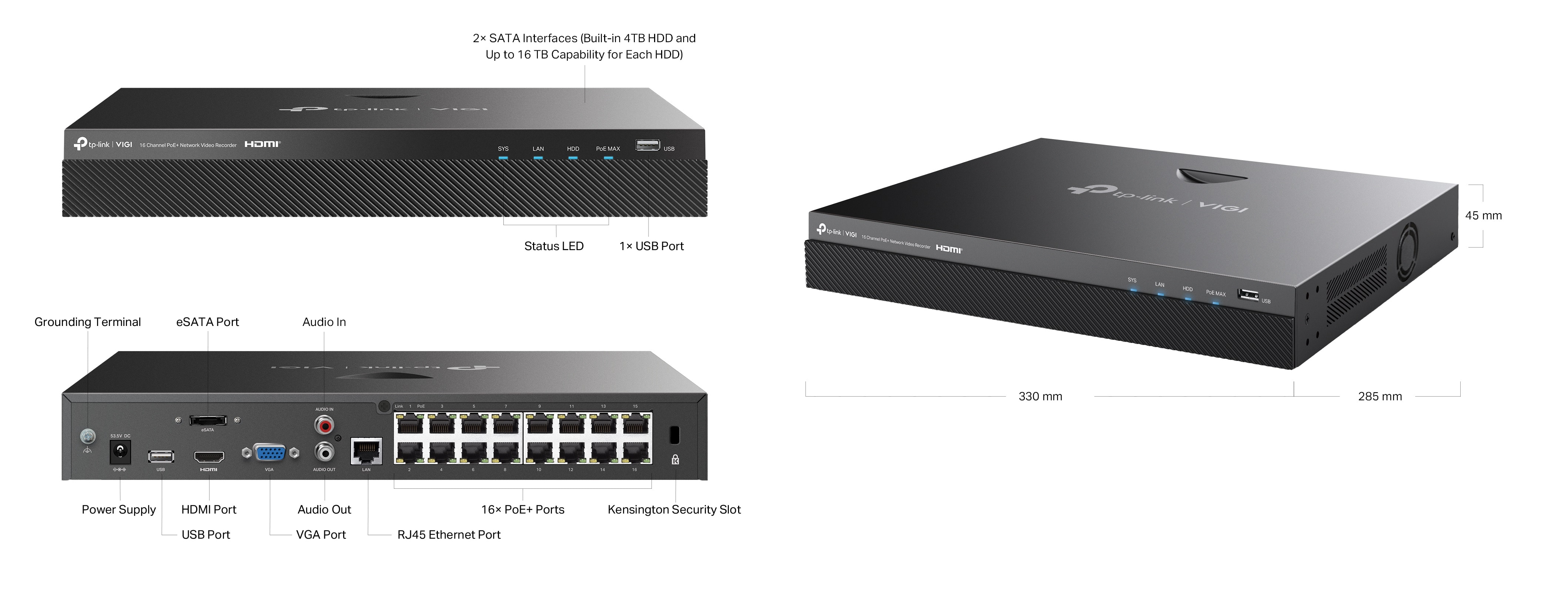

EXTERNAL INTERFACE | |
Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
Audio Interface | 1, Audio In; 1, Audio Out |
Alarm In/Out | N/A |
Serial Interface | N/A |
Power | 1× DC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | 1 |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
SATA | 2 SATA Interfaces |
Capacity | Up to 16 TB Capacity for Each HDD |
POE | |
Standard | 802.3at/af Compliant |
Interface | 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
PoE Budget | 140 W Available for All PoE+ Ports, 30 W Max per Port |
ALARM | |
General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame |
Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception |
Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
GENERAL | |
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |
Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 330 × 285 × 45 mm (12.99" x 11.22" x 1.77" inch) |
Net Weight | 2.1 Kg (4.62 lbs) |
Gross Weight | 4.1 Kg (9.03 lbs) |
Power Supply | 53.5V DC/3.37A |
Max. Power Consumption | • 6.2 W (Without Disk) • 40 W (With Disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
