TP-Link 1-Port XGS-PON Optical Network Terminal 10G LAN
- SKU: XGZ030
$99.99
Product Information

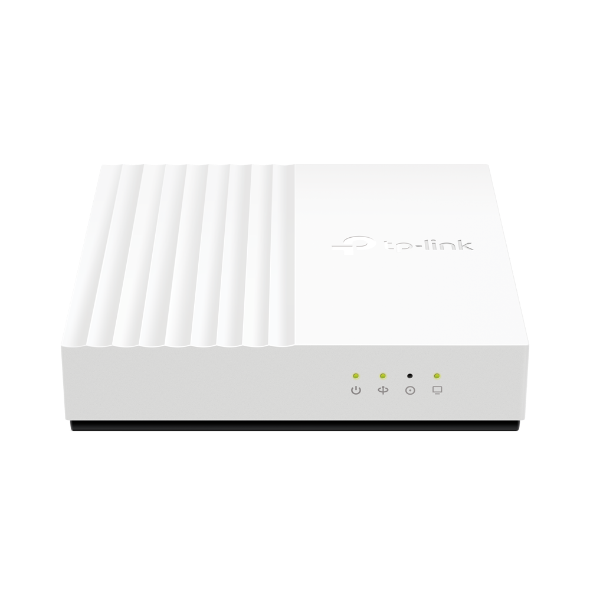

TP-Link XGS-PON Optical Network Terminal XGZ030
TP-Link‘s XGZ030 XGS-PON Terminal provides up to 10 Gbps of uplink and downlink bandwidth simultaneously. It meets the higher bandwidth demand of various high-bandwidth services. It also reduces both capital and operating expenditure, protecting ISPs' existing infrastructure investments.
Product Features
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.
- 10G Wired Connections:Â 1x 10GE LAN port enables ultra-fast network sharing and connections.
- Ease of Use:Â Quick and hassle-free installation with intelligent power-saving.
- Remote Management:Â Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
Product Includes
- XGS-PON Terminal
- Power Adapter
- RJ45 Ethernet Cable
- Installation Guide
Specifications
Specifications EAP670
| HARDWARE FEATURES | |
| External Power Supply | 9V/0.85A |

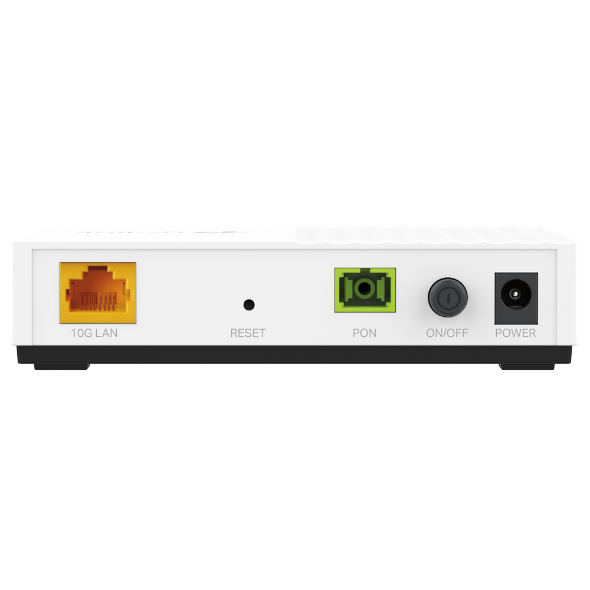

| Interface | 1 XGS-PON Port 1 10G RJ45 Port |
| Button | 1 Power On/Off Button 1 Reset Button |
| Dimensions ( W x D x H ) | 4.72 × 4.72 × 1.1 in (120 × 120 × 27.85 mm) |
| IEEE Standards | IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w IEEE 802.3, 802.3.u, 802.3ab, 802.3x |
| Data Rates | Downstream Speeds: 10 Gbps* Upstream Speeds: 10 Gbps* |
| Optical Module | Class E1 |
| Wavelength | Upstream: 1270 nm Downstream: 1577 nm |
| Transmitter | DFB laser |
| Receiver | Super-TIA |
| Distance | 0–20 Km Max |
| GPON Standards | ITU-T G.9907.1, ITU-T G.988 |
| SOFTWARE FEATURES | |
| Management Features | AES encryption Packet filter based on VLAN |
| Security | • AES encryption • Packet filter based on VLAN |
| Advanced Features | Upstream and Downstream FEC, Dynamic Bandwidth Allocation (DBA) support NSR/SR, Up to 32 T-CONTs and 256 GEM ports, Optical power detection, Dying Gasp, Terminal Silent mechanism 802.3az EEE energy conservation Schedule Reboot, LED Schedule |
| VLAN | 802.1Q tag VLAN, Q in Q VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and password |
| IGMP | IGMP v1/v2/v3 |
| OTHERS | |
| Package Contents | XGS-PON Terminal Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
| Certifications | CE, FCC, RoHS |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
