TP-Link GPON ONU SFP Module 20km 1310nm / 1490nm
- SKU: XM60A
- Manufacturer: TP-Link
- Data Sheet: Download
Product Information

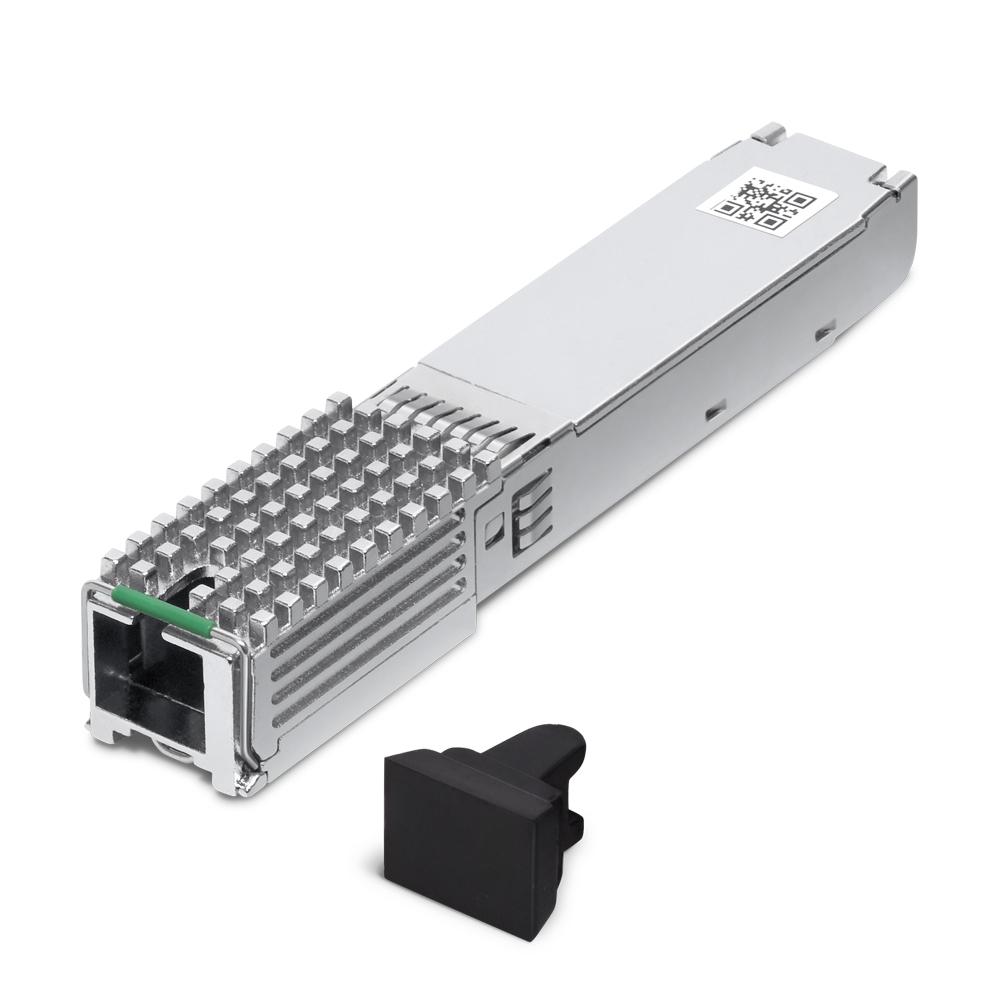

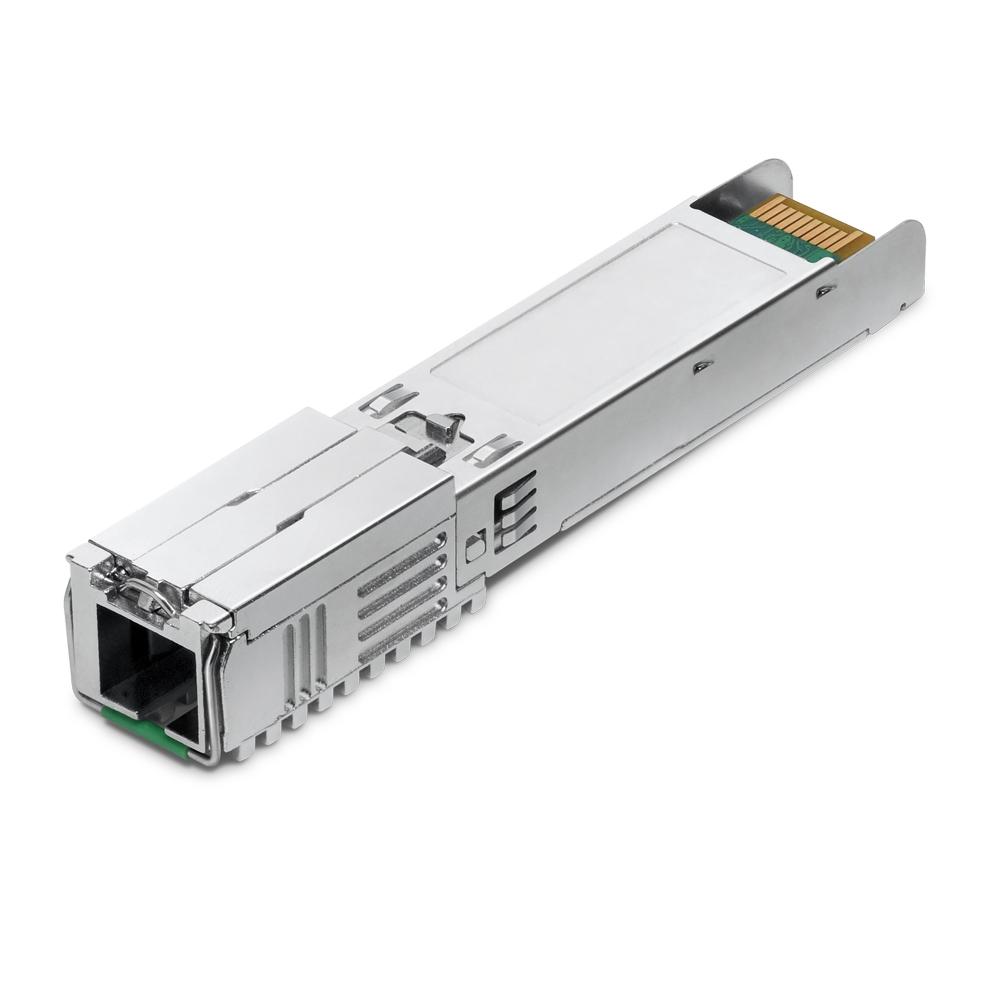

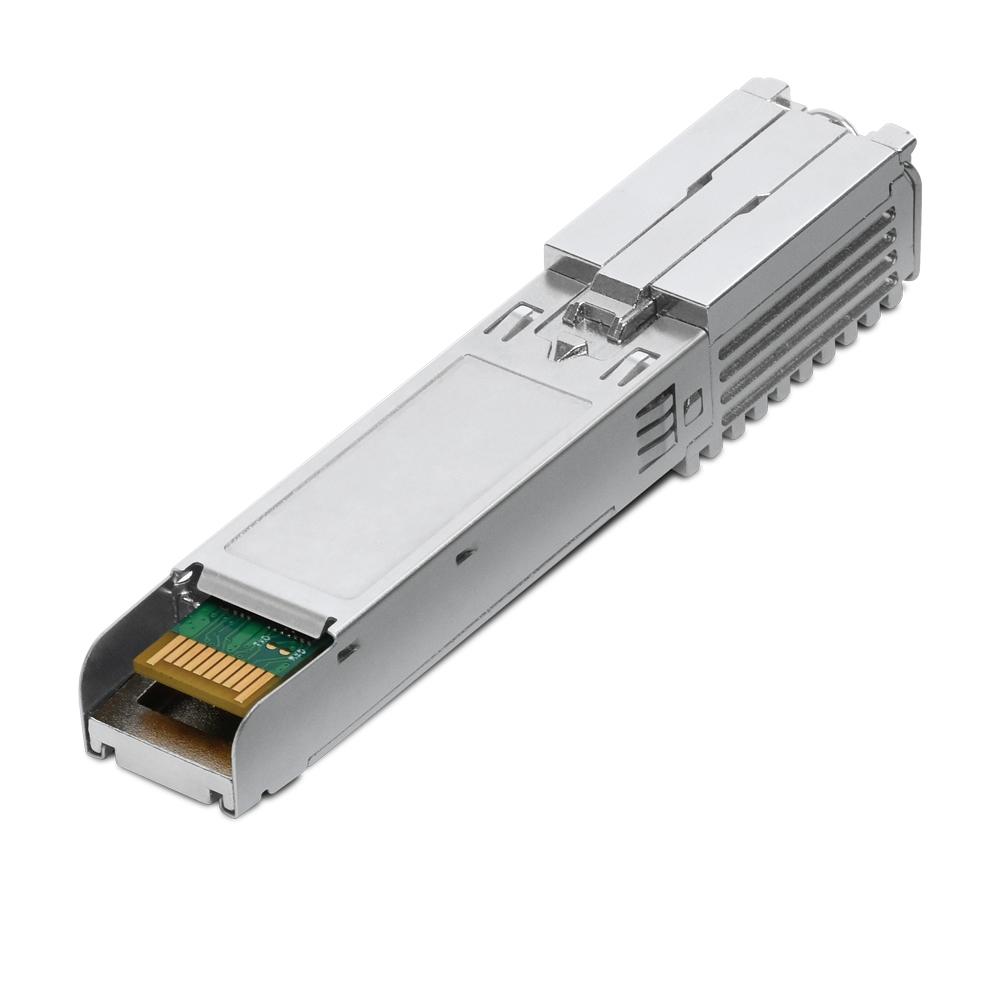

GPON ONU SFP Module XM60A
TP-Link’s XM60A is a GPON SFP ONU Module designed with the G.984 Standard and the Small Form Pluggable Multi-Source Agreement.
As a cost-effective GPON customer premise system, it can provide 1.244Gbps upstream & 2.488Gbps downstream Broad-band services, and the data link is up to 20 km in 9/125μm Single-Mode Fiber (SMF).
The device is G.984.x (1/2/3/4/5) and G.988 compliant and integrates a bidirectional optical transceiver function with a GPON media access control (MAC) layer function.
It provides a Gigabit Ethernet (GigE) service to any device capable of hosting this SFP, such as Ethernet switches, wireless backhaul equipment, Ethernet access devices (EADs), routers, remote digital subscriber line access modules (DSLAMs), and other customer premises equipment (CPE).
Features:
- Enables multi-gig fiber internet connections up to 2.488 Gbps downstream and 1.244 Gbps upstream.*
- Supports 2.5G and 1G Ethernet UNI modes for flexible internet access.
- Hot swapping feature allows quick and easy installation and application.
- Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.
Specifications
Specifications XM60A
| GPON SFP MODULE | |
| Wavelength | Tx: 1310 nm Rx: 1490 nm |
| Connector | SC/APC |
| Fiber Type | Single Fiber (9/125um) |
| Data Rate | Downstream Data Rate: 2.488 Gbps* Upstream Data Rate: 1.244 Gbps* |
| Power Level | Class C+ |
| Receiver Sensitivity | -28 dBm |
| Overload Power | - 8 dBm |
| Transmission Distance | Max. 20 km |
| Hot Swap | Yes |
| Nominal Voltage | 3.3 V (< ± 5％) |
| Diagnostic Function | Monitors parameters such as voltage, transceiver power, and temperature |
| Dimension (W x D x H) | 3.20 x 4.82 x 1.51 inch |
| Weight | 0.15 lb |
| Environmental | Operating Temperature 0˚C to 70˚C (32˚F to 158˚F) Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F) Storage Humidity 0% to 95% RH, Non-condensing Operating Humidity 5% to 80% RH, Non-condensing |
