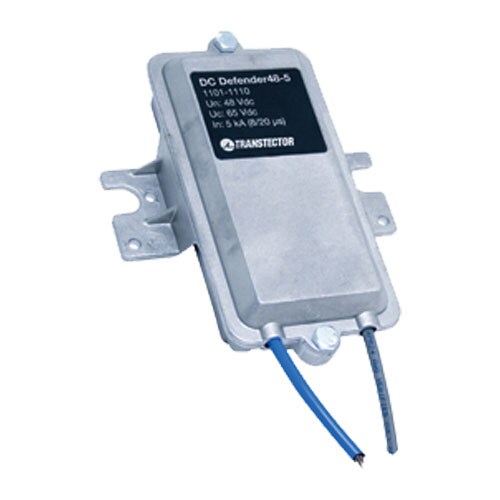

Transtector DC Defender 48VDC
- SKU: 1101-1110
$400.89 $421.99
Product Information
The DC surge protector 1101-1110 from Transtector is a UL 497B Class I/DIV II, ATEX Clamshell style SPD that utilizes state-of-the-art SASD technology to protect critical equipment that operates on a 48VDC electrical service. This surge protector provides effective protection against electrical transient surges that are generated both by external lightning events and by internal switching events and supports long-term system reliability by safely shunting high amounts of transient energy while maintaining a very low clamping voltage. Transtector DC surge protectors are avialable in stock witk same day shipping.
Product Features- UL 497B, Class I / Div. II, ATEX
- 100% SASD Protection
- Screw Terminal Block
- Pole or Wall Mount
- Industrial Automation
- Controls and Sense Loops
- Telecommunications Base Stations
- IT and Data Centers
- Wastewater Treatment
- Rail, Oil and Gas
- LED Lighting
Specifications
Specifications 1101-1110
| Weight | 1 lbs |
| Size | Width:5.69 (in) Height:7.17 (in) Depth:1.65 (in) |
| Indoor/Outdoor | Outdoor |
| Form Factor | Clamshell |
| Service Voltage | 48 Vdc |
| Service Type | Dual |
| Current Rating | 15 Amps |
| SPD Technology | SASD |
| Hazardous Location | Yes |
| Certifications | UL 497B CSA IEC 60950 ETL 60950-1 60Vdc, 15A IP54Class 1 Div 2 Groups A,B,C,D T4 Class 1 Zone 2 AEx nA IIC T4 Gc Class 1 Zone 2 Ex nA IIC T4 Gc CE Ex II 3 G Ex nA T4 Gc -40C<= Tamb +65C |
