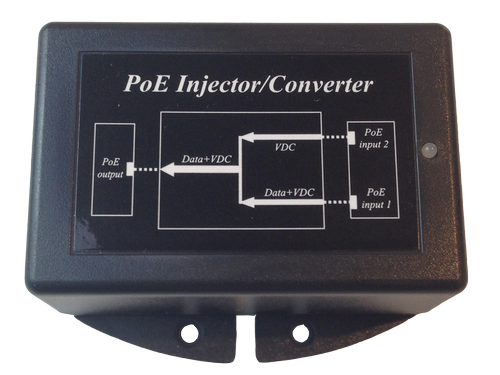

Gigabit PoE Converter. Two 802.3af input, One 802.3at Output. 30W
- SKU: POE-CONV-2AF-AT
$37.95 $39.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Gigabit PoE Converter. Two 802.3af input, One 802.3at Output. 30W
Specifications
Specifications POE-CONV-2AF-AT
| Input | Qty 2 802.3af Mode A or 48V Passive POE |
| Output | 802.3at Mode A 48V 30W, 2 Pair PoE |

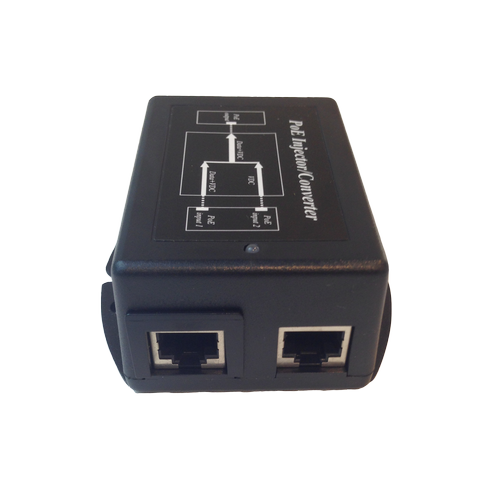

| Input Connector | Shielded RJ45 Socket x2 |

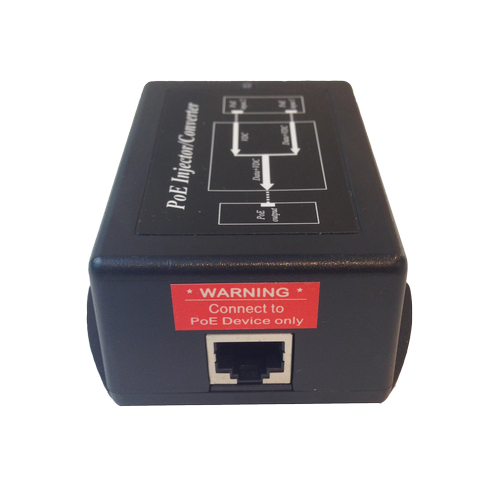

| Output Connector | Shielded RJ45 Socket |
| Load Regulation | 5% |
| Line Reg, Ripple, Noise | 1% |
| Ethernet Speed | 10/100/1000MB, GigE, Gigabit |
| LED | Blinking Red: Only 1 input powering / Solid Red: Two inputs powering / Solid Green: Output is active with device plugged in |
| Isolation Voltage | 1500VDC |
| Isolation Resistance | 100M Ohms Minimum |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity | 5% to 90% non-condensing |
