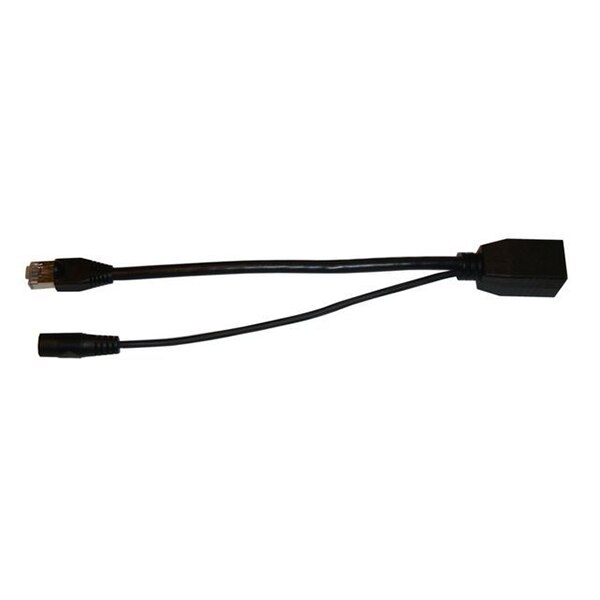

Passive Y Injector Injects DC Power on RJ45 socket pins 4,5(+) and 7,8(-). Injects PoE power to both RJ45 connectors.Shielded.Blk
- SKU: POE-YINJ-S
$3.23 $3.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Passive Y Injector Injects DC Power on RJ45 socket pins 4,5(+) and 7,8(-). Injects PoE power to both RJ45 connectors.Shielded.Blk
Specifications
Specifications POE-YINJ-S
| Materials | UL Rated Materials, Meets RoHS Requirements |
| Voltage Rating | 60VDC Maximum |
| RJ45 Jack | Shielded CAT5 Rated, Gold Plated Contacts |
| RJ45 Power Pins | 4,5(+) 7,8(-) |
| DC Jack or Plug | 5.5 x 2.1mm, Shrouded |
| DC Wire Size | 28AWG x 4 |
| CAT5 Wire Size | 24AWG x 8, Shielded |
| Cable Length | 165mm (6.5”) |
| Total Length | 254mm (10”) |
| Weight | 31 g (1.1 oz ) |
| Operating Temp | -40°C to 80°C (-40°F to 176°F) |
