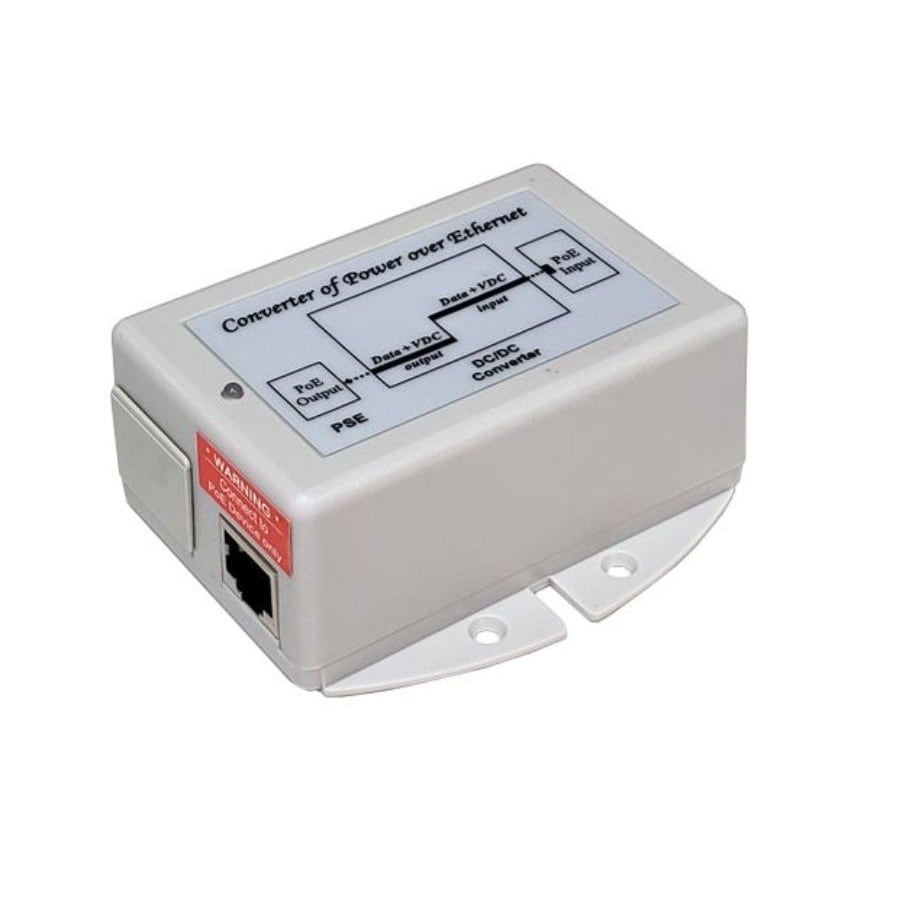

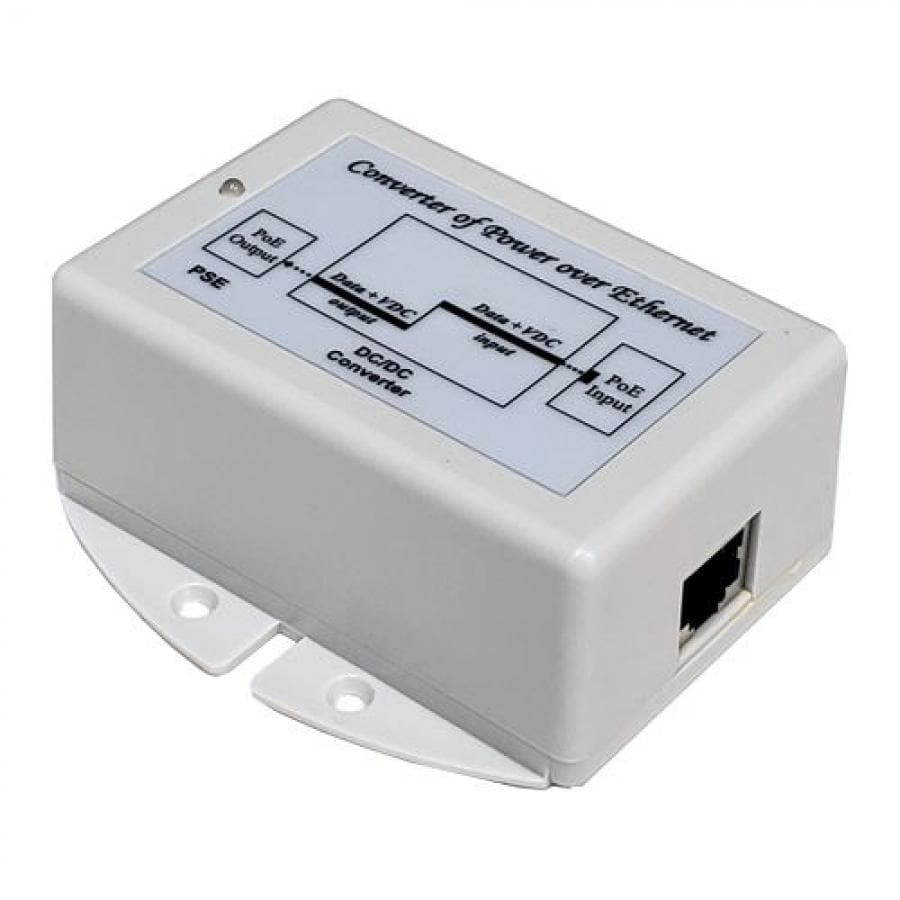

24V Passive PoE to Gigabit 802.3af/at converter. Converts 22V-36V passive PoE to 802.3af/at 35W output
- SKU: TP-POE-2456GD
$75.95 $79.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
24V Passive PoE to Gigabit 802.3af/at converter. Converts 22V-36V passive PoE to 802.3af/at 35W output
Specifications
Specifications TP-POE-2456GD
| Passive PoE Input Voltage | 22VDC to 36VDC |
| Output Overvoltage Protection | 58V |
| PoE Output | 56VDC 802.3af and 802.3at compatible |
| Output Current | 0.625A @ 56V |
| Output Power | 35W Max |
| Network Speed | 10/100/1000Mbps (Gigabit) |
| Load Regulation | 0.05 |
| Ripple / Noise | 0.02 |
| LED Function | RED = 24V Input power is ON |
| GREEN = Successful 802.3at handshake. Output power ON | |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity (RH) | 5% - 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (LxWxH) | 85 x 76 x 36mm (3.4 x 3 x 1.4”) |
| Weight | 150g (5.3oz) |
