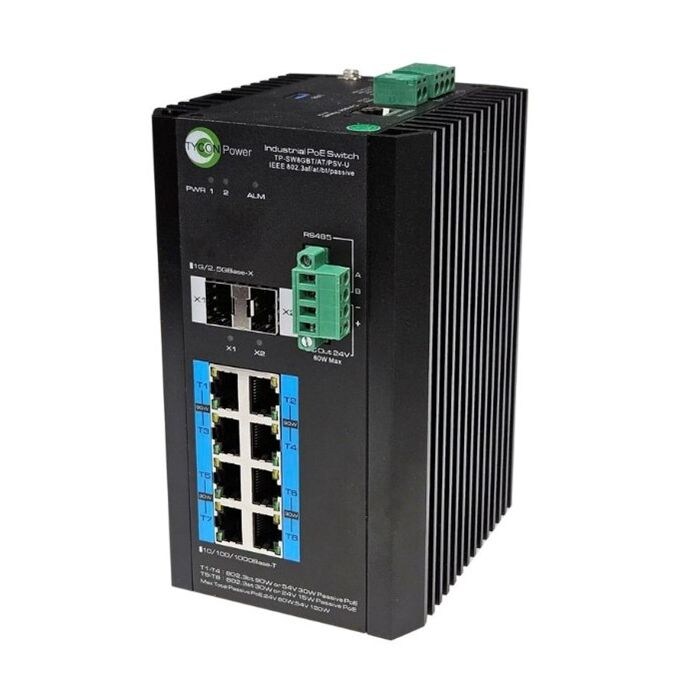

Managed Tycon Power L2 8 Port Gigabit PoE Switch, 12-57VDC Input, 2x SFP
- SKU: TP-SW8GBT/AT/PSV-U
Product Information
Managed L2 8 Port Gigabit PoE Switch, 12-57VDC Input, 2x SFP, 4x 802.3bt ports or 56V Passive PoE, 4x 802.3at or 24V Passive PoE Ports. DIN/Wall Mount
The TP-SW8GBT/AT/PSV-U Power over Ethernet (PoE) 10-Port Gigabit Switch from Tycon® delivers high-speed Layer 2 Ethernet performance and advanced manageability. This switch lets users configure PoE ports to meet diverse networking needs with the following options:
- 4 x 802.3BT 90W or 54V 30W Passive PoE Ports
- 4 x 802.3AT or 24V 15W Passive PoE Ports
- 2 x 1.0/2.5Gb SFP Fiber Ports
These configurations allow you to power multiple devices from a single switch. The two SFP ports accept standard single-mode or multimode fiber transceivers, as well as RJ45 transceivers, adding two more Ethernet ports for enhanced connectivity.
Efficient Power Delivery
The TP-SW8GBT/AT/PSV-U supports a wide DC input range (12VDC to 57VDC), enabling flexible power options. At 57V input, it delivers a total of 240W PoE output, with 120W available at 24V input and 60W at 12V input.
Intuitive Management and Security
Manage PoE ports effortlessly through the user interface or the console port. The switch provides secure access with SSH protocols, while users can control the command interface via web browsers, CLI, TELNET, SSH, or SNMP.
The PoE Watchdog feature detects and restarts unresponsive devices automatically, while Q-PoE (Quick PoE) powers devices immediately upon startup, bypassing delays caused by boot sequences.
Enhanced Layer 2 Functionality
Equipped with advanced Layer 2 features, this switch improves performance, security, and network manageability. Features include VLAN, Port Mirroring, Port Isolation, IGMP Snooping, LLDP, Storm Control, and PoE management. Additional support for Spanning Tree, Jumbo Frames, and Ring Topology enhances network flexibility and resilience.
Designed for industrial and outdoor use, the TP-SW8GBT/AT/PSV-U operates reliably across wide temperature ranges. It supports Category 5 or higher Ethernet cables with distances up to 100m and offers optical ranges up to 120km on fiber ports. Shielded and grounded RJ45 connectors and surge protection on all ports ensure durability in challenging conditions.
Dual Power Inputs for Uninterrupted Operation
This switch features two separate power inputs, supporting primary and backup power configurations. Its wire terminal connector accepts up to 12AWG wire for secure connections.
The TP-SW8GBT/AT/PSV-U combines power, reliability, and flexibility in one compact solution, making it an ideal choice for industrial and outdoor networking applications.
Features:
- Industrial Strength (-40C to +75C Operating Temperature)
- 10/100/1000 Gigabit Compatible Ethernet and 2.5G Fiber
- 12VDC to 57VDC Redundant Power Supply Input
- Ultimate Flexibility for Broadband and Security Integrators
- Port 1-4 802.3bt 90W or Passive 54V 30W PoE
- Port 5-8 802.3at 30W or Passive 24V 15W PoE
- Port 9-10 1.0/2.5Gb SFP Single/Multimode Fiber ports
- L2 Manageable via Console Port or IP
- Surge Protected Inputs, Fan-less Metal Shell
- DIN Rail Mount, Wall Mount or Desktop mode
- Configurable Alarms and RS485 Interface
- Simple TyconOS™ User Interface with Advanced Mode
Applications:
- Outdoor Network Installations
- PoE Lighting Applications
- Off-Grid Systems
- Factory Floor Networks
- Cameras and Wireless Radios
Specifications
Specifications TP-SW8GBT/AT/PSV-U
| Ports | Ports 1-4: Configurable as 802.3bt 90W or 54V 30W Passive PoE Ports 5-8: Configurable as 802.3af/at(30W) or 24V 15W Passive PoE Ports 9-10: SFP Transceivers Console Port (115200 Baud, 8 Bit, N parity, 1 stop bit, N flow control) Alarm Relay (12V 0.6A Switching) RS485 Serial Port USB 3.0 Port – For charging/Powering USB devices DC Power Out (24VDC 0.25A) |
| Ethernet Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation |
| Transceiver Compatibility | 1G/2.5G Multi Mode or Single Mode Fiber or RJ45 |
| Connections | Shielded RJ45, Shielded SFP/LC, Grounded to Case |
| Power Input | Vin 12VDC to 57VDC on Dual Input Wire Terminal (Max wire size 12AWG) |
| Switch Total Power Output | 57VDC Input: 240W, 24VDC Input:120W, 12VDC Input: 60W |
| Self Consumption | < 11 watts typical |
| LED Indicators | Port 1-8:(Green=Link LED; Orange=PoE LED） PWR1: (Red LED = Master power is ON, OFF = No Power) PWR2: (Red LED = Slave power ON, OFF = No Power) ALM:(Red LED; ON= Alarm Condition, OFF = Normal Operation) X1,2: (SFP Port Status, Green LED Link Light, OFF = No Connection) |
| PoE Standards | 802.3af/at/bt and Passive PoE (PSE Endspan) |
| PoE Protections | Over Voltage, Over Current, Short Circuit |
| PoE Pinout | Ports 1-4: 802.3bt 3/6,4/5 (V+) ; 1/2,7/8(V-) Ports 5-8: 802.3at 1/2 (V+) ; 3/6(V-) All Ports Passive PoE: 4/5 (V+) ; 7/8 (V-) |
| Reset/Init Button | Momentary Press = reset; Long Press >5s = Initialize to factory defaults |
| Surge Protection | IEC61000-4-5, Data Port: +/- 6KV |
| ESD Protection | IEC61000-4-2, Level 3: 15KV Air, 8KV Touch |
| Management Methods | WEB, CLI, TELNET, SSH, SNMP |
| VLANS | Supports up to 4094 active VLANs simultaneously (out of 4096 VLAN IDs); 802.1Q tag-based VLAN; |
| Port Management | PoE enable/disable, PoE Mode control, Total PoE Power budget control, PoE Port priority, PoE port power limitation, PD alive check, PoE scheduling |
| STP | Standard Spanning Tree (STP) 802.1d, Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s TC-BPDU Guard, BPDU Guard, BPDU Filter |
| Ring Network Protocol | ERPS (Ethernet Ring Protection Switching), <20ms G.8032 ERPS Ring |
| Link Aggregation | Manual Aggregation, LACP Dynamic Convergence |
| IGMP v1/v2 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requestors, Supports 256 multicast groups |
| MAC Management | Add/Delete, MAC Address learning limit, Dynamic Aging Time Setting |
| QOS (Quality of Service) | 802.1p(COS), DSCP Classification, Supports SP/WRR Scheduling Strategy |
| Other Functions | LLDP, Basic Logging, SNMP Trap, Device Reset, Configuration save/restore, NTP time setting, Upgrade Management. |
| Jumbo Frame Support | 9kB |
| Switching Capacity | 28 Gbps / non-blocking |
| Packet Forwarding Rate | 19.344 Mpps |
| Forwarding Mode | Store and Forward |
| Memory | 165MB |
| MAC Table | 16K MAC, self-learning |
| Port Buffer | 2MB |
| Network Protocols and Standards Summary | IEEE 802.3i 10BASET, 802.3u 100BASET, 802.3z 1000BASET 802.3x Flow Control 802.3ab Gigabit Media Independent Interface (GMII) 802.1q VLANs, 802.1p (QOS) 802.3ad Link Aggregation Control Protocol (LACP) 802.3af /at /bt (PoE) IEEE G.8032 Ethernet ring protection (<20ms) (STP) 802.1d, (RSTP) 802.1w, (MSTP) 802.1s |
| Other Industry Standards | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN-61000-4-5 (Surge) Shock: IEC 60068-2-27, Free Fall: IEC 60068-2-32, Vibration: IEC 60068-2-6 |
| Environmental Protection | IP40 |
| Operating Temp | -40 to +75°C (-40 to 167°F) |
| Operating Humidity (RH) | 5% - 95% (non-condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| MTBF | 50,000 hours |
| Certifications | CE, FCC, RoHS |
| Dimensions (LxWxH) | 163*110*95mm (6.4 x 4.3 x 3.7”) |
| Weight | 1.724kg (3.8 lbs.) |
| Warranty | 3 Years |
