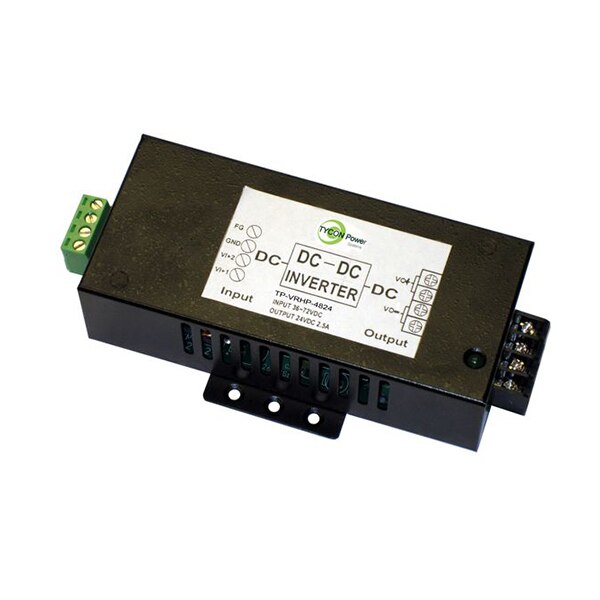

Voltage Converter 36-72VDC Input, 24VDC @ 2.9A 70W Regulated output, isolated
- SKU: TP-VRHP-4824
$137.70 $144.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Voltage Converter 36-72VDC Input, 24VDC @ 2.9A 70W Regulated output, isolated
Specifications
Specifications TP-VRHP-4824
| DC Input Voltage Range | 36V to 72VDC |
| DC Voltage Output | 24VDC @ 3A |
| Maximum Power | 70W |
| Efficiency | >85% |
| Load / Line Regulation | 5% / 1% |
| Ripple / Noise | 2% / 5% |
| Isolation Voltage / Ohms | 1500VDC Min. / 100M Ohms Min |
| Wire Gauge | 12AWG Max |
| Protections | Short Circuit, Overvoltage, Overload |
| Operating Temperature | -22°F to 149°F (-30°C to +65°C) |
| Operating Humidity | 0 to 90% RH |
| Size | 5.24 x 3 x 1.5” (133x75x38mm) |
| Weight | 10.5oz (298g) |
