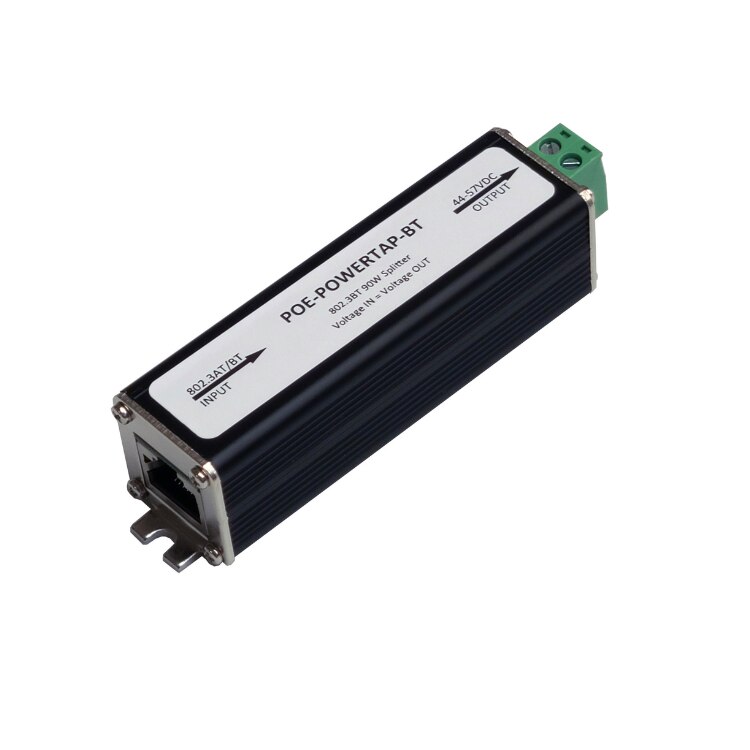

802.3af/at/bt PoE input, up to 105W output on 2 position wire terminal. LED Power Indicator.
- SKU: POE-POWERTAP-BT
$48.40 $50.95
- Manufacturer: Tycon Power
- Spec Sheet: Download
Product Information
802.3af/at/bt PoE input, up to 105W output on 2 position wire terminal. LED Power Indicator.
Specifications
Specifications POE-POWERTAP-BT
| Input PoE Voltage | 44VDC to 57VDC (802.3af/at/bt) or 2 pair or 4 pair 48V Passive PoE |
| Output Voltage | 44 to 57VDC, Voltage Output = Voltage Input, Efficiency 98.4% |
| Maximum Load | 90W Max, 100uF Max |
| Surge Protection | IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact) |
| MTBF (MIL-HDBK-217F 70C) | 961,723 Hrs |
| Operating Temperature | -40 to +70°C |
| Storage Temperature | -40 to +85°C |
| Operating Humidity | 0% to 95% non-condensing |
| Size (L x W x H) | 3.65 x 1 x 1” (93 x 25.4 x 25.4mm) |
| Weight | 2.25oz (64g) |
| Input Connector | RJ45 Shielded Jack |
| Output Connector | Wire Terminal, Max wire size 12AWG |
| Warranty | 3 Years |
