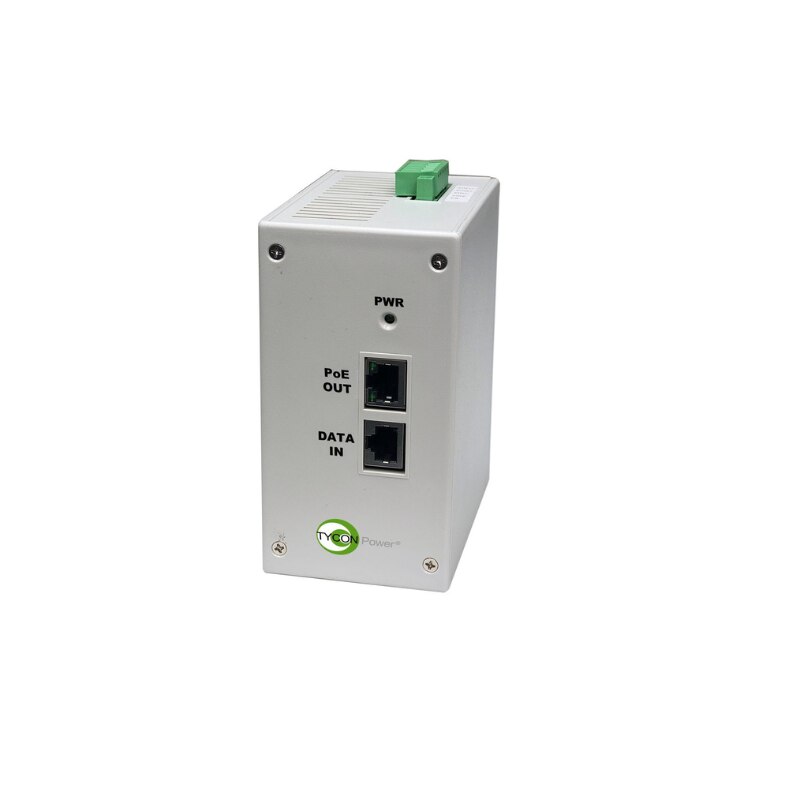

5Gigabit,11-60VDC IN, 802.3bt 56VDC 90W OUT DC to DC Conv and 802.3bt PoE inserter. DIN rail mount. -40 to +70C
- SKU: TPDIN-1256GD-BT
$300.15 $315.95
Product Information
5Gigabit,11-60VDC IN, 802.3bt 56VDC 90W OUT DC to DC Conv and 802.3bt PoE inserter. DIN rail mount. -40 to +70C
Specifications
Specifications TPDIN-1256GD-BT
| Input Voltage | 11V to 60VDC, Dual Inputs |
| Input Current | 9.86A @11VDC IN (Full Load) 4.446 @ 24VDC IN (Full Load) 2.26A @ 48VDC IN (Full Load) |
| Output Voltage | IEEE802.3bt 56VDC ; Load Reg = 5%, Line Reg = 1% |
| Output Current / Max Watts | 1.67A / 95W with 34VDC to 60VDC Input 1.43A / 80W with 11VDC to 33VDC Input |
| Ripple & Noise | 1% |
| Efficiency | >90% at 34-60VDC Input ; >86% at 11-33VDC Input |
| Protections | Short Circuit, Reverse Voltage |
| Over Current Protection | 802.3bt Class 8 (96.6W) |
| Low Voltage Detect (LVD) | Device with stop drawing all current when input voltage drops below 8~9VDC |
| Misc Protections | Short Circuit, Reverse Voltage |
| Data PassThrough | 10/100/1000/5000Mbps ; Gigabit |
| Data Protection | Pin to Pin (1-2, 3-6, 4-5, 7-8) |
| Clamp Voltage | 3.3V |
| ESD, IEC61000-4-2 | +/- 30KV contact and air |
| EFT, IEC61000-4-4 | 40A (5/50us) |
| Lightning, IEC61000-4-5 | 15A (8/20us) |
| Connections | Removable Wire Terminal |
| Wire Size | 12AWG Max |
| LED Function | Green Power LED = Input Power is OK RJ45 Green LED = 802.3bt negotiation and output is OK |
| Mounting | DIN Rail |
| Operating Temperature | -40C to +70C (-40F to 158F) |
| Humidity (RH) | 5% - 90% Non-Condensing |
| Dimensions (LxWxD) | 125 x 66 x 102 mm (4.9” x 2.6” x 4”) |
| Weight | 0.6kg (1.30lb) |
| Warranty | 3 Years |
