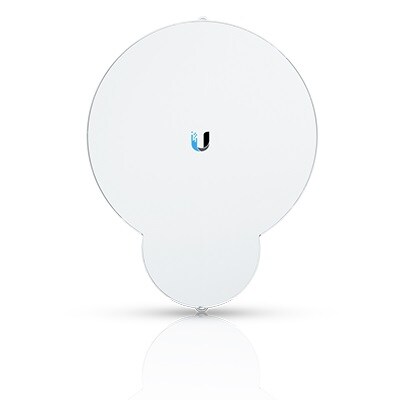

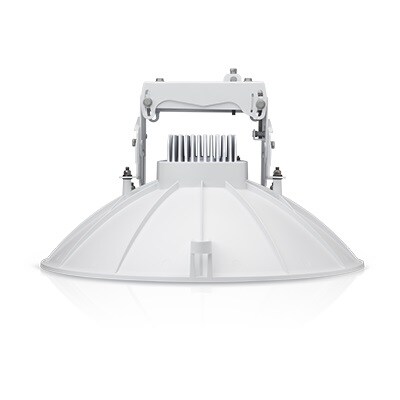

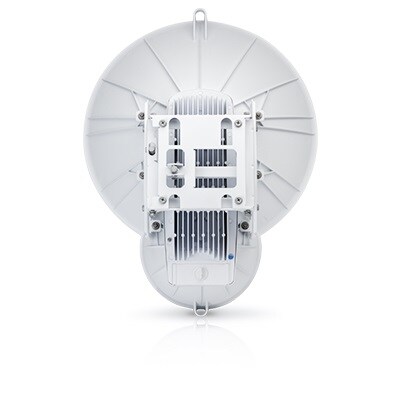

Ubiquiti UISP airFiber 24 Hi-Density Radio (US)
- SKU: AF-24HD-US
$3,000.00
Product Information
UISP airFiber 24 Hi-Density Radio (US)
Features:
- 24 GHz, 20+ km link range
- 2+ Gbps throughput
- Separate integrated TX and RX antennas
- Integrated GPS sync
- 1+ Mpps processing
Specifications
Specifications AF-24HD-US
| Dimensions | 593 x 768 x 370 mm (23.4 x 30.2 x 14.6") |
| Weight | 17.3 kg (38.1 lb) |
| Mounting | Pole mount kit (Included) |
| Wind loading | 770 N @ 200 km/h (170 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Auxiliary port | (1) RJ-12, alignment tone port |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 50V, 1.2A gigabit PoE adapter (Included) |
| Supported voltage range | 42–58V DC |
| Max. power consumption | 50W |
| Operating frequency | 24.05 – 24.25 GHz |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| System | |
| Max. throughput | 2 Gbps |
| Ma. range | 20+ km |
| Packets per second | 1+ million |
| Encryption | 128-bit AES |
| Uplink/Downlink ratio | Programmable in Half Duplex mode |
| RF | |
| GPS | GPS clock synchronization |
| EIRP | ~33 dBm (FCC/IC) ~20 dBm (CE) ~40 dBm (Other Regions) |
| Frequency accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel bandwidth | 100 MHz |
| Operating frequency | 24.05 – 24.25 GHz |
| Operating channels | 24.1 GHz, 24.2 GHz |
| Modulation | 256QAM 64QAM 16QAM QPSK MIMO QPSK SISO ¼x QPSK SISO |
| Gain TX RX | 33 dBi 40 dBi |
| Beamwidth | < 3.5° |
| Front-to-back ratio | 70 dB |
| Polarization | Dual-slant |
| Cross-polarity Iiolation | > 28 dB |
| LEDs | |
| System | (8) Status LEDs: (1) Two-digit LED display calibrated in dBm |
