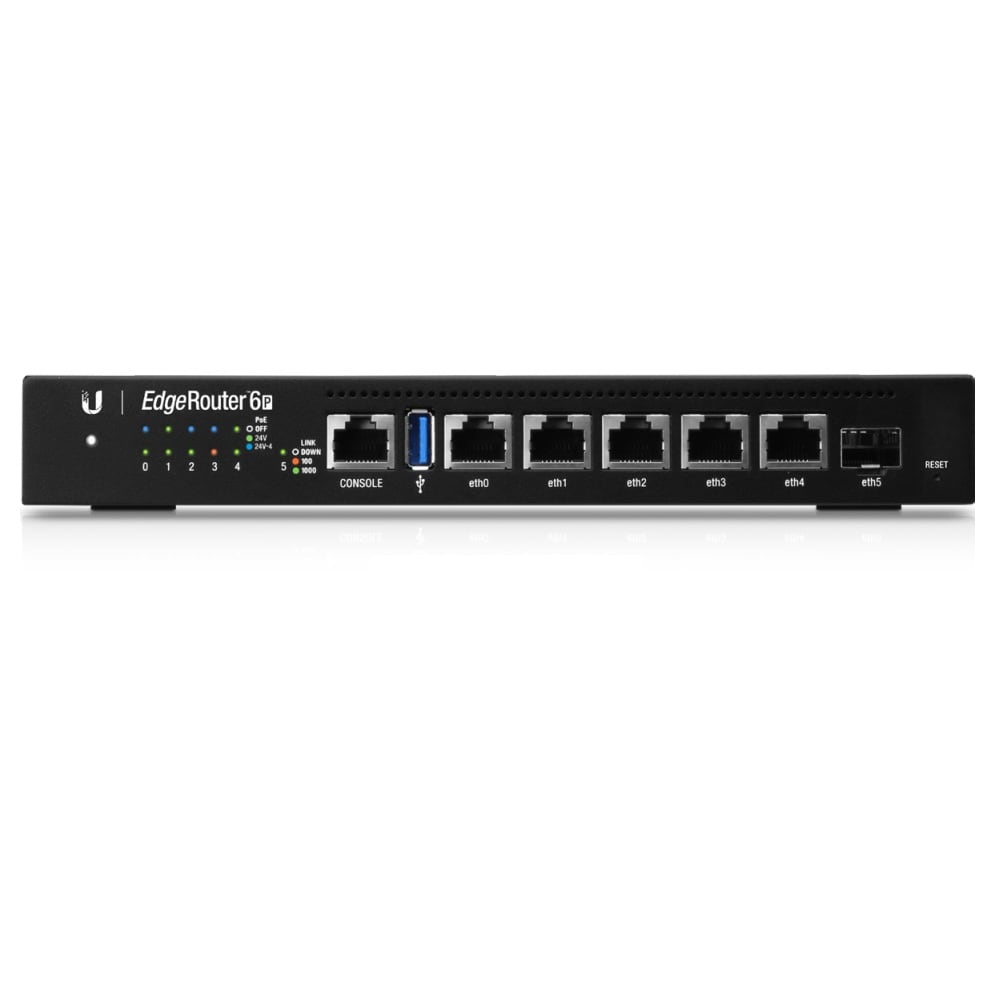

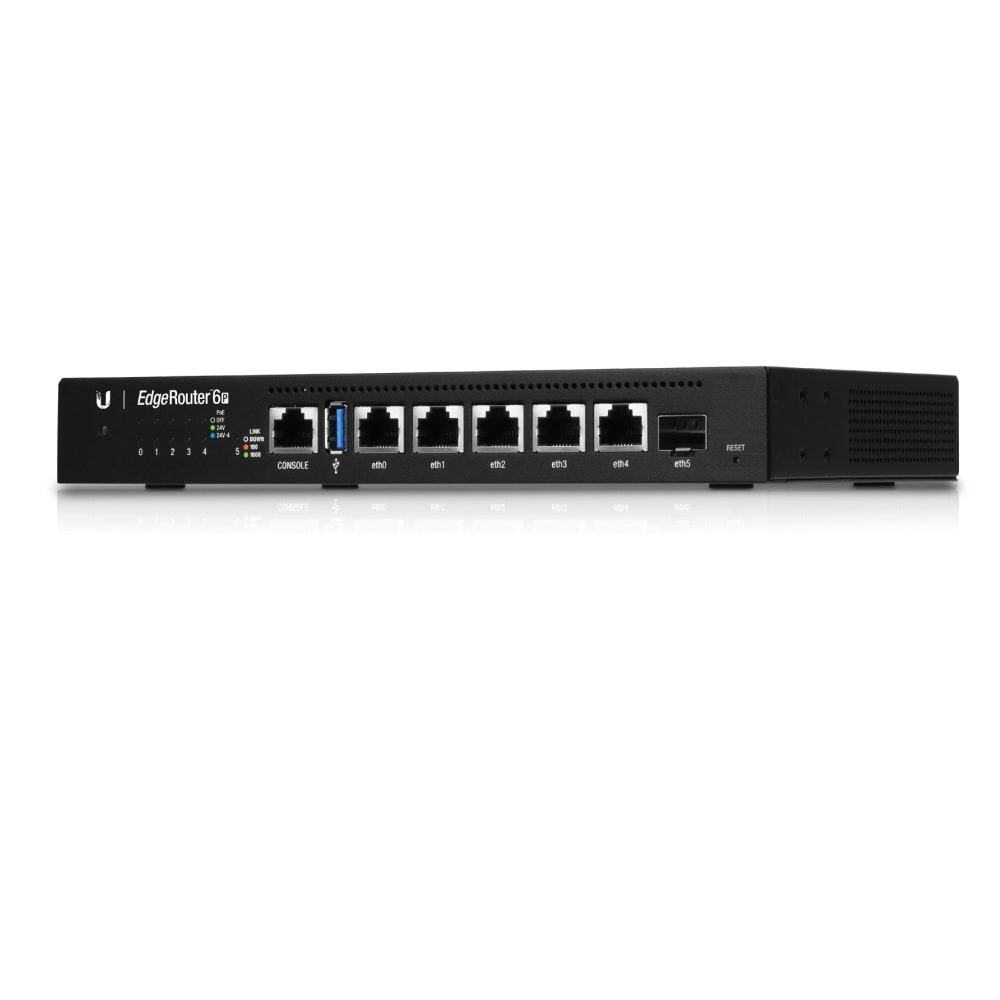

Ubiquiti UISP EdgeRouter 6 PoE Router
- SKU: ER-6P
$259.00
- Manufacturer: Ubiquiti Networks
- Quick Start Guide: Download
Product Information
Fanless router with a four-core, 1 GHz MIPS64 processor, (5) Gigabit RJ45 ports, and an SFP port.
Specifications
Specifications ER-6P
| Dimensions | 9.02 x 5.37 x 1.22 in |
| Weight | 1.61lb |
| Max. Power Consumption | 16 W (Excludes PoE Output) |
| Power | External AC Power Adapter, 60W (24V,2.5A) |
| Power Input | 110 -240VAC |
| Button | Reset |
| LEDs | Data Ports - Speed/Link/Activity, PoE : SFP Data Port - Link/Activity |
| Networking Interfaces Manangement | (1) RJ45 Serial Port (6) Ethernet Ports (Defaults eth0) |
| Networking | (5) 10/100/1000 RJ45 Ports with PoE (1) 1 Gbps SFP Port |
| Processor | 4-Core 1 GHz, MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| Rack-Mountable | Yes |
| Operating Temerpature | -10 to 50degC (14 to 122degF) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE with 24VDC Power Adapter | |
| PoE Interfaces | (5) 24V Passive PoE Ports, 2-pair (4, 5+; 7, 8-) and 4-pair |
| Passive PoE Max. Wattage Per Port | 24W (24V/1A, 4-pair) |
| Voltage Range Passive PoE | 24V |
