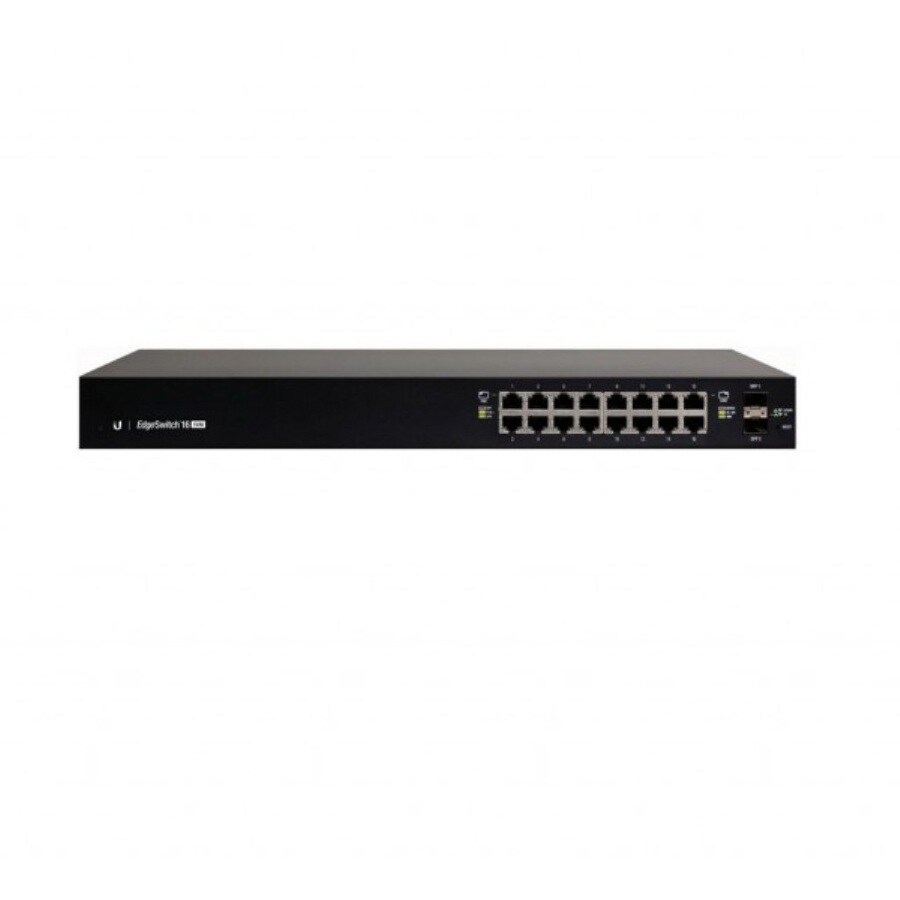

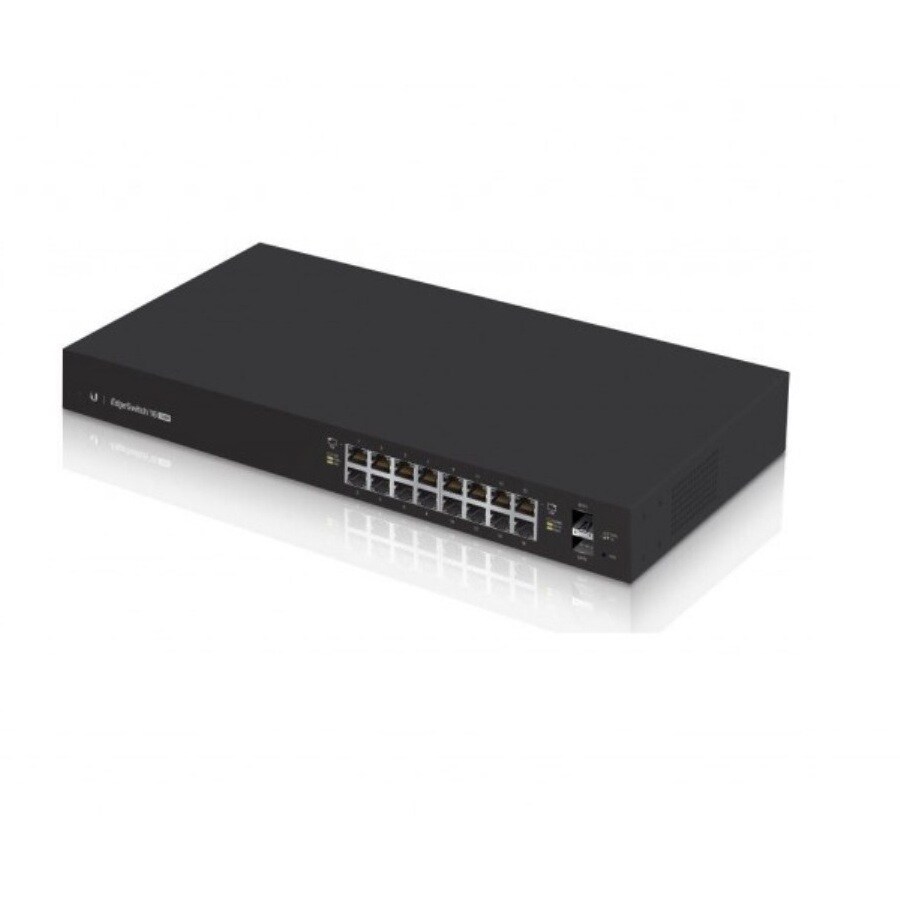

EdgeSwitch Managed Power Over Ethernet Plus Gigabit Switch with SFP. 18 Gbps Total Non-Blocking Throughput, 16 Gigabit RJ45 Ports, 2 SFP Ports, 150W Maximum Power Consumption
- SKU: ES-16-150W
$329.00
Product Information
Ubiquiti Networks EdgeSwitch Managed Power Over Ethernet Plus Gigabit Switch with SFP. 18 Gbps Total Non-Blocking Throughput, 16 Gigabit RJ45 Ports, 2 SFP Ports, 150W Maximum Power Consumption
Specifications
Specifications ES-16-150W
| Dimensions | 443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
| Weight | Without Mount Bracket : 2.80 kg (6.17 lb), With Mount Bracket : 2.89 kg (6.37 lb) |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Max. Power Consumption | Includes PoE Output: 150W, Excludes PoE Output: 28W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W DC |
| LEDs Per Port | RJ45 Data Ports: PoE, Speed/Link/Activity, SFP Data Ports: Speed/Link/Activity |
| Networking Interfaces | (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE Per Port | |
| PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
