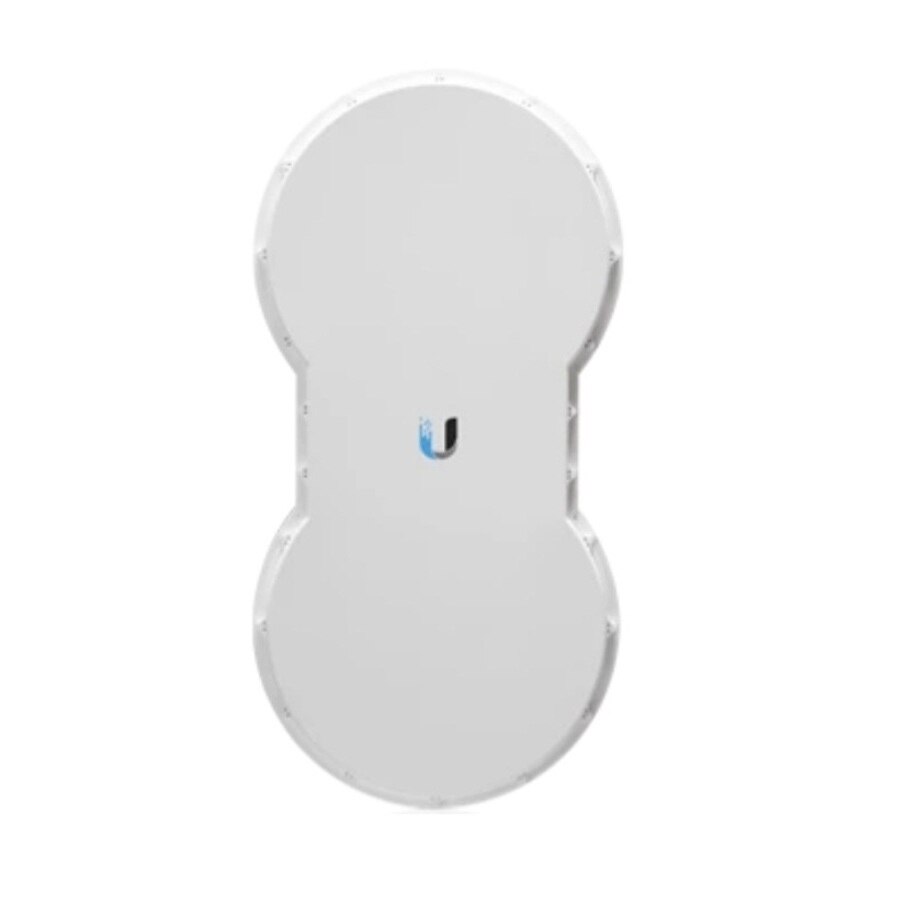

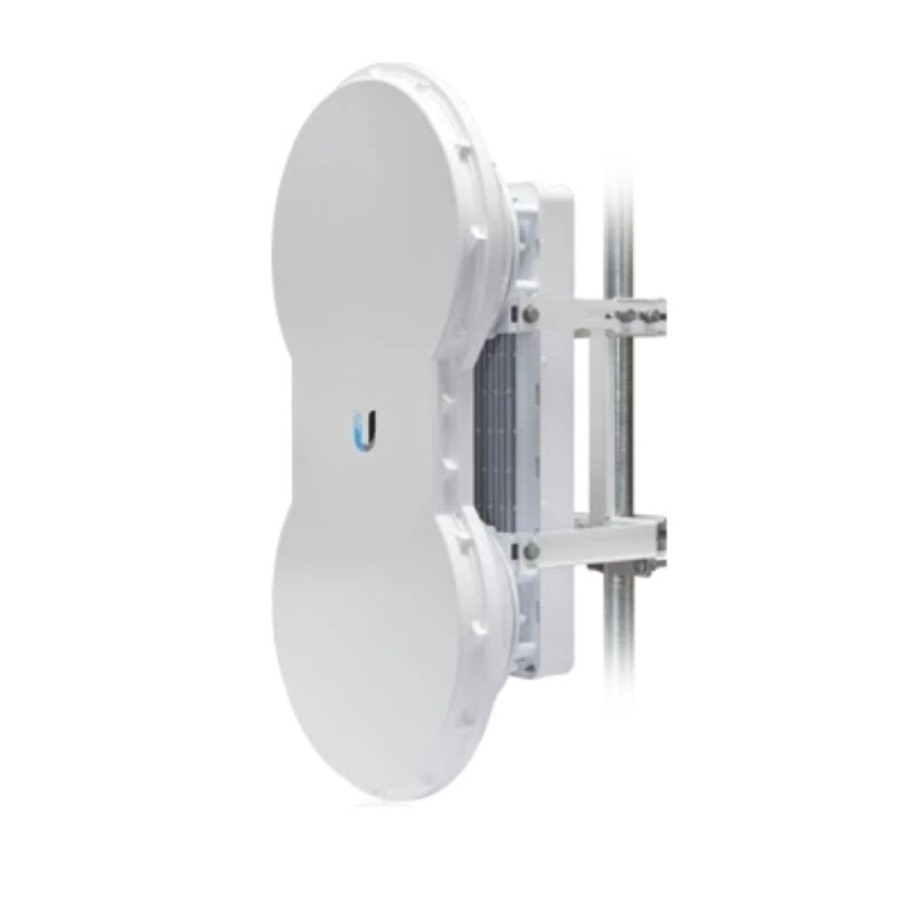

Ubiquiti UISP airFiber 5 High-Band Radio (US)
- SKU: AF-5U-US
$999.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.
Specifications
Specifications AF-5U-US
| Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08") |
| Weight | 16 kg (35.27 lb) Mount Included |
| Max. Power Consumption | 40 W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet |
| Supported Voltage Range | 42-58VDC |
| Certifications | CE, FCC, IC |

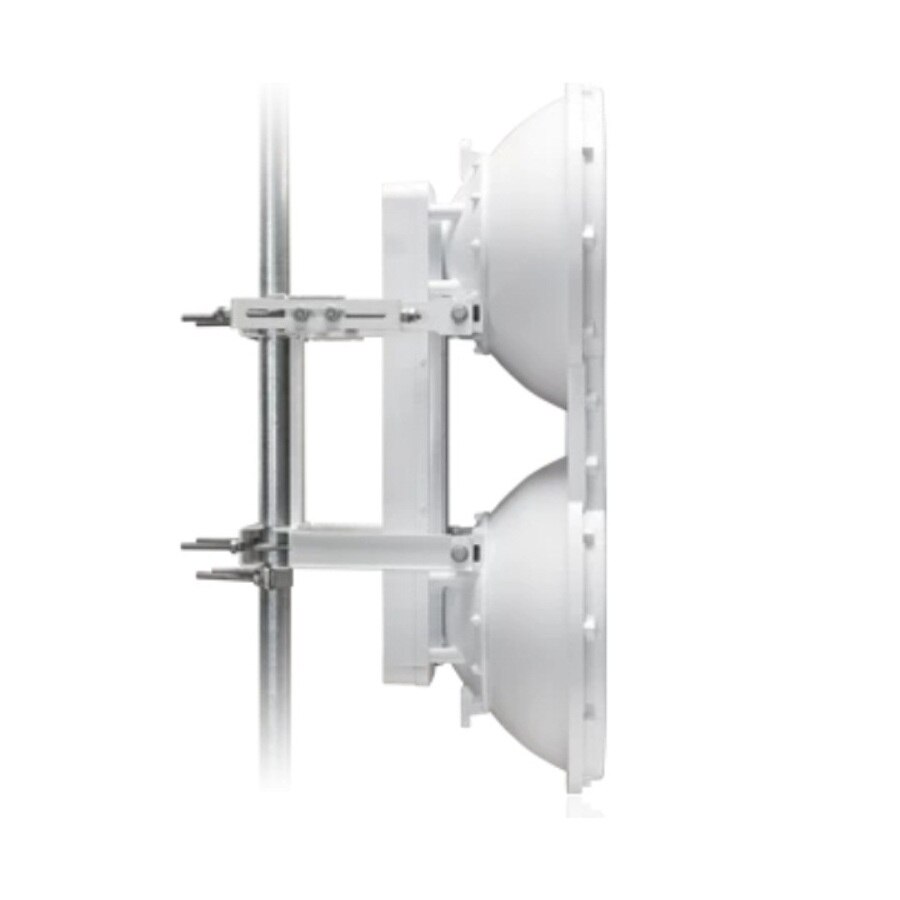

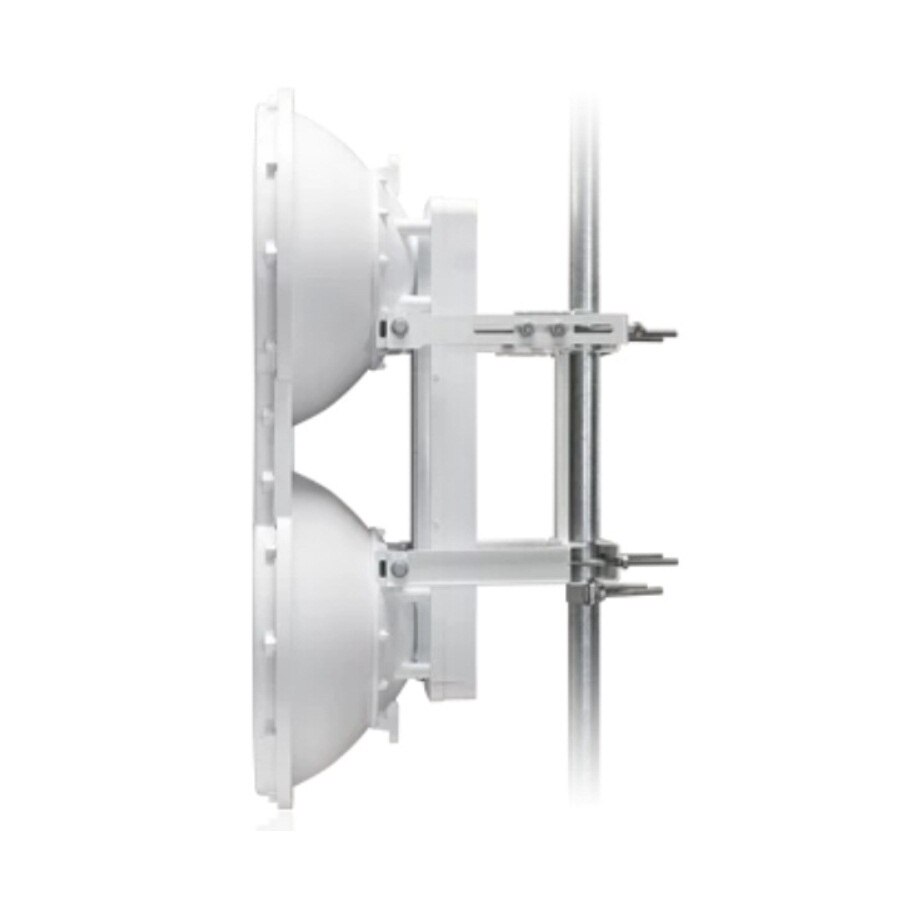

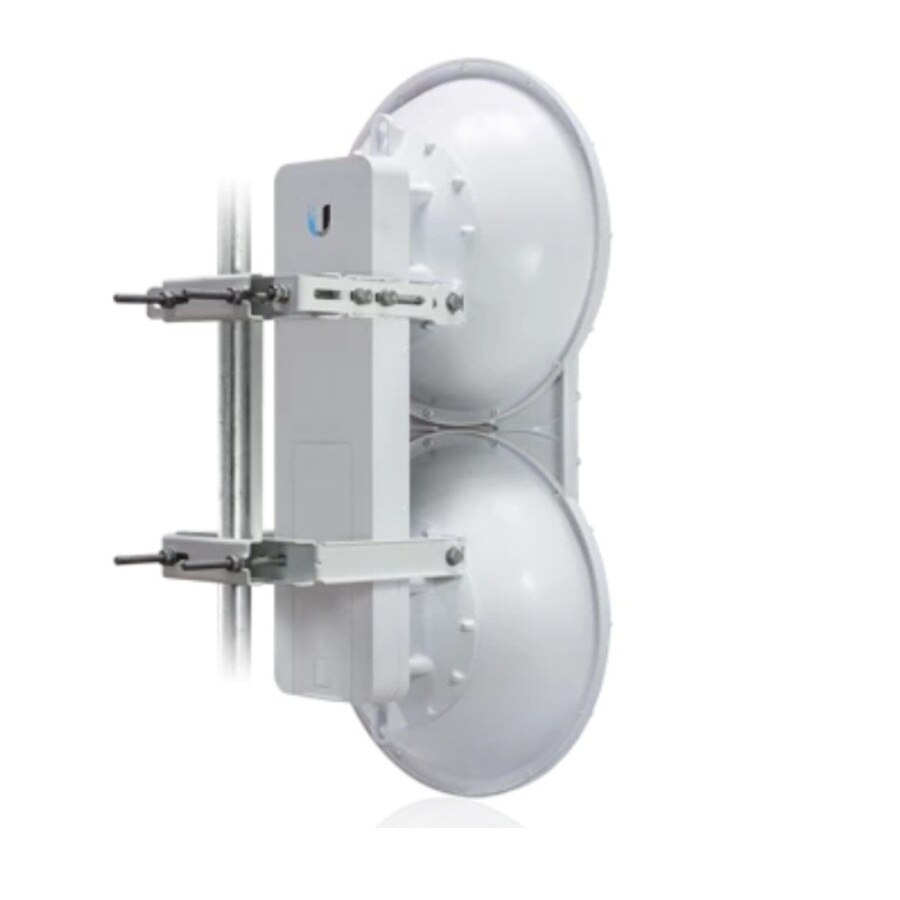

| Mounting | Pole Mount Kit (Included) |
| Wind Loading | 863 N @ 200 km/hr (194 lbf @ 125 mph) |
| Wind Survivability | 200 km/hr (125 mph) |
| Operating Temperature | -40 to 55° C (-40 to 131°F) |
| LEDs | (12) Status LEDs: Data Port Link/Activity Data Port Speed Management Port Link/Activity Management Port Speed GPS Synchronization Master/Slave Link Status Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload Remote and Local Displays (Calibrated Signal Strength) |
| Operating Frequency | |
| AF-5 FCC 15.247, 15.407, IC RSS-210 ETSI EN 301 893, EN 302 502 Other Regions | 5470 - 5600 MHz, 5650 - 5850 MHz 5470 - 5875 MHz 5470 - 5950 MHz |
| AF-5U FCC 15.247, IC RSS-210 ETSI EN 302 502 Other Regions | 5725 - 5850 MHz 5725 - 5875 MHz 5725 - 6200 MHz |
| Interface | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Management Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) RJ-12, Alignment Tone Port |
| System | |
| Maximum Throughput | 1.2+ Gbps |
| Maximum Range | 100+ km (Dependent on Regulatory Region) |
| Packets per Second | 1+ Million |
| Encryption | 128-Bit AES |
| Uplink/Downlink Ratio | 50% Fixed |
| Radio Frame Synchronization | GPS |
| Dynamic Frequency Selection AF-5 AF-5U | CE, FCC/IC CE, (FCC/IC Not Applicable) |
