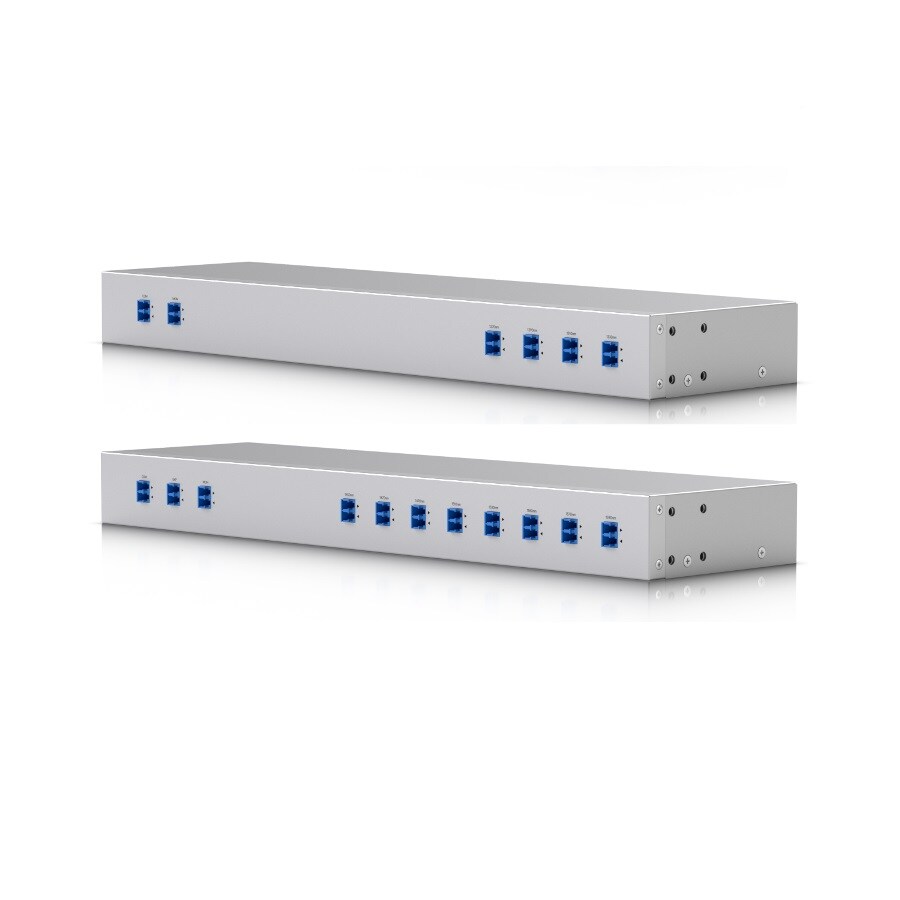

Ubiquiti Networks CWDM Mux Demux
- SKU: CWDM Mux Demux
$199.00 to $349.00Select options
- Manufacturer: Ubiquiti Networks
- Installation Guide - 4 Channels: Download
- Installation Guide - 8 Channels: Download
Product Information

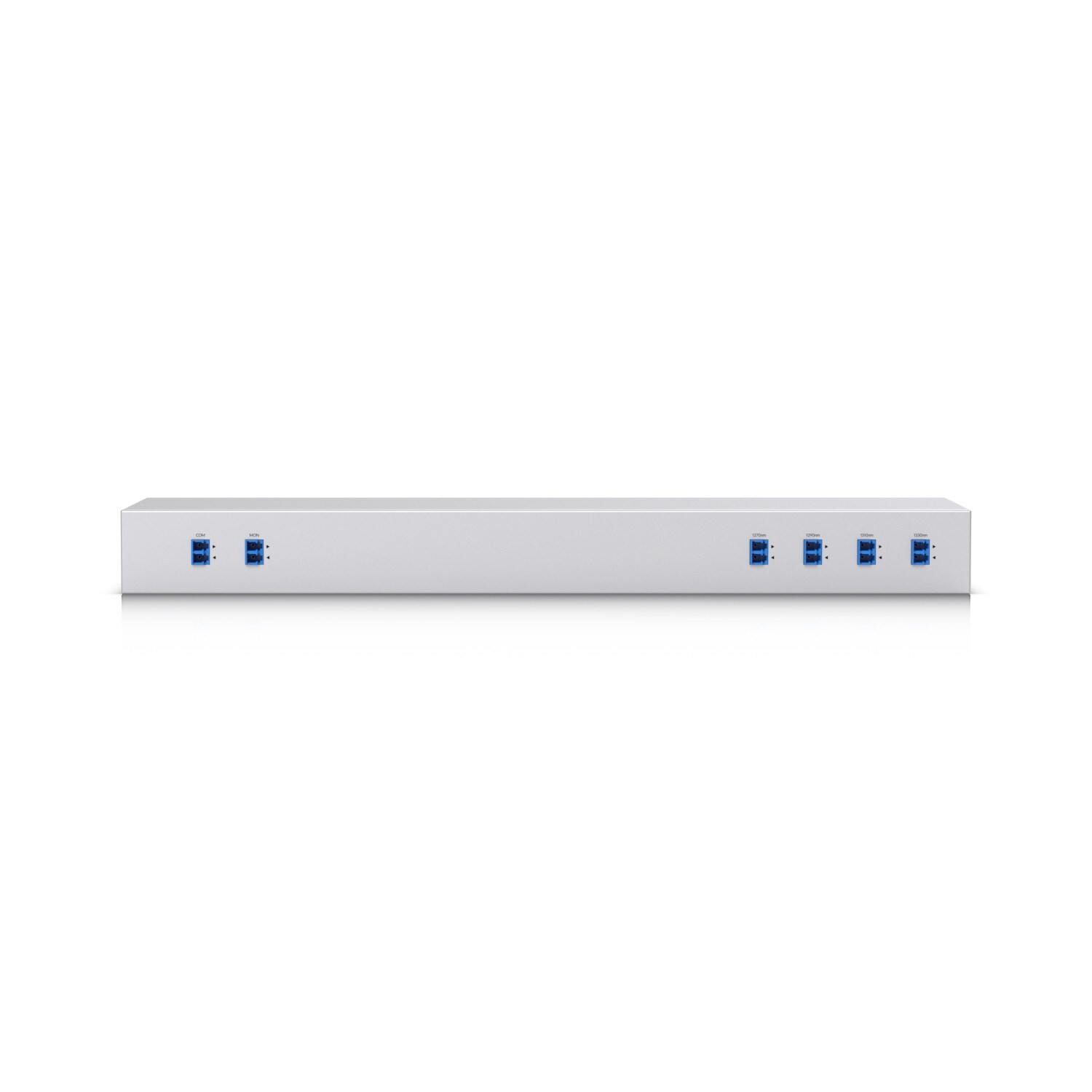

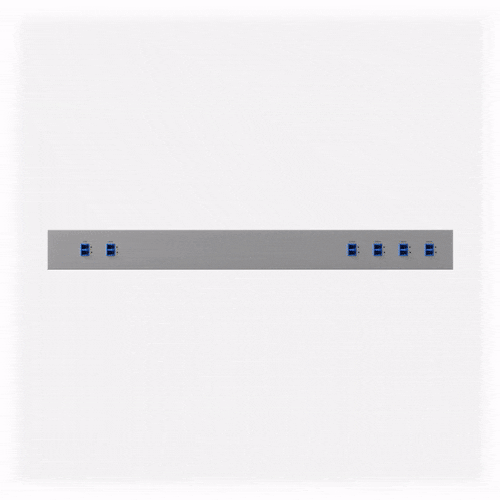

Ubiquiti Networks UACC-CWDM-4
CWDM Mux Demux 4
Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
Features:
- (4) 1270 to 1330 nm channel ports
- (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
- (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
- Compatibility: USW-Aggregation, USW-Pro-Aggregation

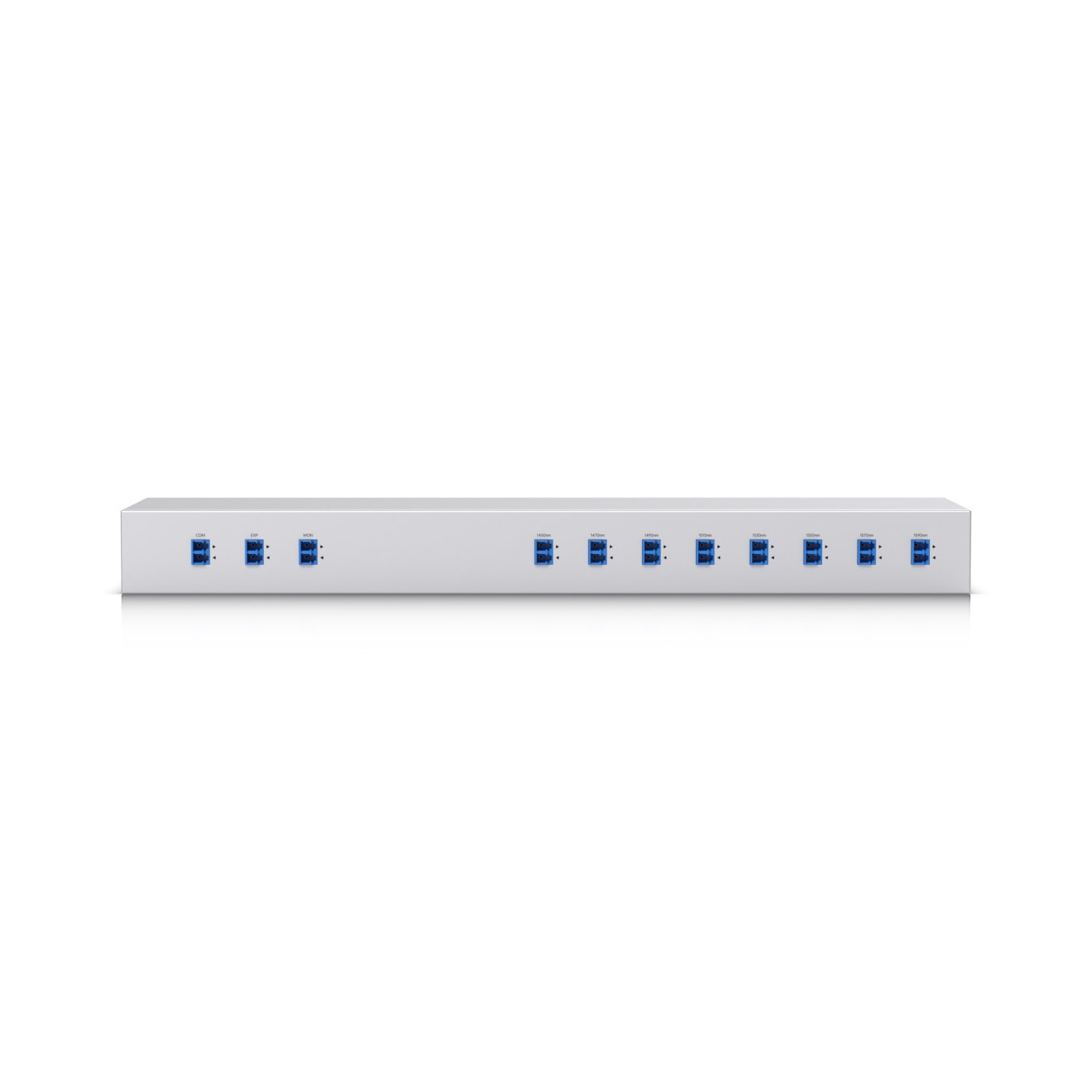

Ubiquiti Networks UACC-CWDM-8
CWDM Mux Demux 8
Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
Features:
- (8) 1450 to1590 nm channel ports
- (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
- (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
- (1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
- Compatibility: USW-Aggregation, USW-Pro-Aggregation
Specifications
Specifications UACC-CWDM-4
| Dimensions | 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7") |
| Weight | 1.4 kg (3.2 lb) |
| Enclosure material | Metal |
| Hardware | |
| Connector type | (1) COM (LC/UPC) (1) MON (LC/UPC) (1) 1270 to 1330 nm (LC/UPC) |
| Pigtail and connector type | 0.9 mm white LC/UPC |
| Fiber type | SMF-28e |
| Fiber length | ≥0.5 to 1 m |
| Channel count | 4 CH Mux/Demux |
| Channel center wavelength | 1270/1290/1310/1330 nm |
| Min. channel passband | ±6.5 nm |
| Max. insertion loss | <1.5 dB |
| Isolation | Adjacent channel: Max. 30 dB |
| Non-Adjacent channel | Min. 40 dB |
| Max. passband ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Min. directivity | 55 dB |
| Min. return loss | 50 dB |
| Max. polarization mode dispersion | 0.1 ps |
| Max. power handling | 500 mW |
| Storage temperature | -40 to 90° C (-40 to 194° F) |
| Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
Specifications UACC-CWDM-8
| Dimensions | 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7") |
| Weight | 1.4 kg (3.2 lb) |
| Enclosure material | Metal |
| Hardware | |
| Connector type | (1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450 to 1590 nm (LC/UPC) |
| Pigtail and connector type | COM: 0.9 mm black LC/UPC |
| Other ports | 0.9 mm white LC/UPC |
| Fiber type | SMF-28e |
| Fiber length | ≥0.5 to 1 m |
| Channel count | 8 CH Mux/Demux |
| Channel center wavelength | 1450/1470/1490/1510/1530/1550/1570/1590 nm |
| Min. channel passband | ±6.5 nm |
| Max. insertion loss | <2.5 dB |
| Isolation | Adjacent channel: Max. 30 dB |
| Non-Adjacent channel: Min. 40 dB | |
| Max. passband ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Min. directivity | 55 dB |
| Min. return loss | 50 dB |
| Max. polarization mode dispersion | 0.1 ps |
| Max. power handling | 500 mW |
| Storage temperature | -40 to 90° C (-40 to 194° F) |
| Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
