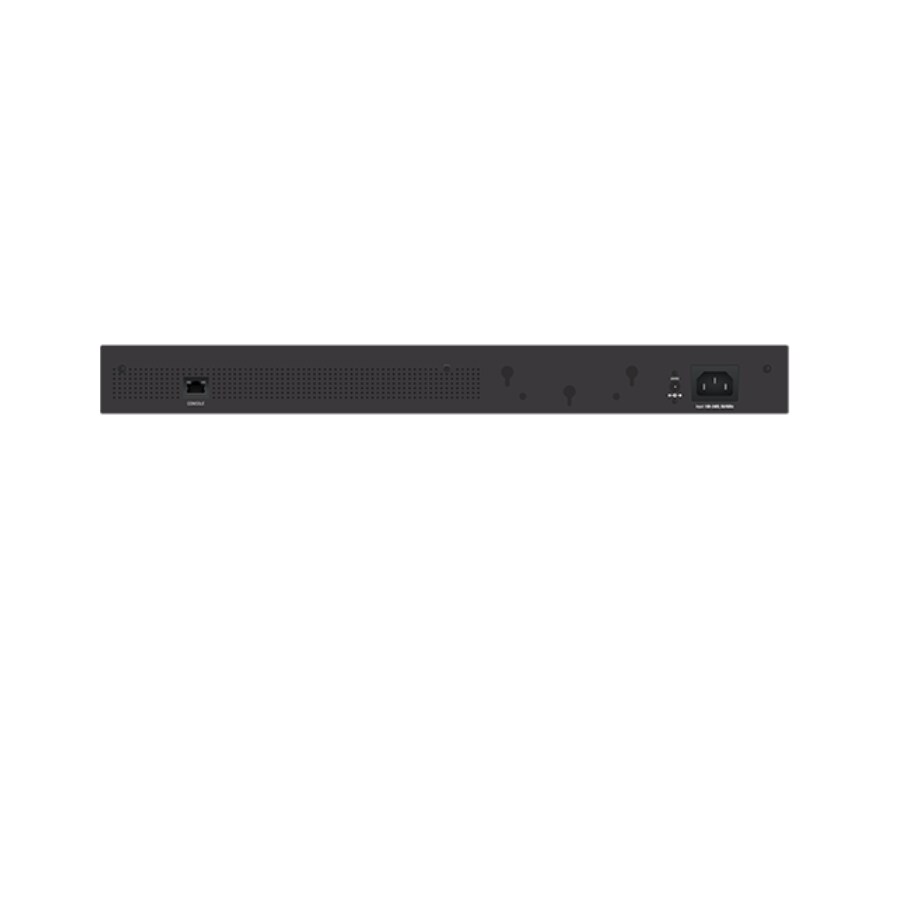

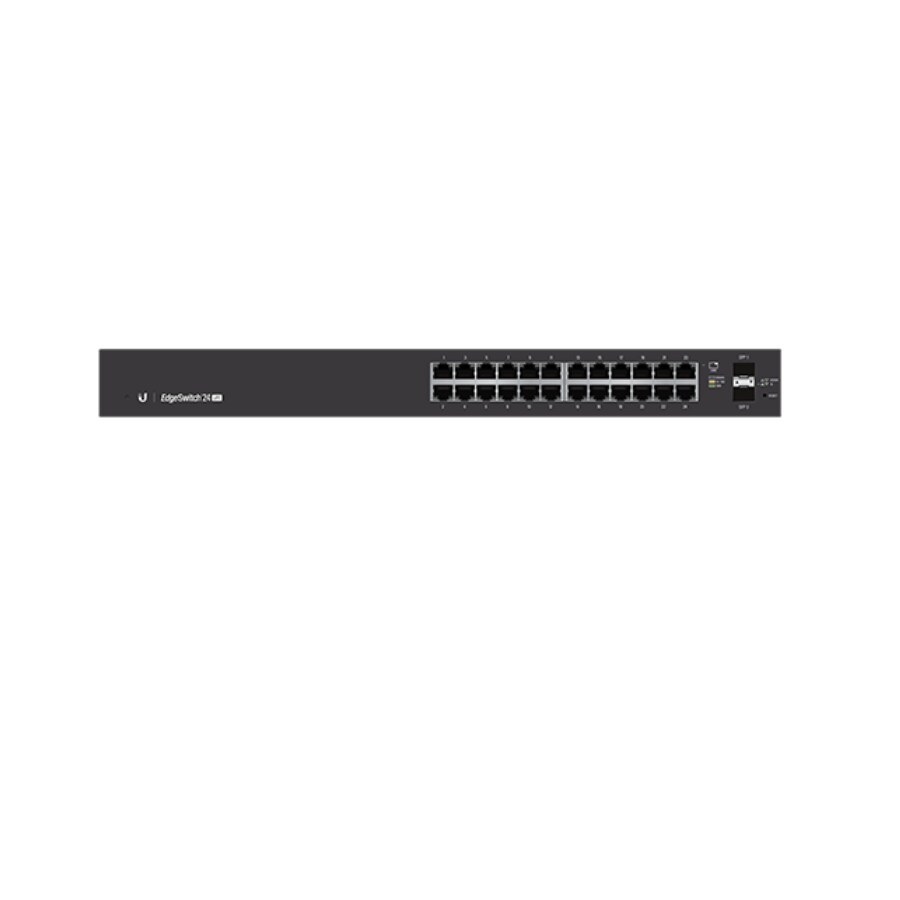

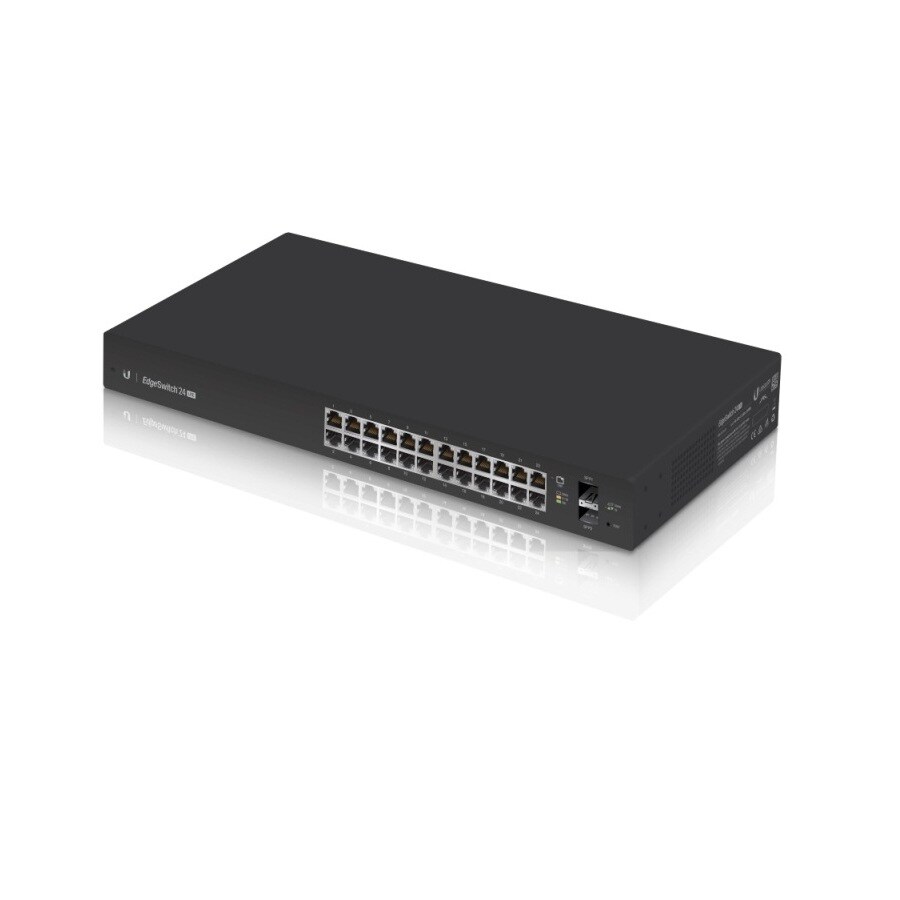

EdgeSwitch, 24-port, Lite, Non-POE
- SKU: ES-24-LITE
$240.00
Product Information
Ubiquiti Networks Edgeswitch Managed Power Over Ethernet Plus Gigabit Switch with SFP. 26 Gbps Total Non-Blocking Throughput, 24 Gigabit RJ45 Ports, 2 SFP Ports, 250 W Maximum Power Consumption, Rack-mountable
Specifications
Specifications ES-24-LITE
| Dimensions | 443 x 43 x 221 mm (17.4 x 1.7 x 8.7") |
| Weight | Without rack-mount brackets: 2.5 kg (5.5 lb) With rack-mount brackets: 2.6 kg (5.7 lb) |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity 140 Gbps | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Max. AC Power Consumption | 25W |
| Power Method | AC: 100-240VAC/50-60 Hz, Universal Input DC: DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector |
| Power Supply | AC/DC, Internal, 25W DC |
| LEDs | RJ45 ports: speed/link/activity SFP ports: speed/link/activity |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
