Ubiquiti Networks LBE-5AC-XR-US
- SKU: LBE-5AC-XR-US
$129.00
Product Information

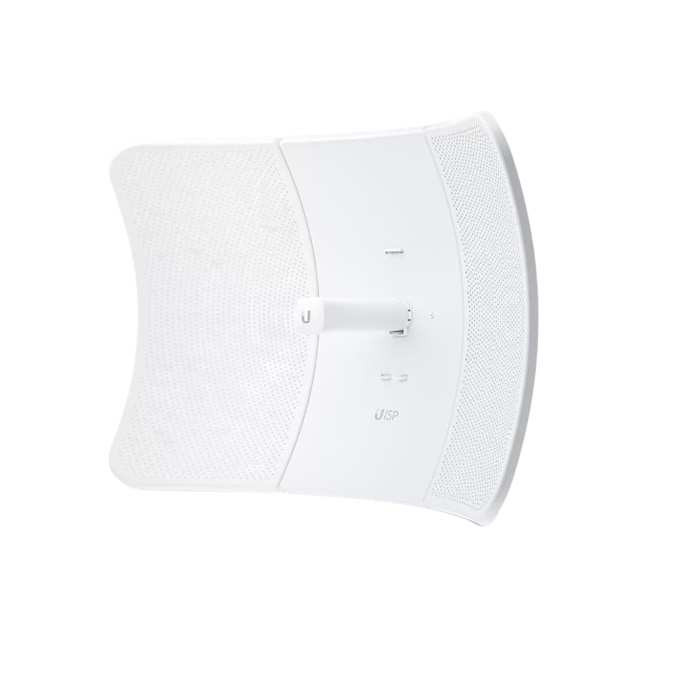

airMAX LiteBeam 5AC Extreme-Range
Specifications
Specifications LBE-5AC-XR-US
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66") |
| Weight | 3.2 kg (7.06 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | UV stabilized polycarbonate |
| Mount | Integrated pole mount(included) Pole compatibility: Ø35-60 mm (Ø1.38-2.36") |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproong | IPX6 |
| Hardware | |
| Networking interfaces | (1) GbE RJ45 port |
| Button | Factory reset |
| LEDs | Power/ethernet |
| RF connections | Internal |
| Max. power consumption | 7W |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22-26VDC |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certications | FCC, IC, CE |
| Maximum throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| OS | airOS® |
| Modes | PtMP, PtP |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, constellation |
| Management interface | Dedicated management radio for quick device setup via the UISP™ Mobile app WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| Operating frequency* | 5.15 to 5.85 GHz *Depends onregulatory region. |
| Max. conducted TX power | 25 dBm |
| Management radio | 2400 - 2483.5 MHz |
| Channel bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
