Ubiquiti Networks UniFi LTE Backup
- SKU: LTE Backup
$199.00 to $279.00Select options
- Manufacturer: Ubiquiti Networks
- Installation Guide - LTE Backup: Download
- Installation Guide - LTE Backup Pro: Download
Product Information

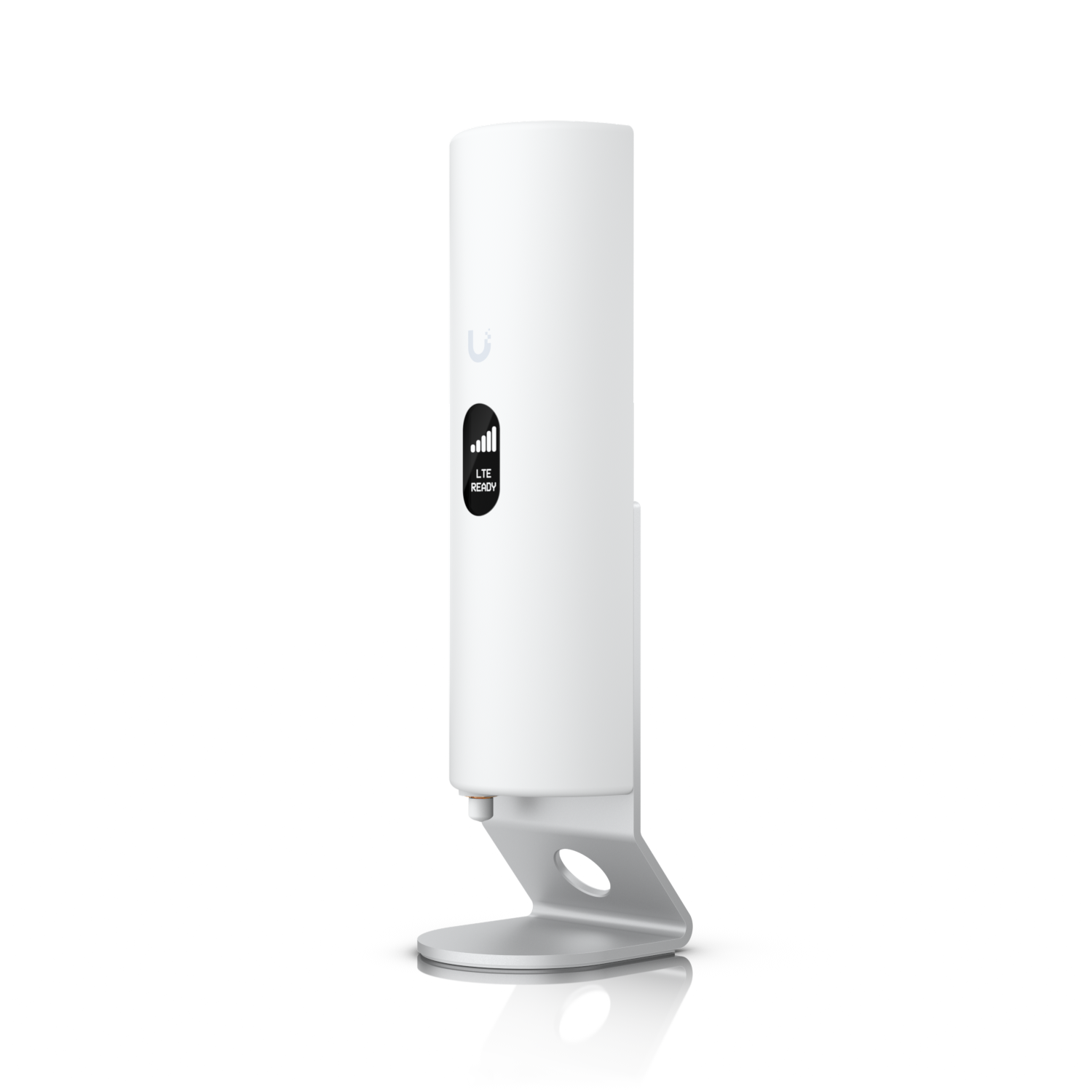

Ubiquiti Networks U-LTE
UniFi LTE Backup

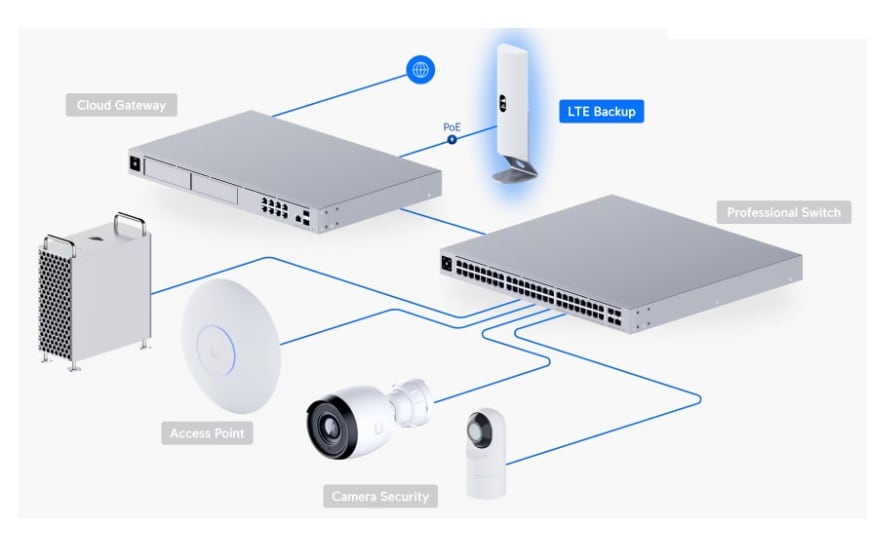

Seamless internet failover for UniFi gateways. Includes an AT&T SIM and data plan for plug-and-play deployment.
Note. Works with the AT&T network. Subscription plans are $15/month for 1 GB of data, plus $10 for each additional GB. PoE+ input required for PoE passthrough.
Features:
- Requires a UniFi Cloud Gateway or UniFi Gateway
- Embedded AT&T SIM*
- Flexible mounting
- (1) GbE PoE port**
- Powered using PoE
- RP-SMA connector for optional external antenna
- 1.54" status display
Ubiquiti Networks U-LTE-Backup Pro
UniFi LTE Backup Pro
Seamless internet failover for UniFi gateways. Bring your own AT&T nano-SIM for LTE data.
Features:
- Requires a UniFi Cloud Gateway or UniFi Gateway
- Bring your own AT&T nano-SIM for LTE data*
- Flexible mounting
- (1) GbE PoE port**
- Powered using PoE
- RP-SMA connector for optional external antenna
- 1.54" status display
Note. Works with the AT&T network. PoE+ input required for PoE passthrough.
Specifications

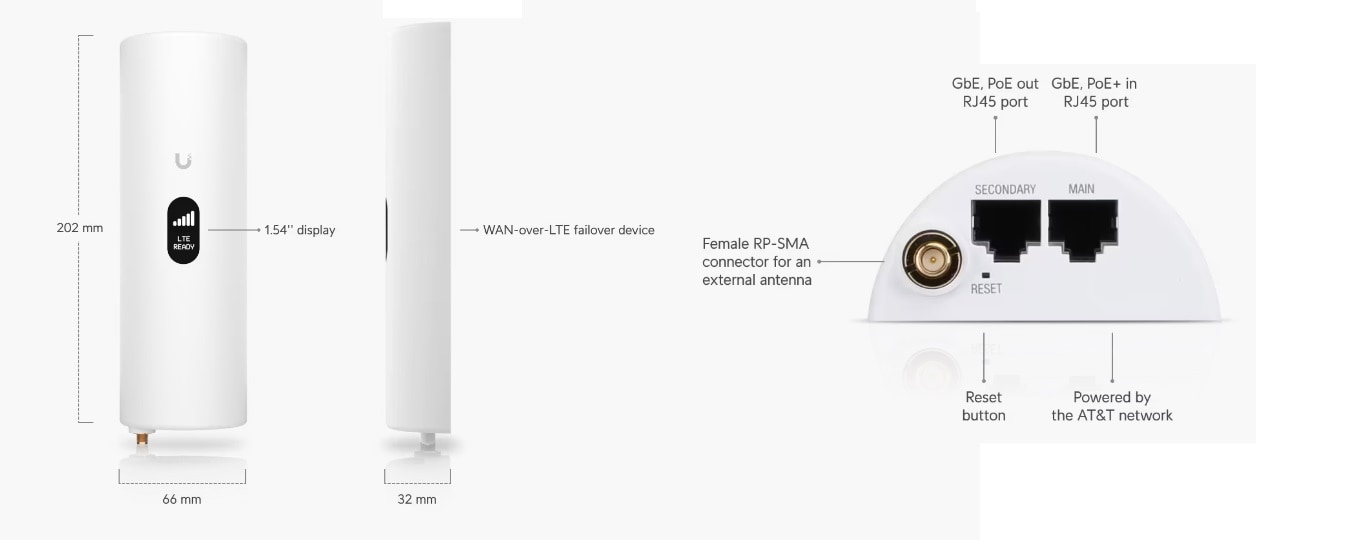

Specifications U-LTE
| Dimensions | 66 x 202.12 x 32.2 mm (2.6 x 8 x 1.3") |
| Weight | Without mount: 200 g (7.1 oz) With mount: 316 g (11.2 oz) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports LTE category 4 radio |
| Management interface | Ethernet Bluetooth |
| SIM | nano-SIM |
| LTE bands | B2, B4, B5, B12 |
| MIMO | 2 x 2 LTE Category 4 |
| Operating frequency | 2400 ‐ 2483.5 MHz |
| Power method | PoE+ (Pairs 1, 2+; 3, 6‐; Pairs 4, 5+; 7, 8‐) |
| Max power consumption | 8.5W |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44–57V DC |
| External antenna | (1) LTE antenna with RP-SMA female connector |
| LCM display | 1.54" screen |
| Mounting | Wall mount or foot stand (Included) |
| Ambient operating temperature | ‐10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, AT&T |
| Software | |
| Management application | UniFi Network: Version 6.5.55 and later |

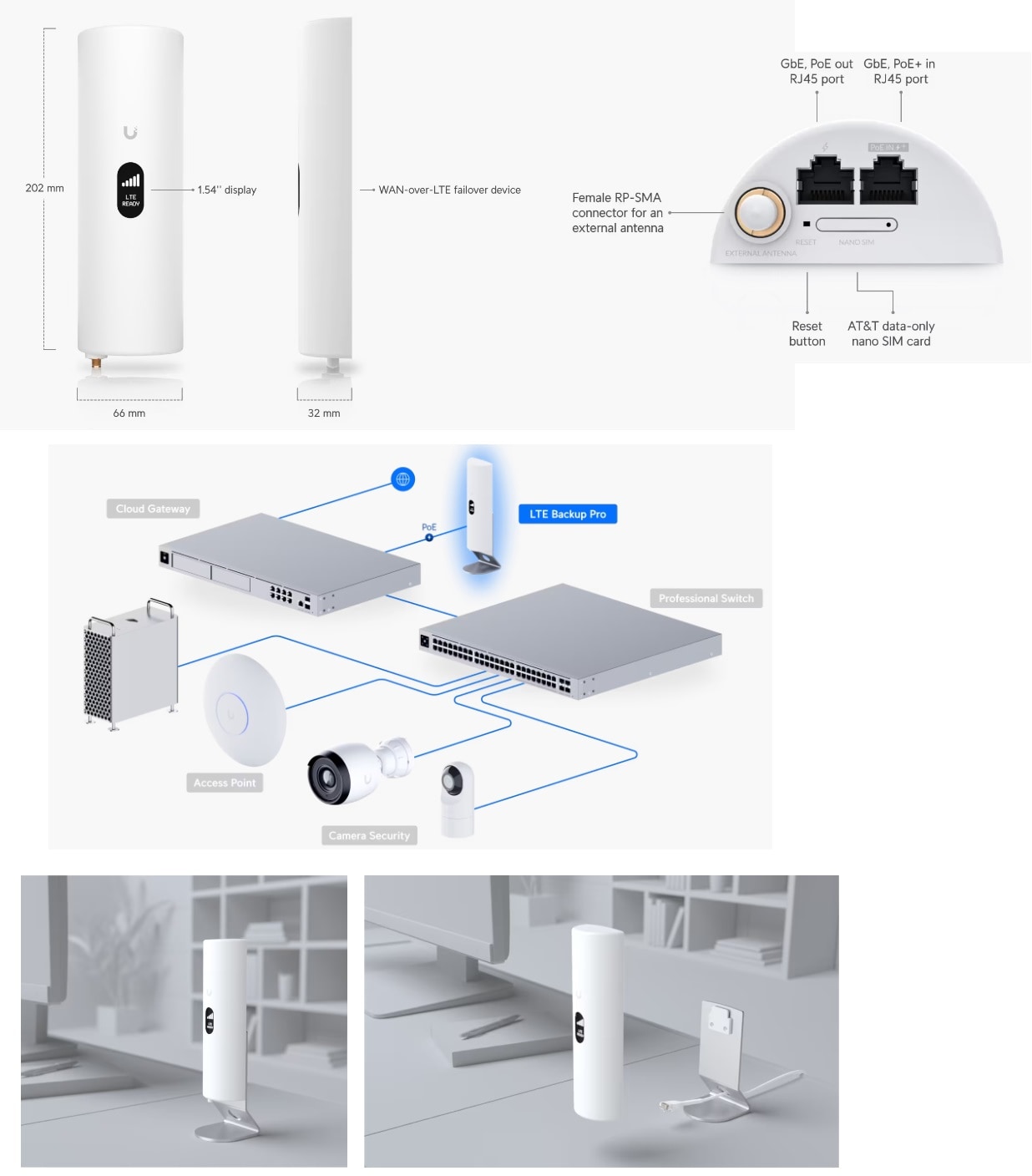

Specifications U-LTE-Backup Pro
| Dimensions | 66 x 202 x 32 mm (2.6 x 8 x 1.3") |
| Weight | Without stand: 223 g (7.9 oz) With stand: 336 g (11.9 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Stand: aluminium Wall mount: polycarbonate |
| Hardware | |
| Processor | 74 Kc MIPS processor at 775 MHz |
| Memory | 128 MB DDR2 |
| Networking interface | (2) GbE RJ45 ports LTE Category 4 radio |
| Management interface | Ethernet |
| PoE interface | (1) PoE in (PoE output not used) (1) PoE passthrough output (Requires a PoE+ switch) |
| SIM | nano-SIM* *Data-only. |
| LTE bands | B2, B4, B5, B12, B14, B66 |
| Operator | AT&T network* US only. |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter |
| Supported voltage range | 44—57V DC |
| Max. power consumption | Excluding PoE passthrough output: 8.5W |
| Max. PoE passthrough wattage per port | 15.4W* *Requires a PoE+ switch |
| MIMO | 2 x 2 LTE Category 4 |
| Throughput speeds* | Download 150 Mbps / Upload 50 Mbps * Speed and coverage depend on location and network performance. |
| Antenna | (2) Internal LTE antennas (1) Female RP-SMA connector for an external antenna (optional)* *The maximum antenna gain must not exceed 6 dBi to comply with regulation. |
| External antenna port* | Female RP-SMA connector *Please use male RP-SMA antennas to match the U LTE Backup Pro. |
| LCM display | 1.54" screen |
| Button | Factory reset |
| Mounting | Wall mount or foot stand (Included) |
| Ambient operating temperature | -10 to 60° C (-14 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Management application | UniFi Network: Version 7.2.85 and later |
