U-Cable-Patch-RJ45_MATRIX
- SKU: U-Cable-Patch-RJ45
$2.00 to $92.00Select options
- Manufacturer: Ubiquiti Networks
Product Information

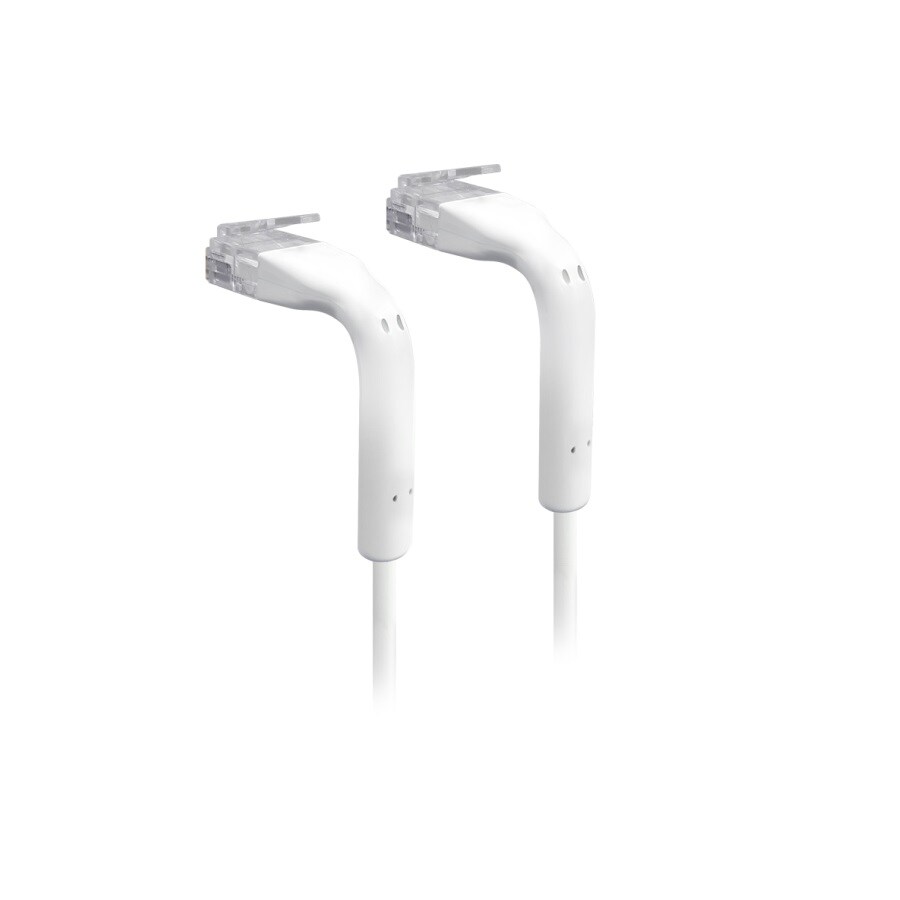

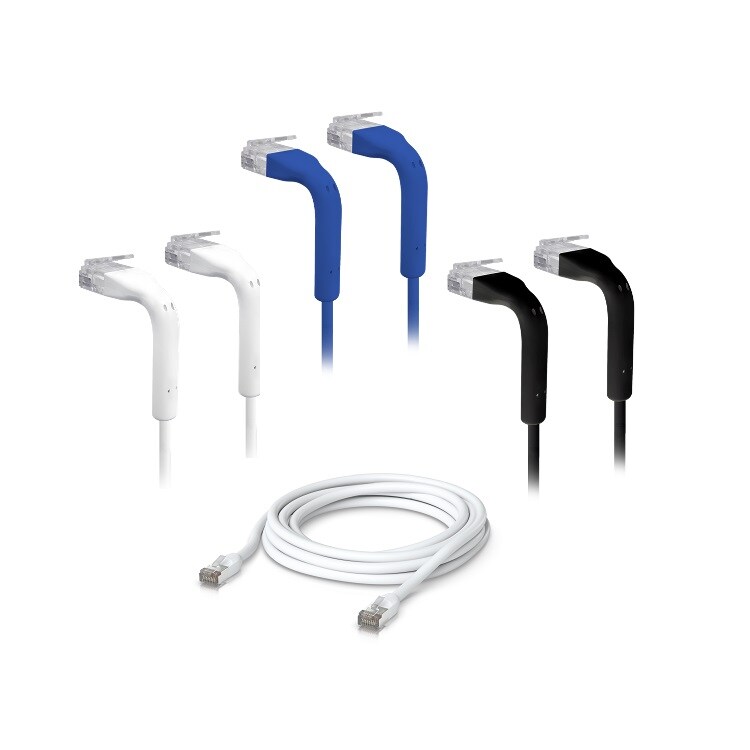

Ubiquiti UniFi Patch Cable
Specifications
Specifications UniFi Indoor Patch Cable
| Cable length | 0.1 / 0.3 / 1 / 2 / 3 / 5 / 8 m (0.3 / 1 / 3.3 / 6.6 / 9.9 / 16.4 / 26.3 ft) |
| Cable color | White, Blue, Black |
| Jacket diameter | 3 mm (0.1") |
| Cable type | Category 6 |
| Connector | (2) Bendable booted RJ45 |
| Environment | Indoor |
| Standards | TIA-568-B.2 |
Specifications UniFi Outdoor Patch Cable
| Weight | 60 / 90 / 125 / 200 / 315 g (2.12 / 3.17 / 4.41 / 7.05 / 11.11 oz) |
| Cable length | 1 / 2 / 3 / 5 / 8 m (3.28 / 6.56 / 9.84 / 16.40 / 26.25 ft) |
| Cable color | White |
| Cable type | Category 5e |
| Shielding type | STP |
| Flame rating | VW-1 (UL1581) |
| UV resistance | ASTM G 151/154 |
| Conductor wire gauge | 24 AWG |
| Conductor type | Stranded copper |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket diameter | 6 mm (0.24") |
| Bend radius | Min. 24 mm (0.94") |
| Storage temperature | -30 to 75°C (-22 to 167°F) |
| Installation temperature | -20 to 60°C (-4 to 140°F) |
| Ambient operating temperature | -40 to 80°C (-40 to 176°F) |
| Anti-crosstalk divider | No |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
