Ubiquiti Networks Door Closer
- SKU: UACC-DoorCloser-US
$129.00
- Manufacturer: Ubiquiti Networks
Product Information

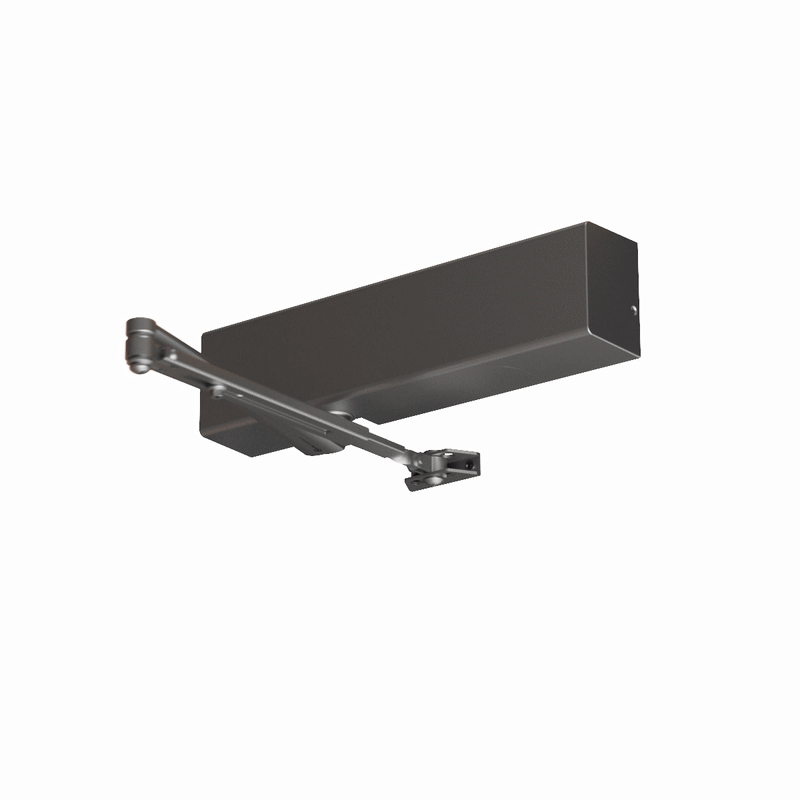

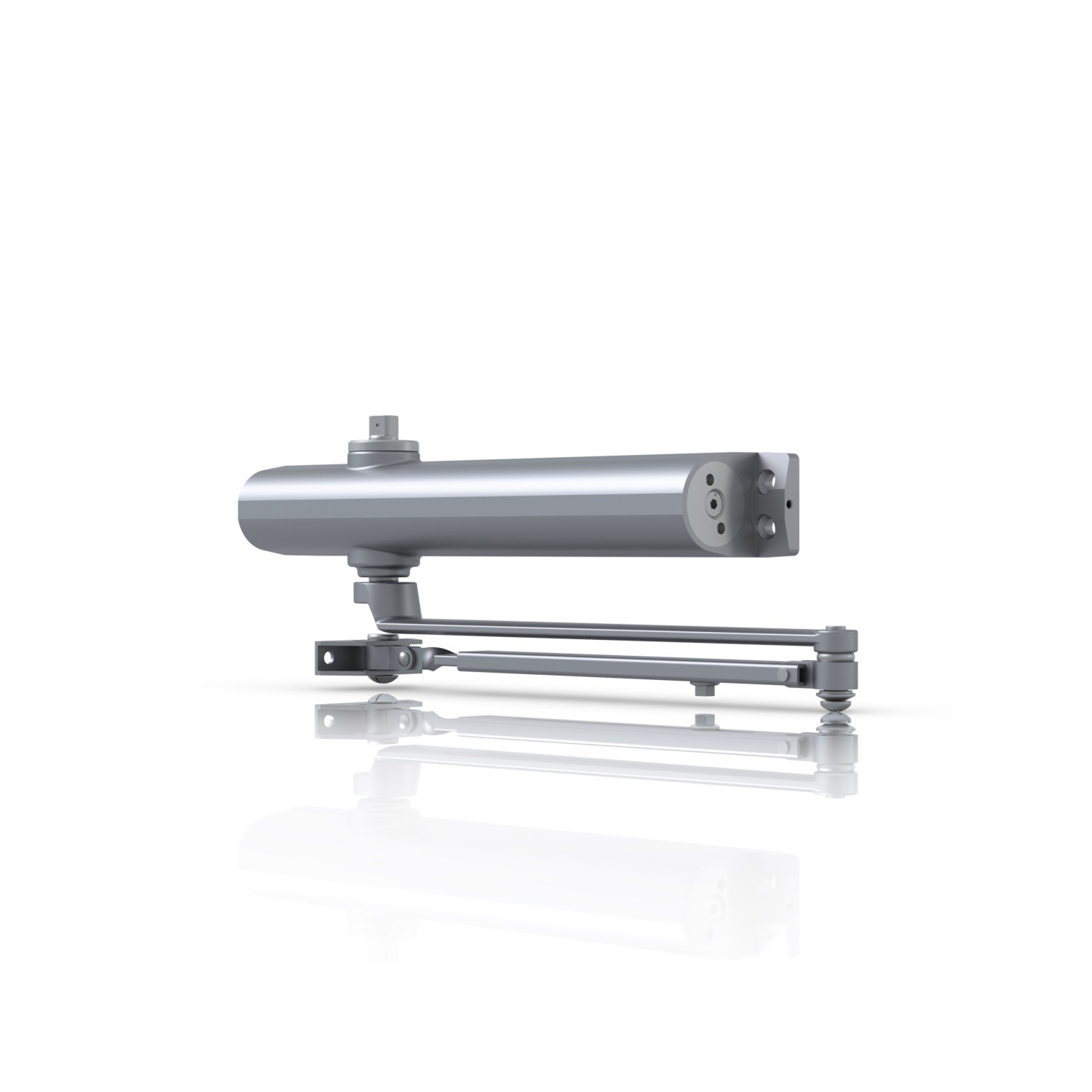

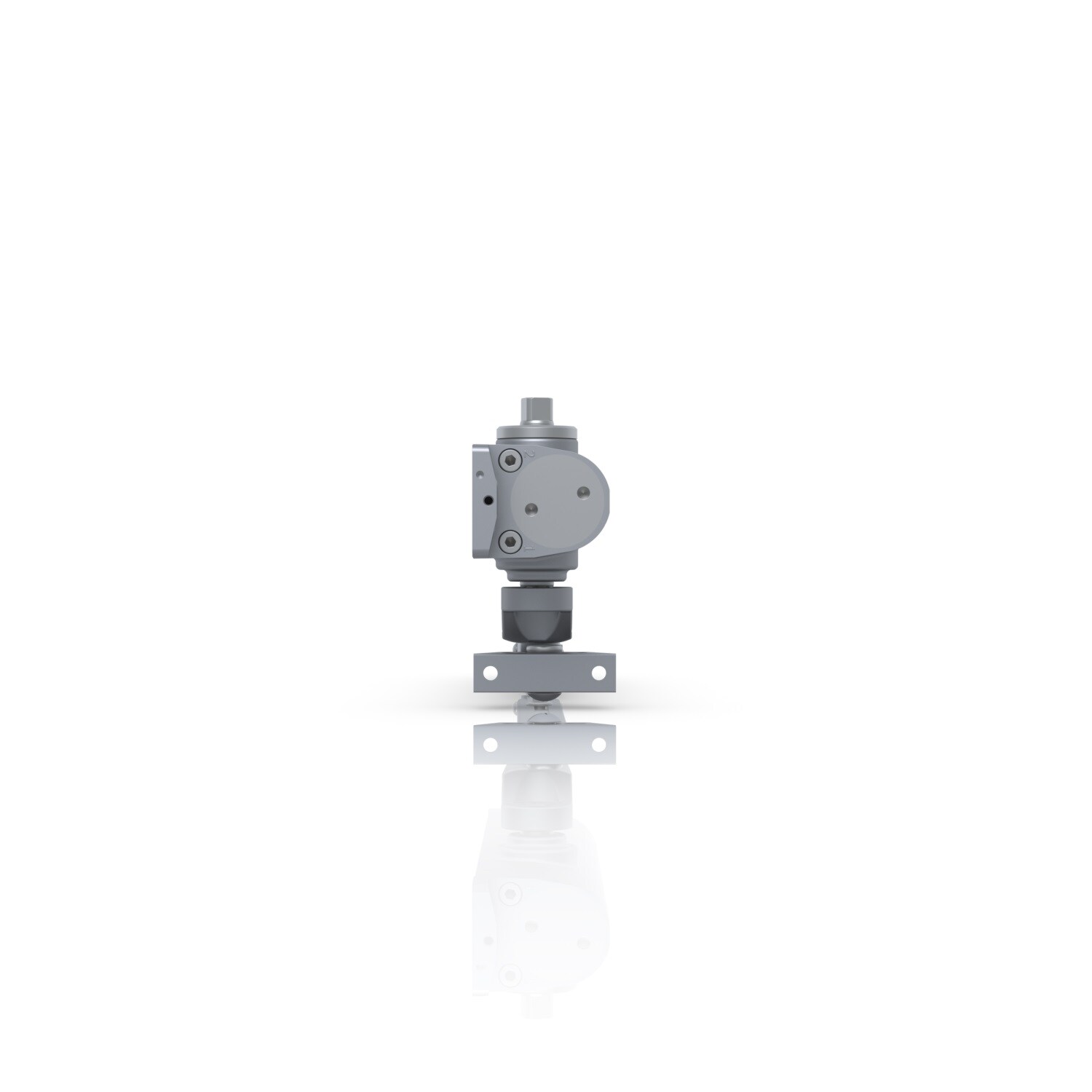

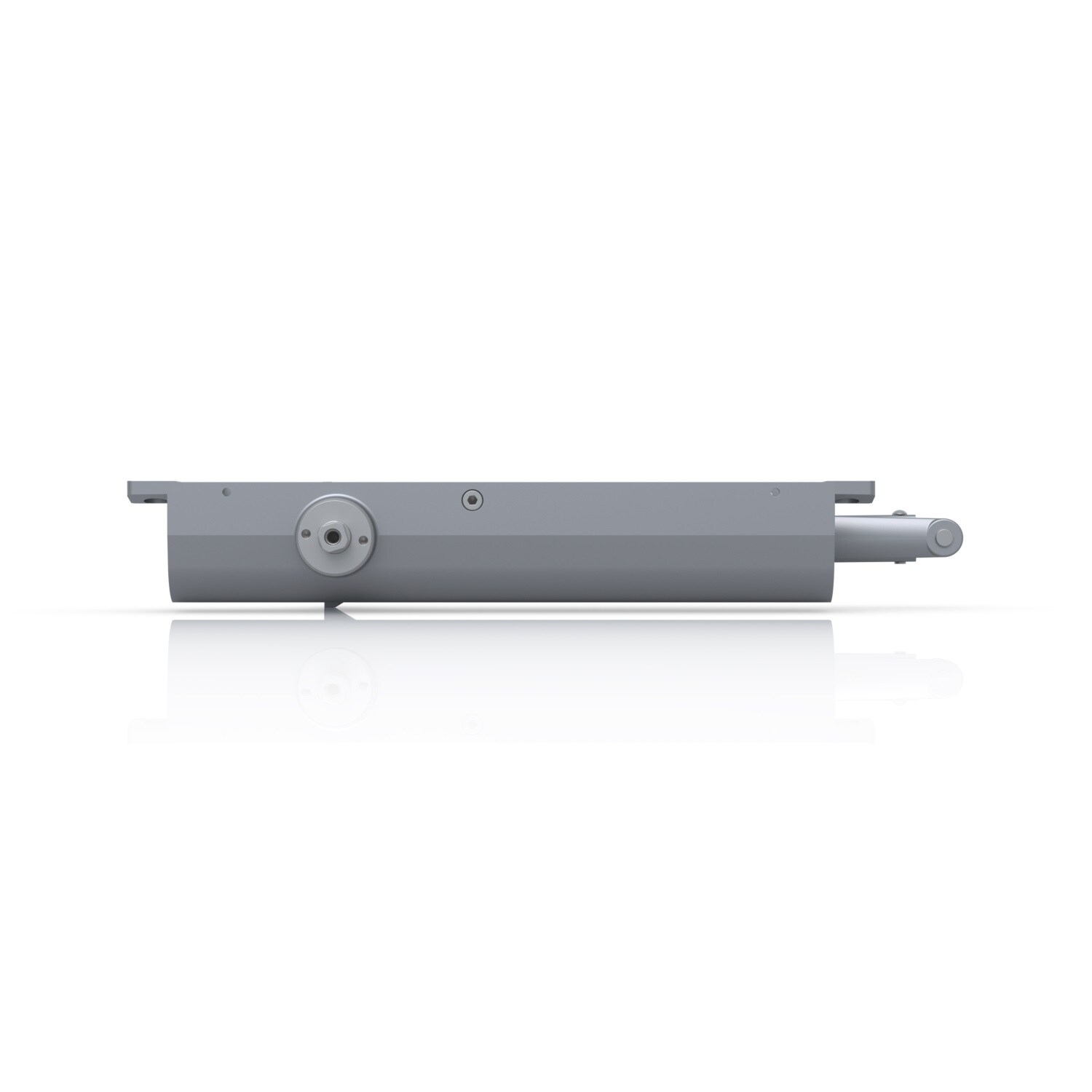

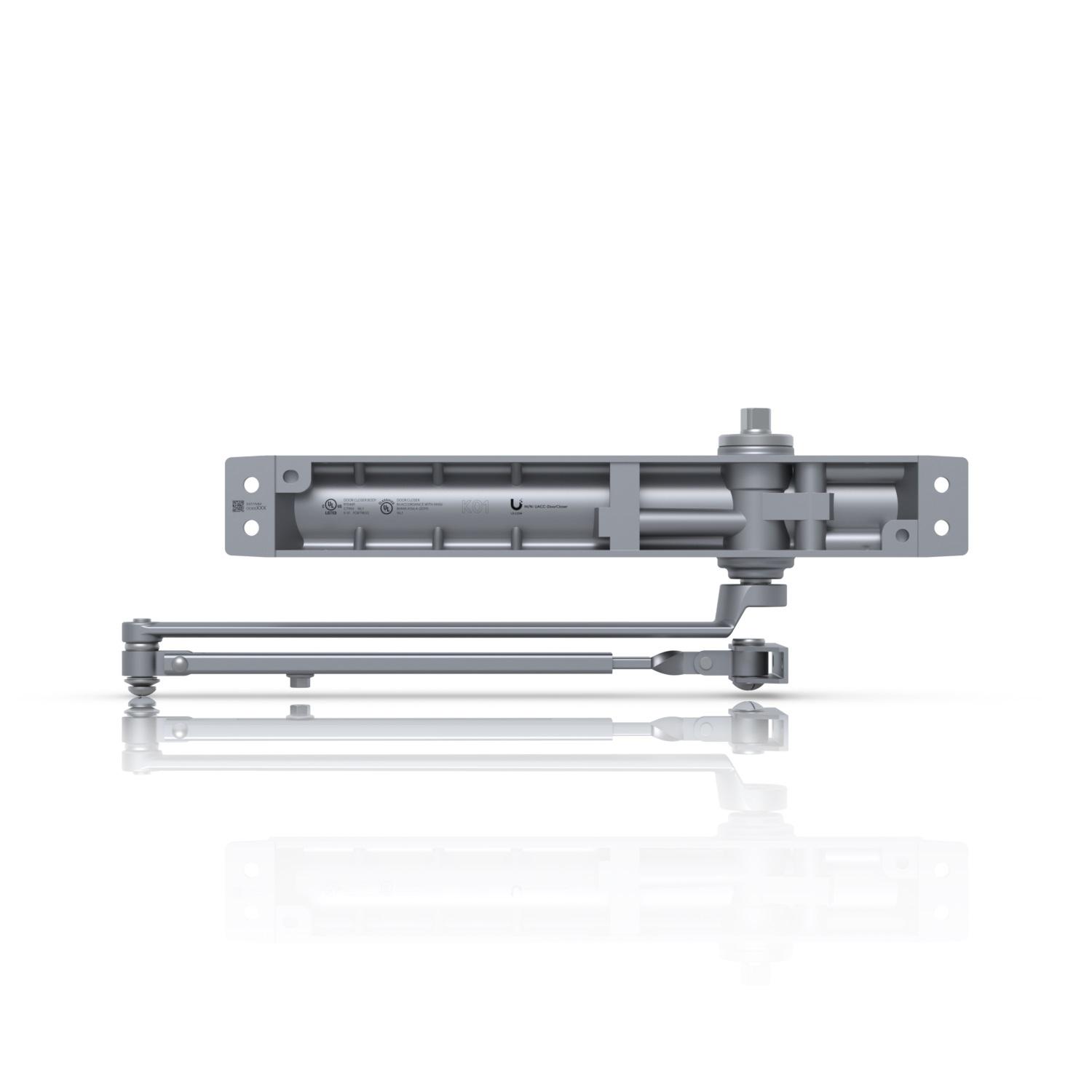

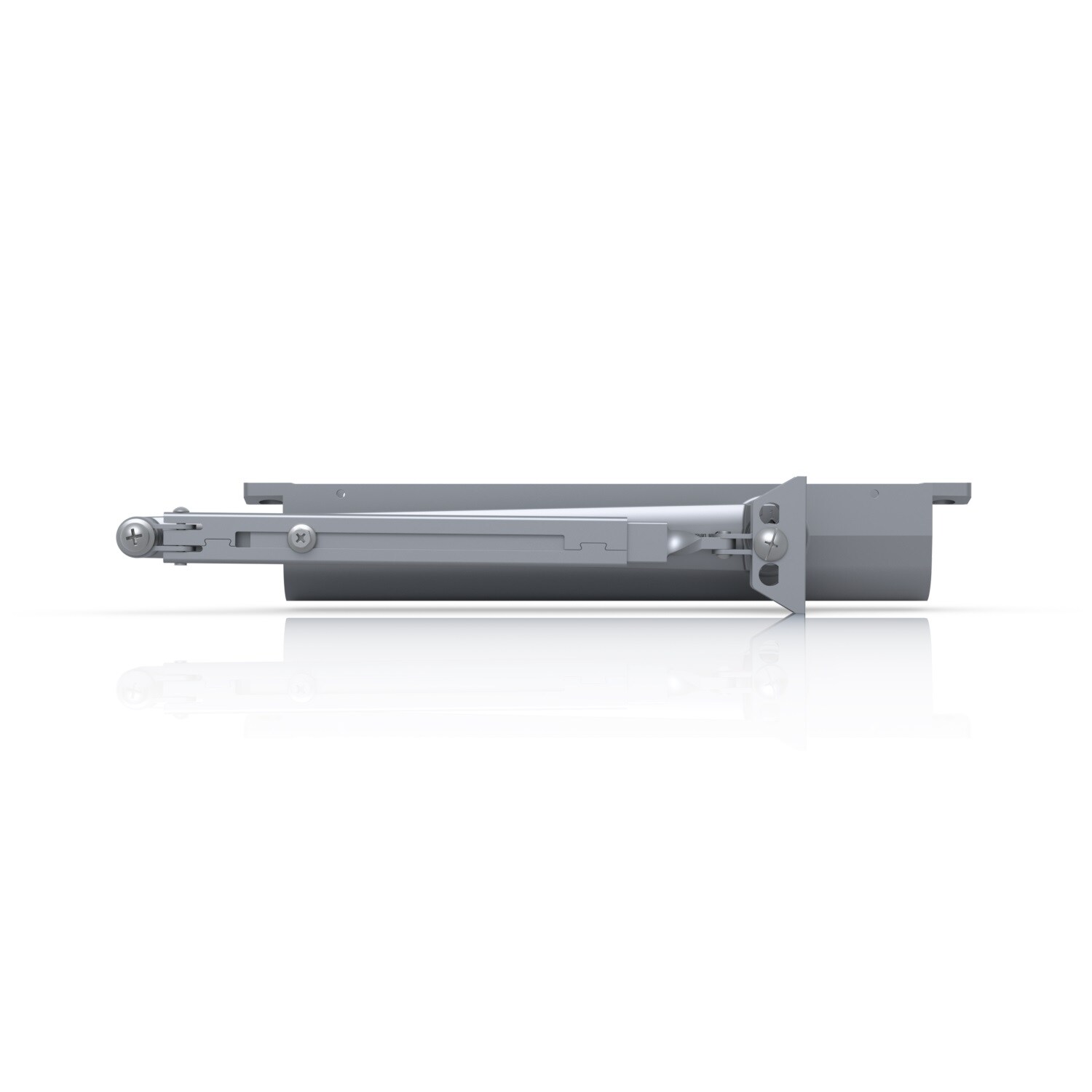

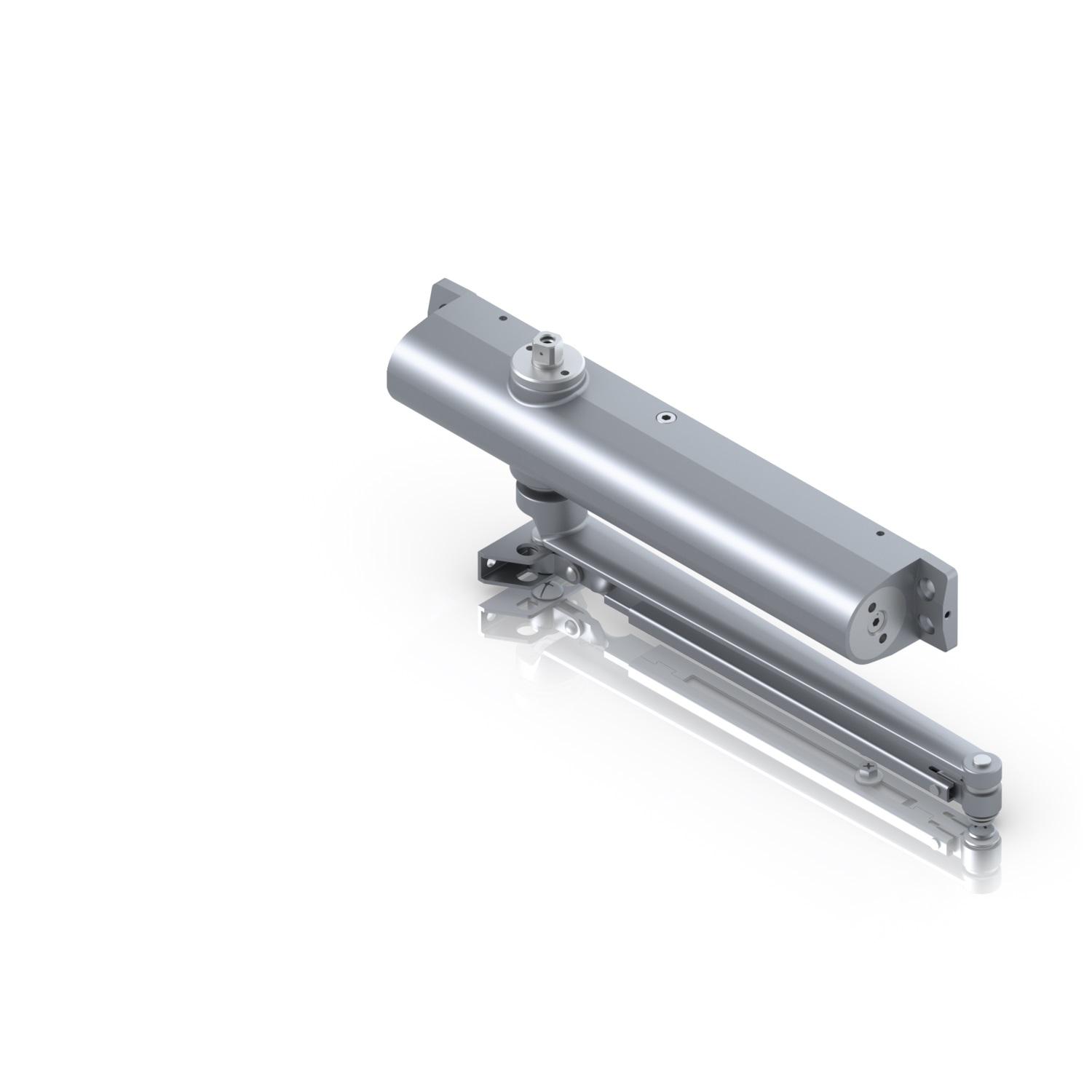

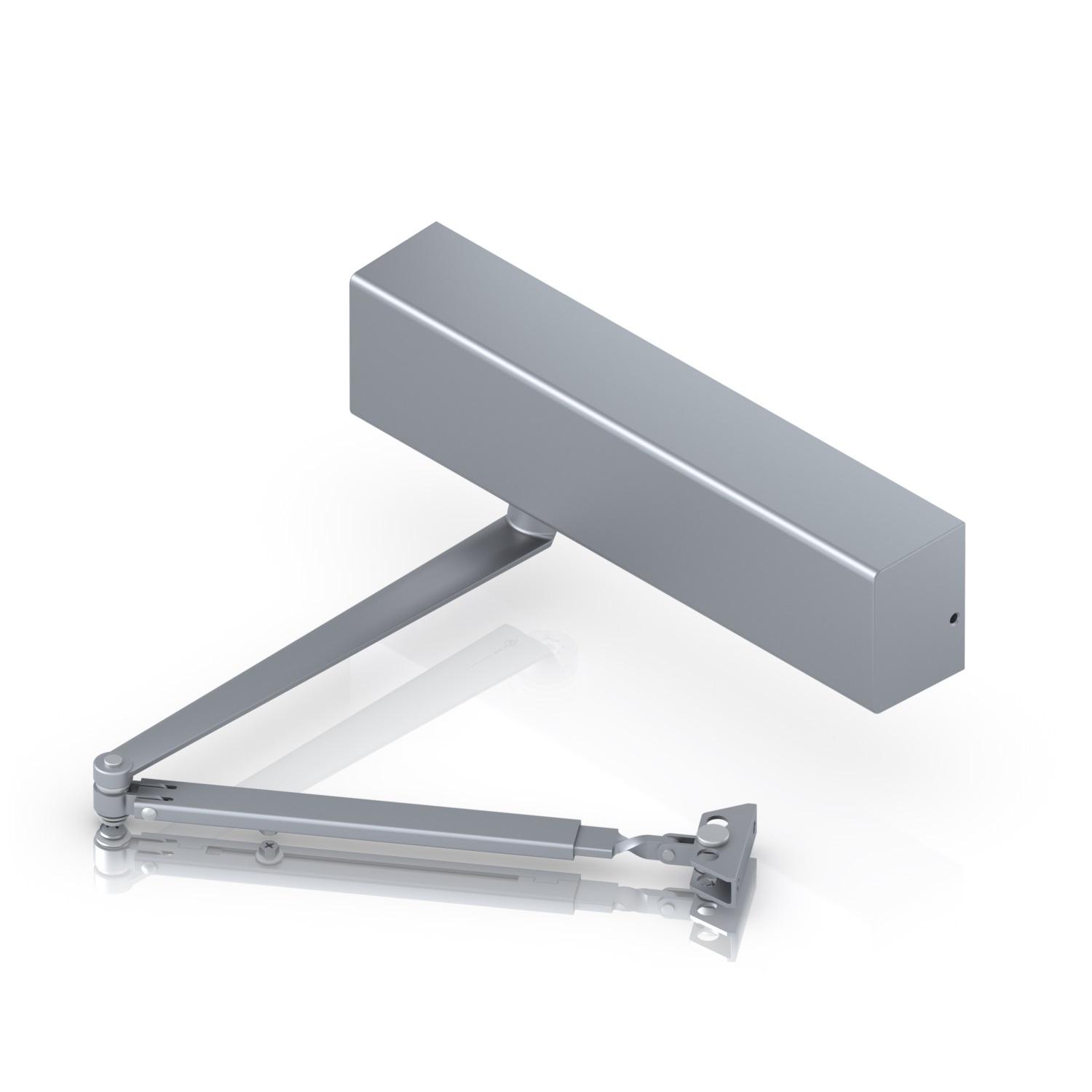

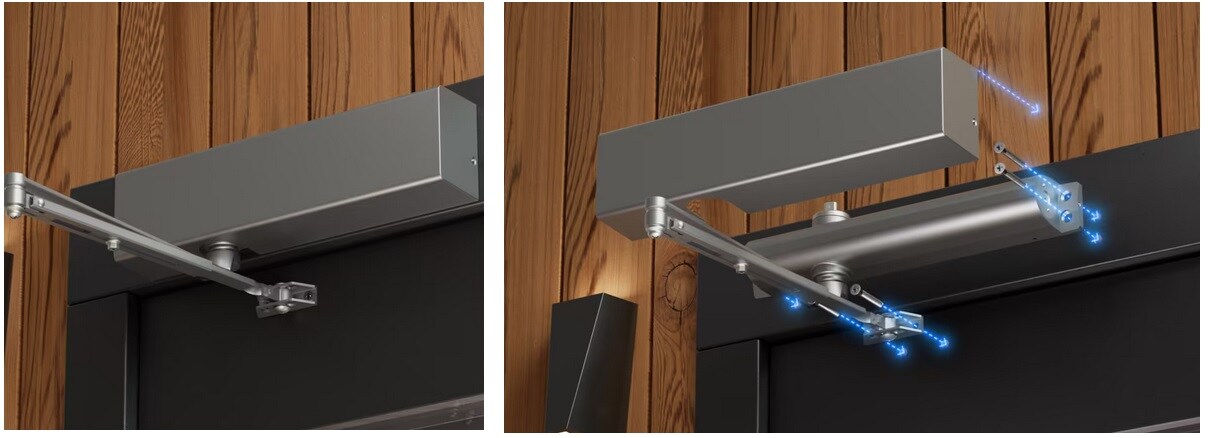

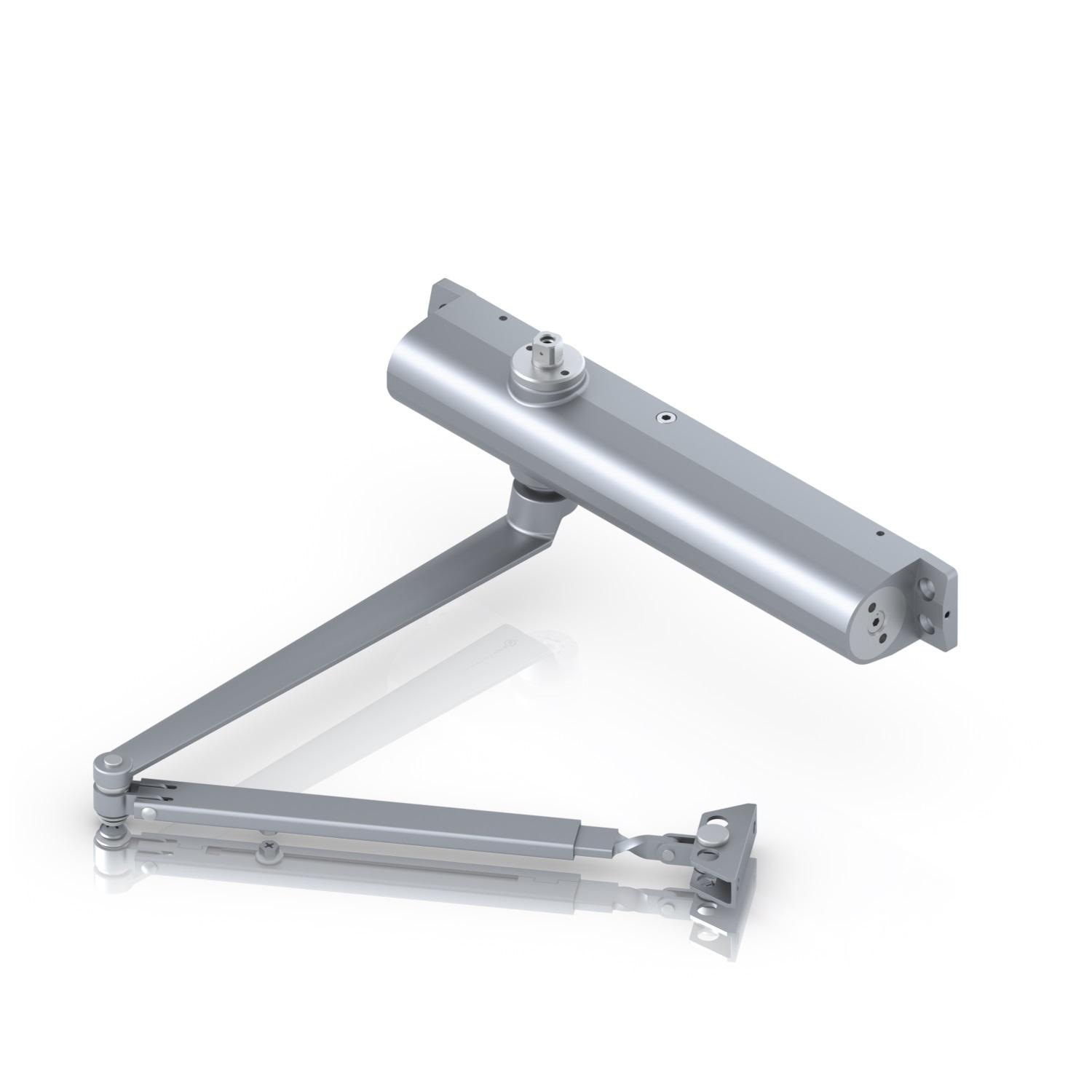

Ubiquiti Door Closer (US Version)
A mechanical door closer that ensures controlled closure for safety and convenience.
Features:
- Adjustable power size 1~6
- Adjustable closing and latching speed
- Adjustable opening (back-check) speed
- Surface mount
- Non-handed installation
Specifications
Specifications UACC-DoorCloser-US
| Dimensions | Lock body: 328 x 88.6 x 53.5 mm (12.9 x 3.5 x 2.1") |
| Weight | 3.3 kg (7.3 lb) |
| Enclosure material | Lock body: aluminum alloy, carbon steel, hot-rolled steel Deco cover: acrylonitrile butadiene styrene |
| Max. door opening angle | 180° |
| Hardware | |
| Power size | 1-6 |
| Application range | Standard door mount on the pull side Top jamb mount on the push side Parallel arm bracket mount on the push side (Size 1-5 only) |
| Standard door/Top jamb mount (Max. door size) | 30”(762 mm): Size 1 Interior / Size 3 Exterior 36”(914 mm): Size 2 Interior / Size 4 Exterior 42”(1067 mm): Size 3 Interior / Size 5 Exterior 48”(1219 mm): Size 4 Interior / Size 6 Exterior |
| Parallel arm bracket mount (Max. door size) | 30”(762 mm): Size 1 Interior / Size 3 Exterior 36”(914 mm): Size 2 Interior / Size 4 Exterior 42”(1067 mm): Size 3 Interior / Size 5 Exterior 48”(1219 mm): Size 4 Interior / — |
| Certifications | UL 228, UL 10C, ANSI/BHMA A156.4-(2019) Grade1, ANSI A117.1 ADA |
