Ubiquiti Networks PoE Over 2-Wire Retrofit Extender
- SKU: UACC-Retrofit-PoE-2Wire
$99.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

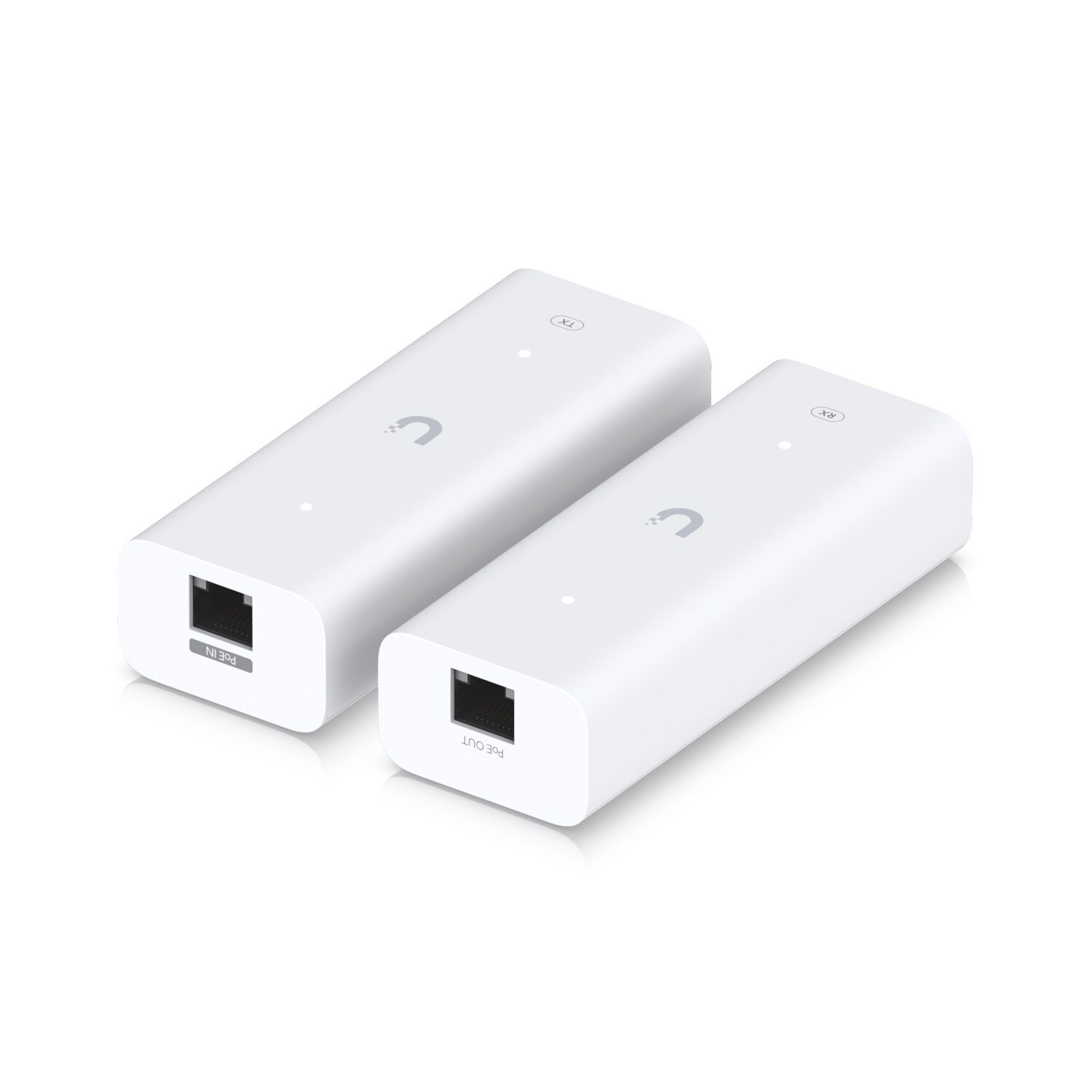

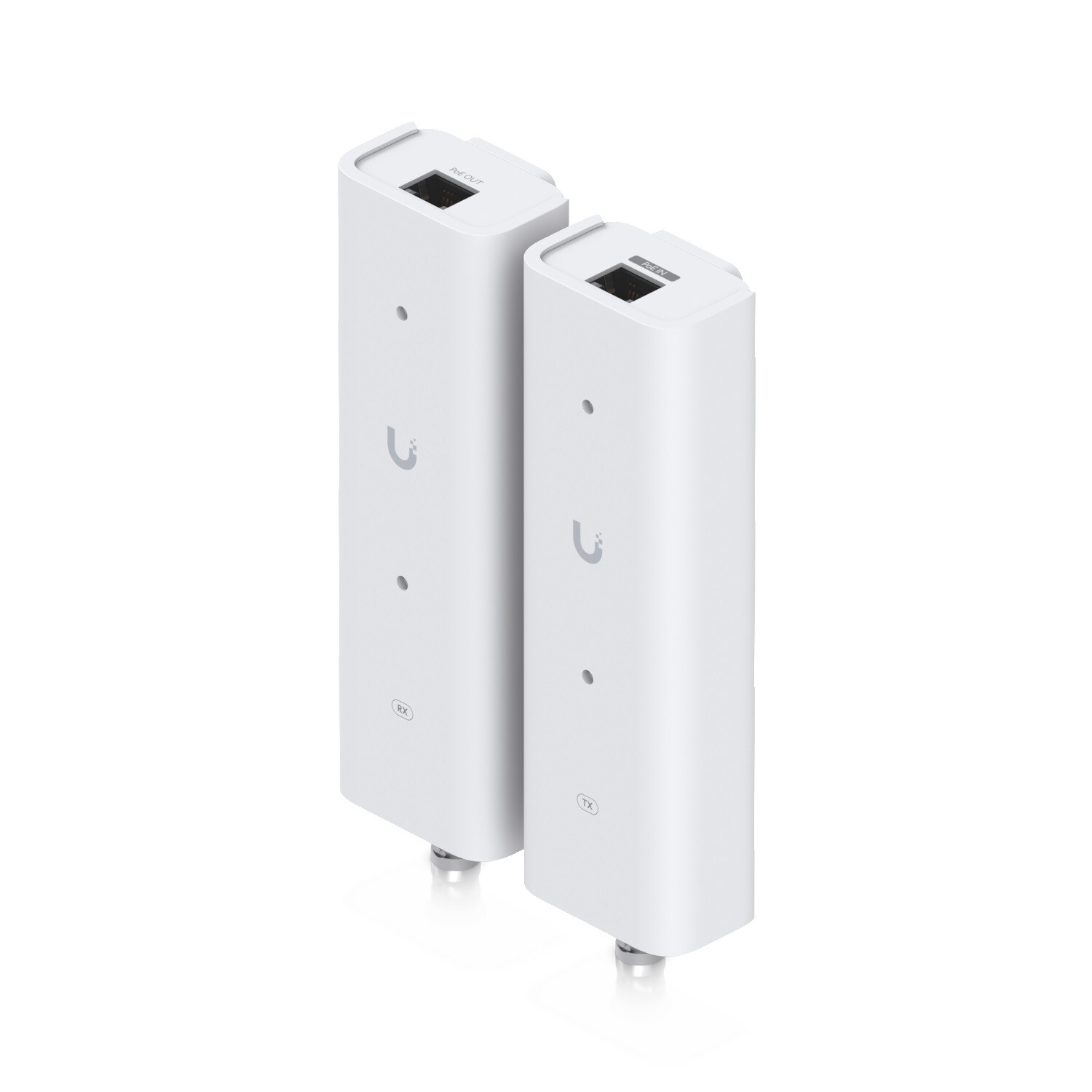

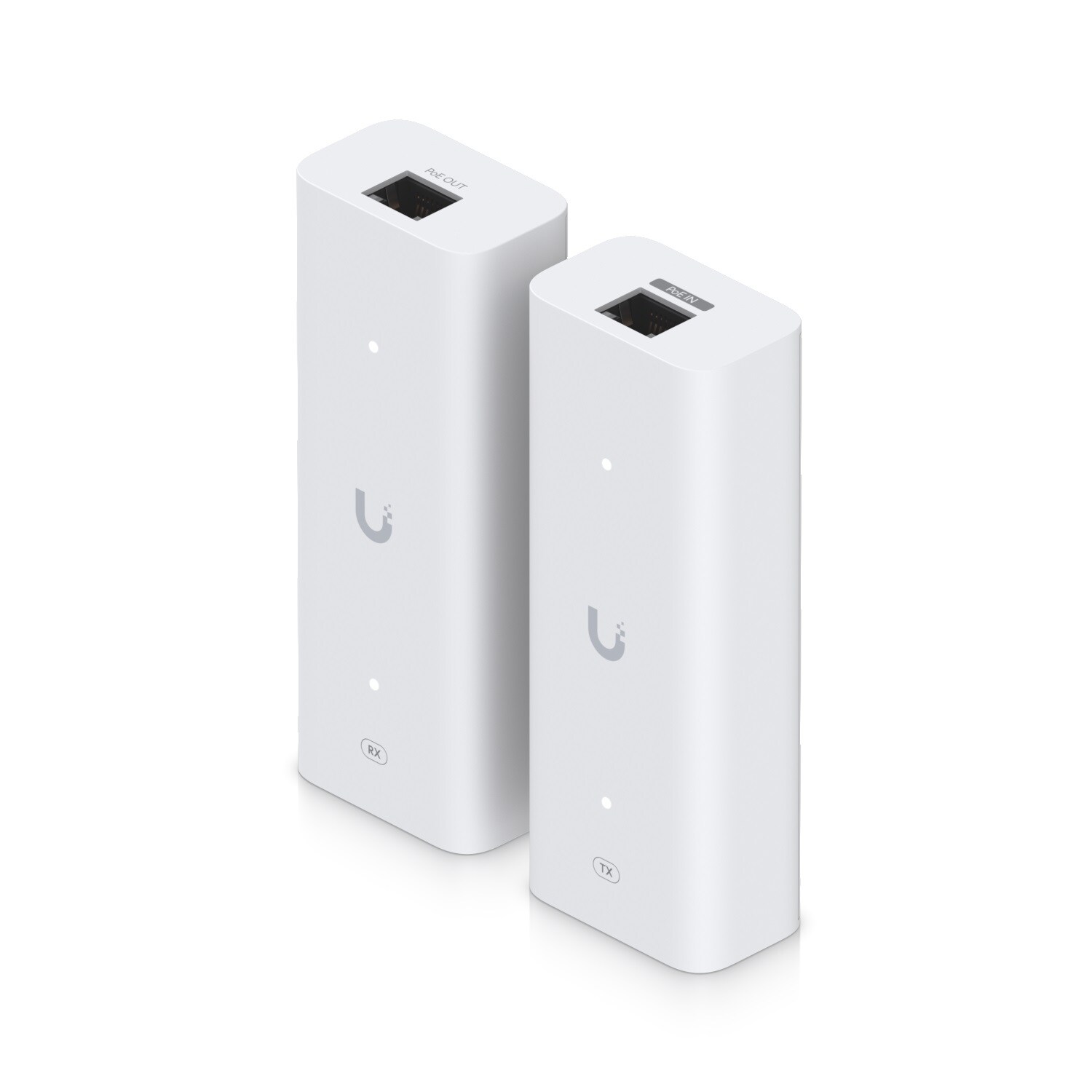

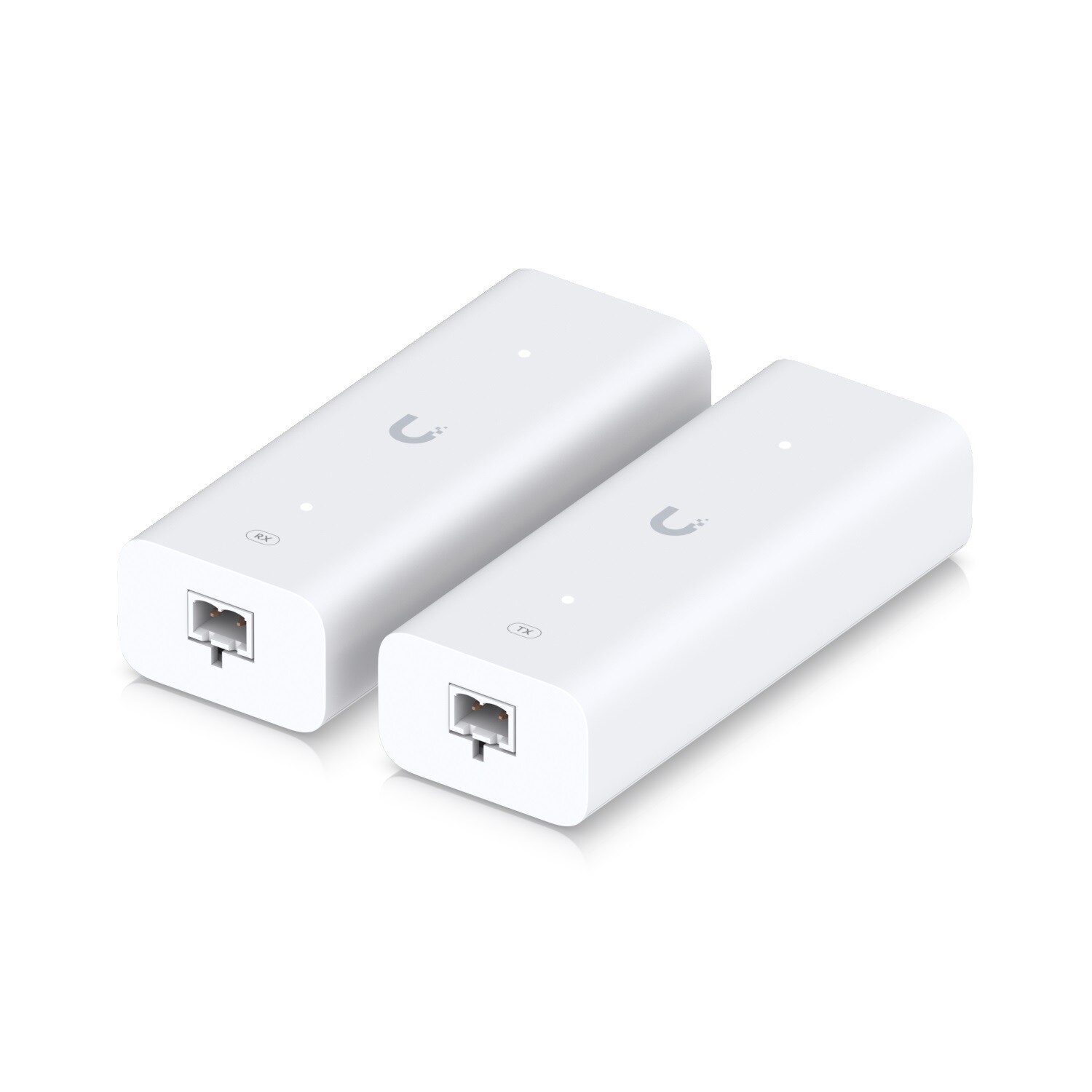

Ubiquiti PoE Over 2-Wire Retrofit Extender

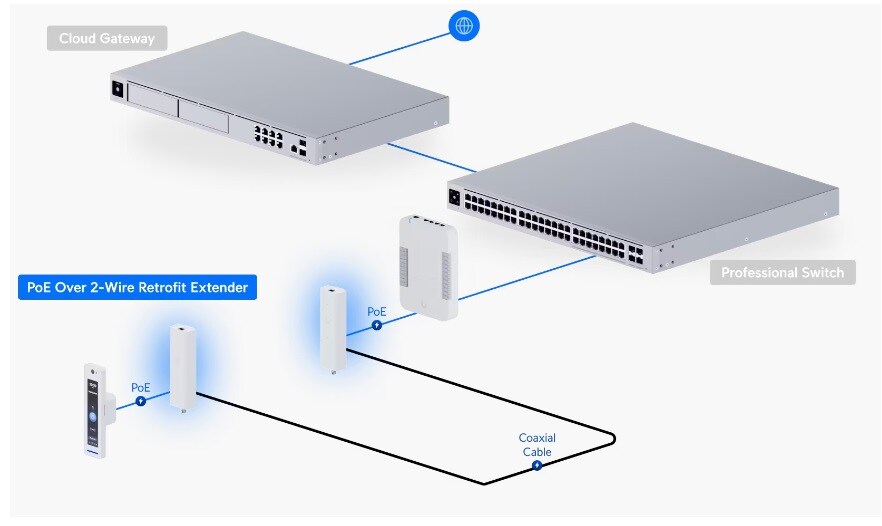

A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.
Transmitter:
- (1) PoE++ input
- (1) 2-wire output
- (1) 2-wire to BNC adapter
Receiver:
- (1) PoE/PoE+ output
- (1) 2-wire input
- (1) 2-wire to BNC adapter
Specifications
Specifications UACC-Retrofit-PoE-2Wire
| Dimensions | PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") |
| Weight | PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz) |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |
| Coaxial connector | BNC female |
| Hardware | |
| Networking interface | (1) 10/100 MbE (1) Homeplug AV |
| Power method | PoE++ |
| PoE input | (1) PoE++, 50V DC, 1.2A |
| PoE output | (1) PoE+, 48V DC, 0.6A |
| Max. power consumption | 3W (Without PoE output) |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| LED | White |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
